NovaStar - H15 Master

NovaStar - H15 Master

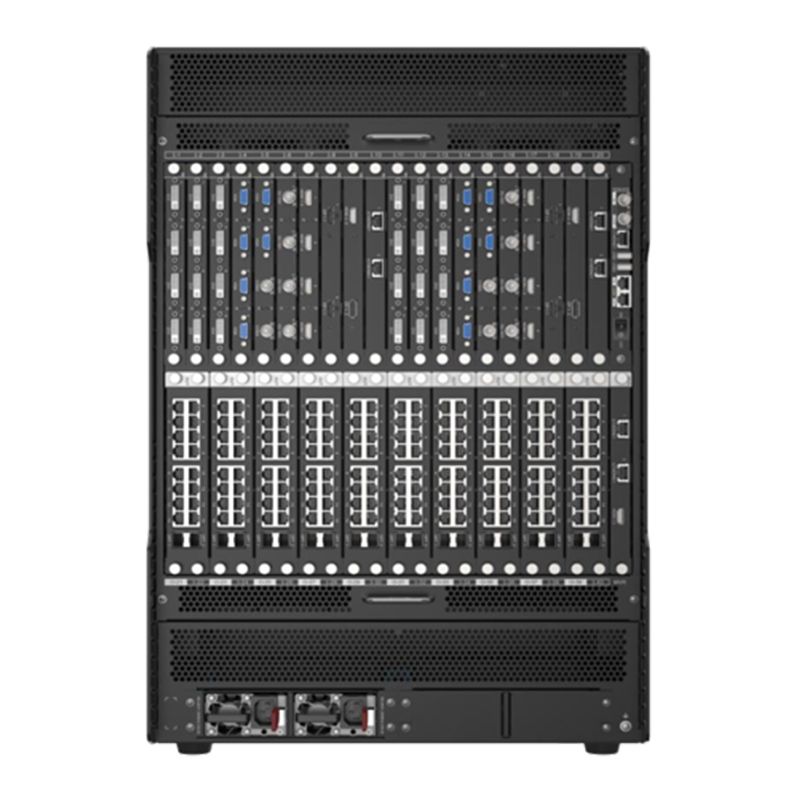

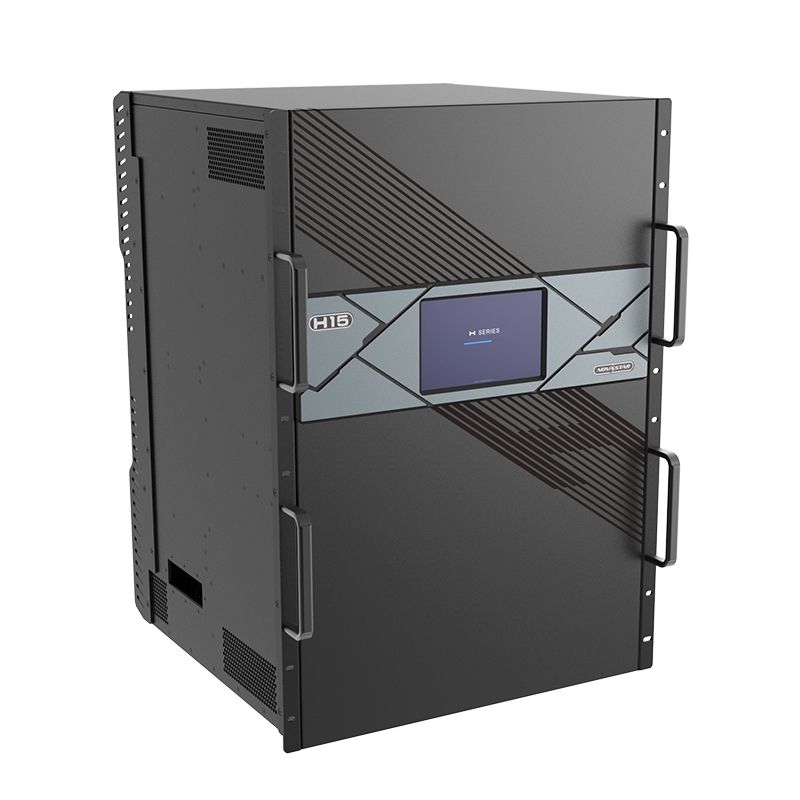

The H Series from Novastar is intended to be used in fixed installations with large and fine pitch LED screens. The H15 is an all-in-one solution which combines video splicing features with LED processing in one housing. The modular design works with hot-swappable plug-in modules that allow for a flexible configuration of input and output cards. A variety of connector modules is available providing the industry-standard input connectors, so the system can be optimised for the intended installation.

The H15 is based upon a powerful hardware FPGA system architecture, providing stable and highly efficient operation. It supports 10-bit video sources and processing and 4 K high-definition in- and outputs. Two kinds of LED 4 K sending cards are available, allowing for backup connections as well as ultra-long-distance transmission. The H15 supports multi-screen and multi-layer management, as well as in- and output EDID management and monitoring. With its browser/server control architecture it supports cross-platform, cross-system access and control from within Windows, Mac, iOS, Android, and Linux. Even online collaboration of multiple users is supported.

Features

• Supports up to 130,000,000 pixels, 30 input cards, and 10 output cards
• Supports redundant power supply
• HDR10, HLG, and 10-bit processing
• Web Control

Inputs

• RS-232: 1
• Ethernet speed: 1 Gbit/s
• Input Slots: 30

Outputs

• Output Slots: 10

Software Specifications

• Control Software: Novastar LCT

Extra Features

• Scaling Function: Yes
• Crop Settings: Yes
• Layers: 160
• GenLock: In & Out

Control and Programming

• Display: LCD
• Maximum Loading Capacity: 130 Mpx
• Control Options: Ethernet, RS232

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 900 W
• Power Connector In: IEC
• Data Connector In: RJ45
• Data Connector Out: RJ45

Mechanical Specifications

• Width (Including Handles): 483 mm
• Width (Without Handles): 440 mm
• Height (Including Handles): 683 mm
• Depth (Including Handles): 533 mm
• Weight: 41.1 kg
• Rack Units: 15 U
• IP Rating: IP20 (indoor use only)
• Colour: Black, Gray

Thermal Specifications

• Maximum Ambient Temperature: 45 °C
• Operating Humidity: 0-80 %rH

Included Items

• Included Cables: CAT-5 Cable, HDMI-HDMI cable, IEC cable
