NovaStar - H_4xHDBase input card

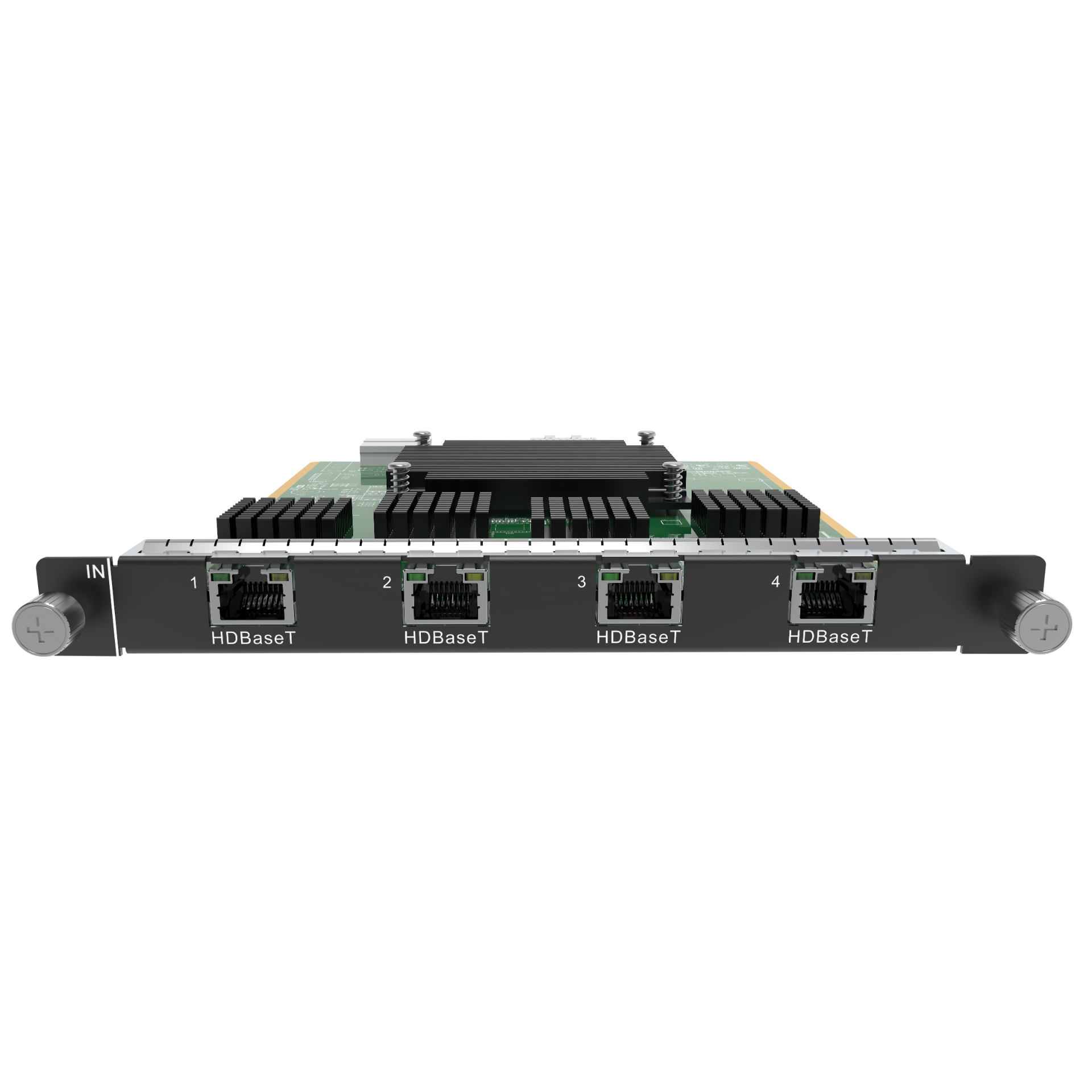

The Novastar H Series 4x HDBaseT input card has four RJ45 Gigabit Ethernet ports that support single and dual link input modes and accompanied audio. In single link mode, all four connectors are available for input and each connector supports a maximum resolution of 1920 x 1080 @ 60 Hz. Custom resolution has a maximum width of 2560 pixels (2560 x 983 @ 60 Hz) and a maximum height of 2560 pixels (884 x 2560 @ 60 Hz). In dual link mode, connectors 2 and 4 are available for input with each connector supporting a maximum resolution of 3840 x 2160 @ 30 Hz. Custom resolution in this mode has a maximum width of 3840 pixels (3840 x 1202 @ 60 Hz) and a maximum height of 3840 pixels (1092 x 3840 @ 60 Hz). The card is HDCP 1.4 compliant and the status LEDs indicate if an input signal is present.
Features
- Supports single and dual link inputs
- 4x RJ45 Gigabit Ethernet ports
- HDCP 1.4 compliant
Inputs
- HDBaseT: 1
- Input Slots: 1
Control and Programming
- Maximum Input Resolution: 1920 x 1080, 3840 x 2160
Electrical Specifications and Connections
- Data Connector In: RJ45
Mechanical Specifications
- Weight: 0.5 kg
- IP Rating: IP20 (indoor use only)
- Colour: Black
| Merk | NovaStar |
|---|
