NovaStar - H_4xHDMI input card

NovaStar - H_4xHDMI input card

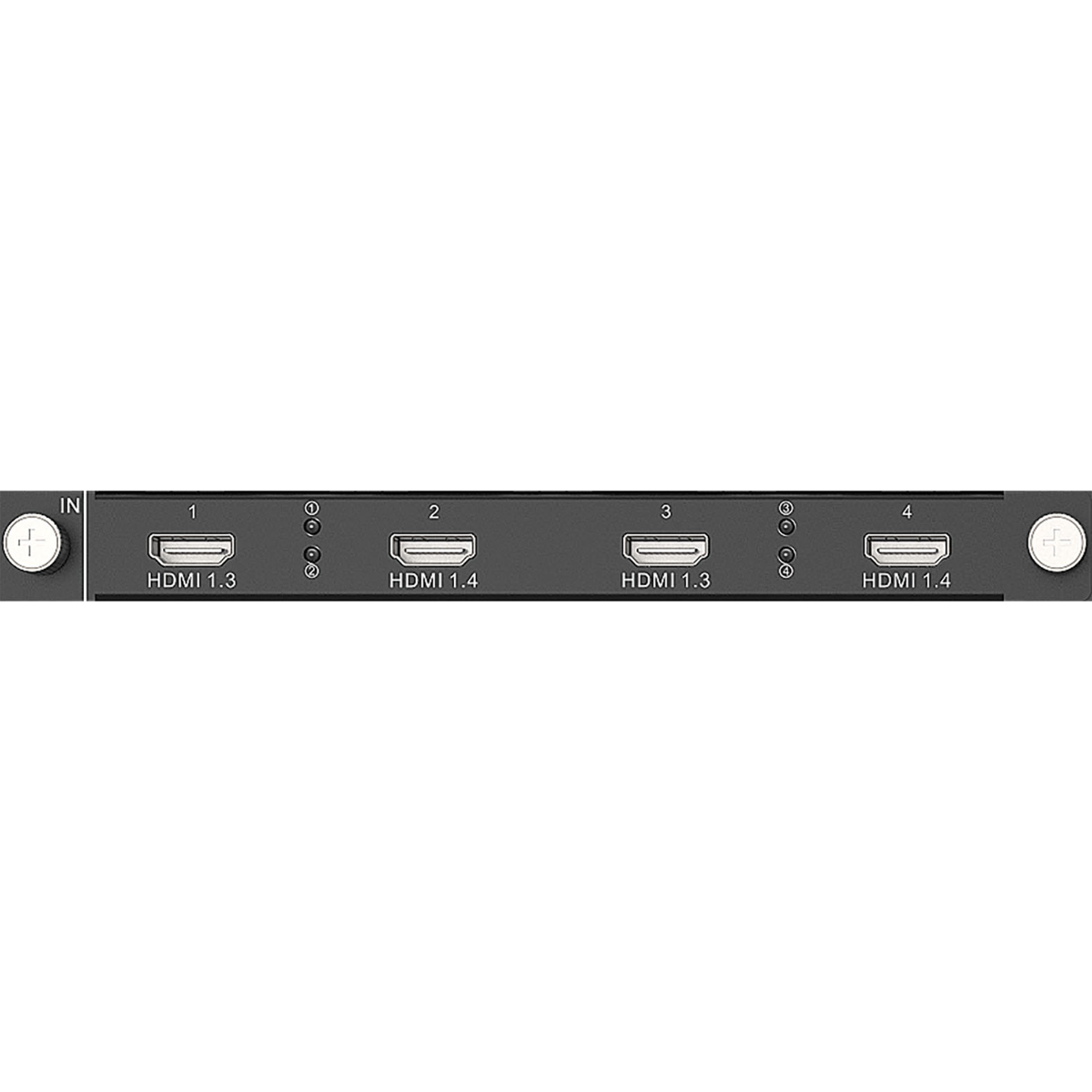

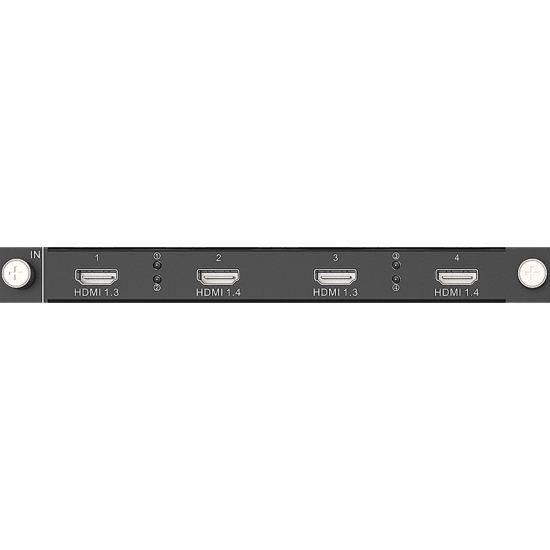

The H Series 4x HDMI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. If four HDMI signals are connected, the maximum resolution is 2048x1152 @60 Hz per input, with custom resolutions of up to a maximum of 2560x972 or 884x2560 @60 Hz. If only two HDMI1.4 inputs are used, each input supports resolutions of up to 3840x1080 @60 Hz, and custom resolutions of up to 4096x1124 or 1024x4095 @60 Hz. Four status LEDs indicate whether the input signal is valid.

Features

• Supports HDMI 1.3 and 1.4
• Supports 10-bit input source
• Four status LEDs
• HDCP 1.4 compliant

Inputs

• HDMI 1.3: 2
• HDMI 1.4a: 2
• Input Slots: 1

Control and Programming

• Maximum Input Resolution: 2048 x 1152, 3840 x 1080

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
