NovaStar - H_1xHDMI2.0+1xDP1.2 input

NovaStar - H_1xHDMI2.0+1xDP1.2 input

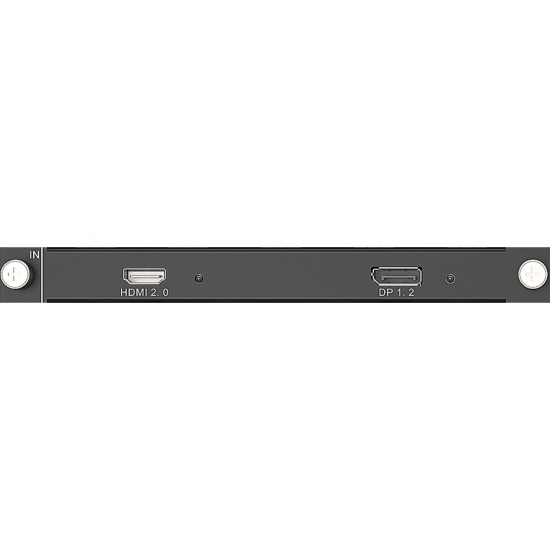

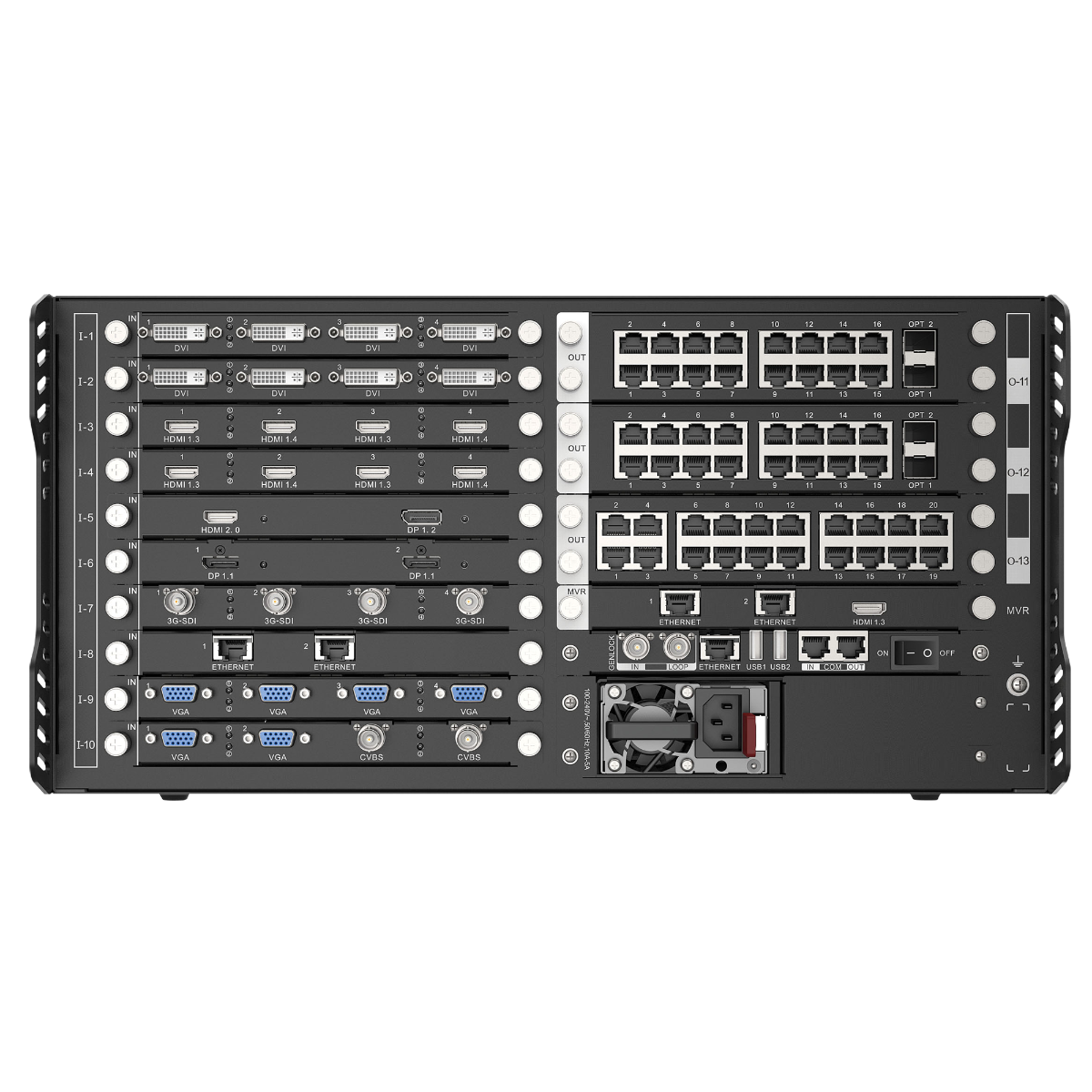

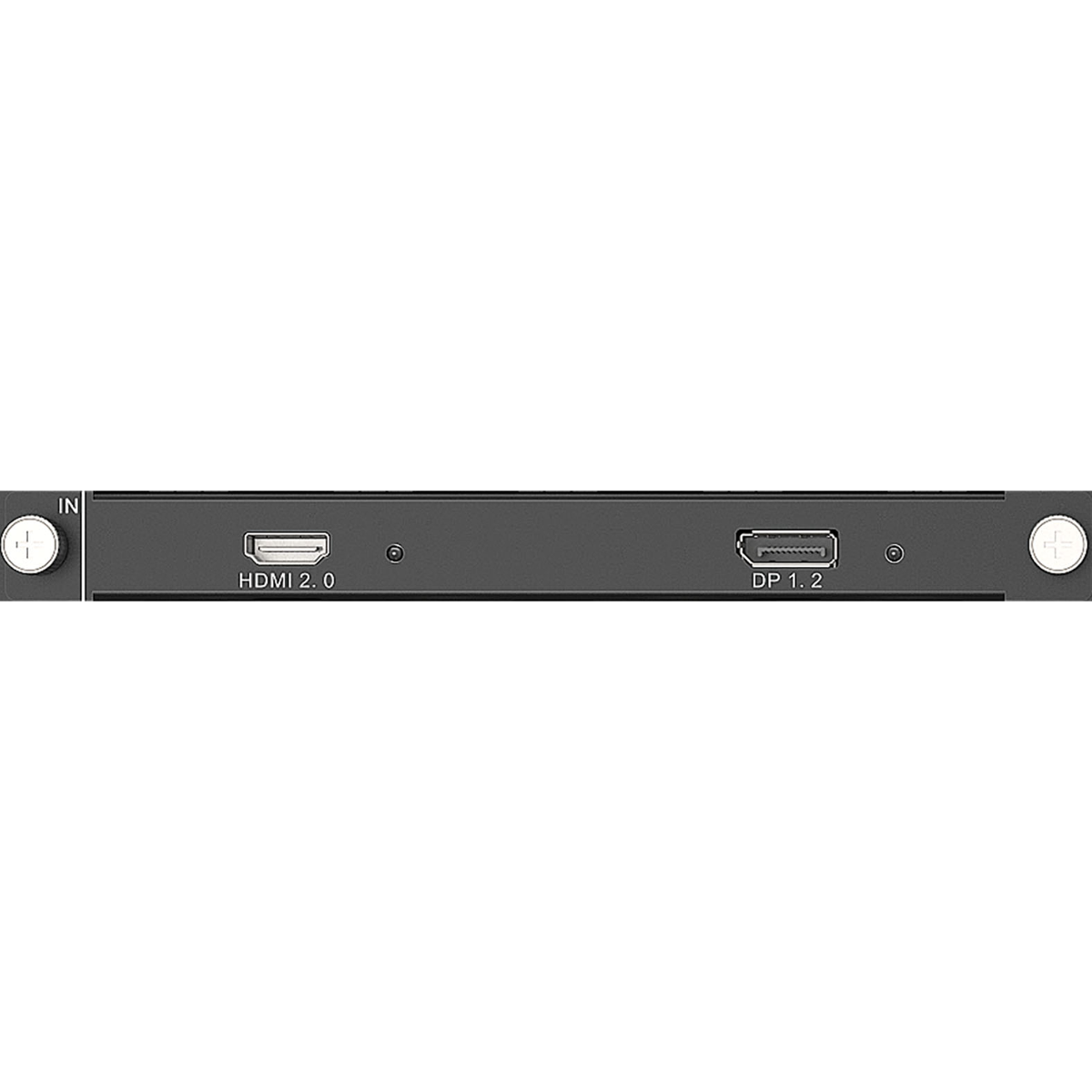

The H Series 1x HDMI 2.0 / 1x DP 1.2 Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 2.2 compliant. It accepts one HDMI 2.0 signal OR one DP 1.2 signal (not both at the same time). The HDMI 2.0 input is backwards compatible with HDMI 1.4 and 1.3 and supports resolutions of up to 4096x2160 @60 Hz or 8192x1080 @60 Hz. The DP 1.2 input is backwards compatible with DP 1.1 and supports resolutions of up to 4096x2160 @60 Hz or 8192x1080 @60 Hz. Two status LEDs indicate if the input signal is valid.

Features

• Supports HDMI 2.0 and DP 1.2

• HDCP 2.2 compliant

• Two status LEDs

Inputs

• DP 1.2: 1
• HDMI 2.0: 1
• Input Slots: 1

Control and Programming

• Maximum Input Resolution: 4096 x 2160, 8192 x 1080

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating:IP20 (indoor use only)
• Colour: Black
