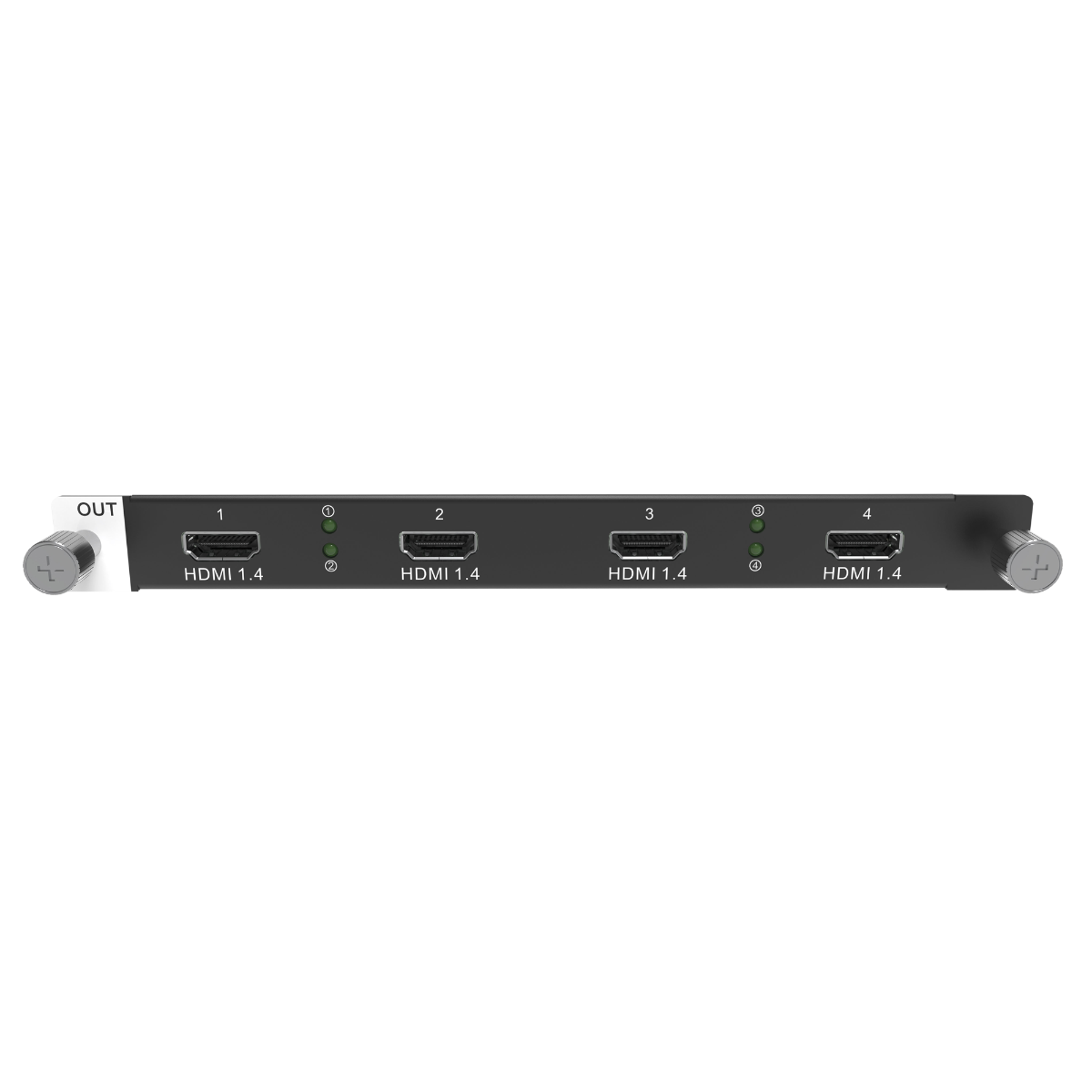

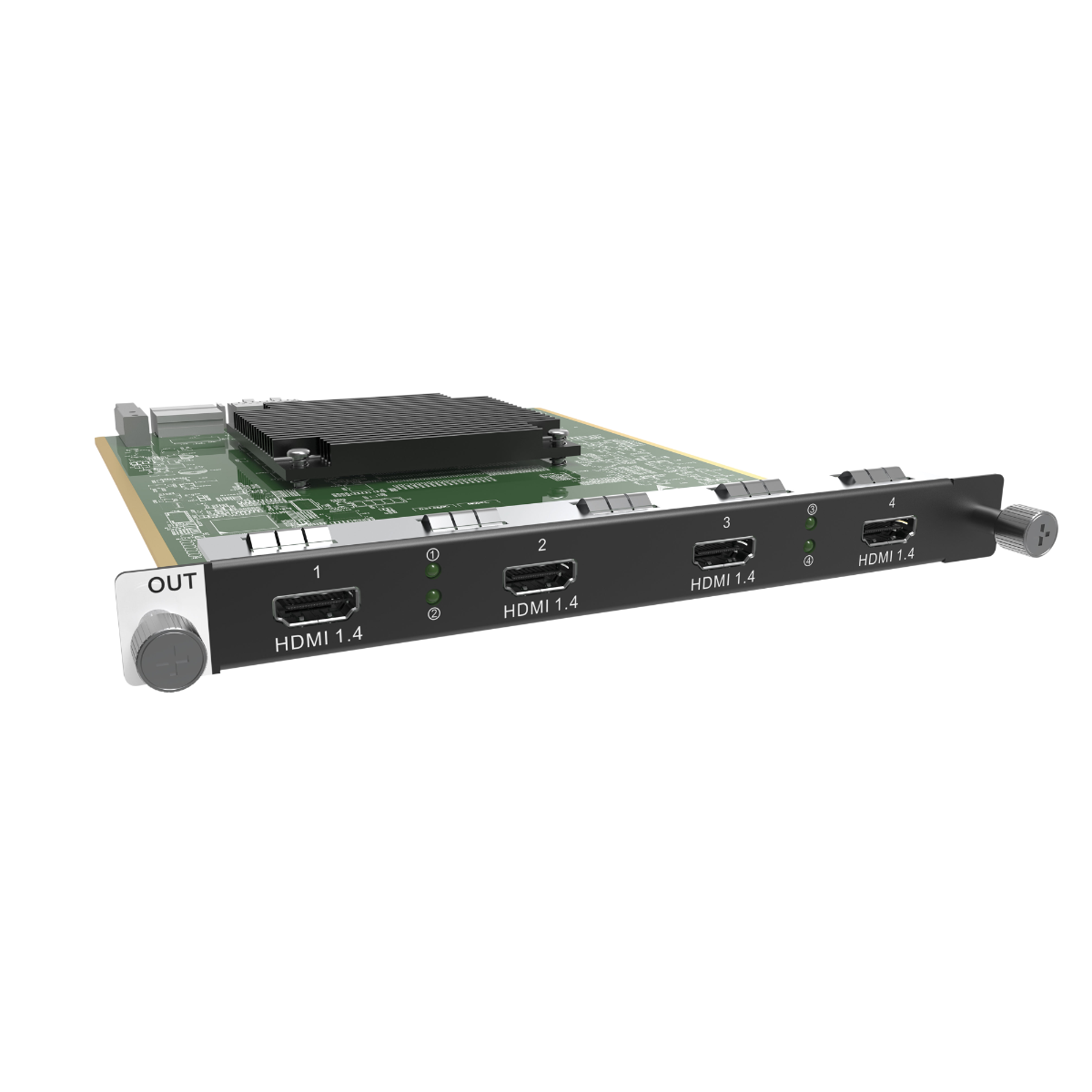

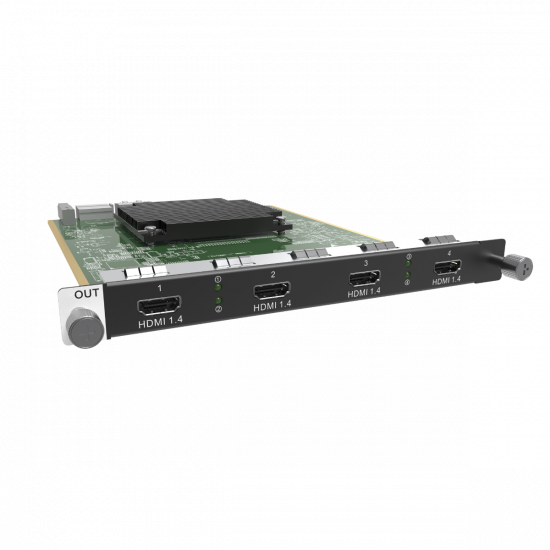

Novastar’s H Series 4x HDMI Output Card adds four HDMI 1.4 outputs to the H2/H5/H9/H15 Video Wall Splicers. When using all outputs individually, each one can support up to 2048 x 1152 at 60 Hz. If outputs 2 & 4 only are used, each one can handle up to 3840 x 1080 at 60 Hz and their output will be copied to connectors 1 & 3.

Features

• Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output

• Supports 10-bit YCbCr 4:4:4 output

• Four status LEDs

Outputs

• HDMI 1.4b (Out): 4
• Output Slots: 1

Control and Programming

• Maximum Output Resolution: 2048 x 1152 , 3840 x 1080

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
