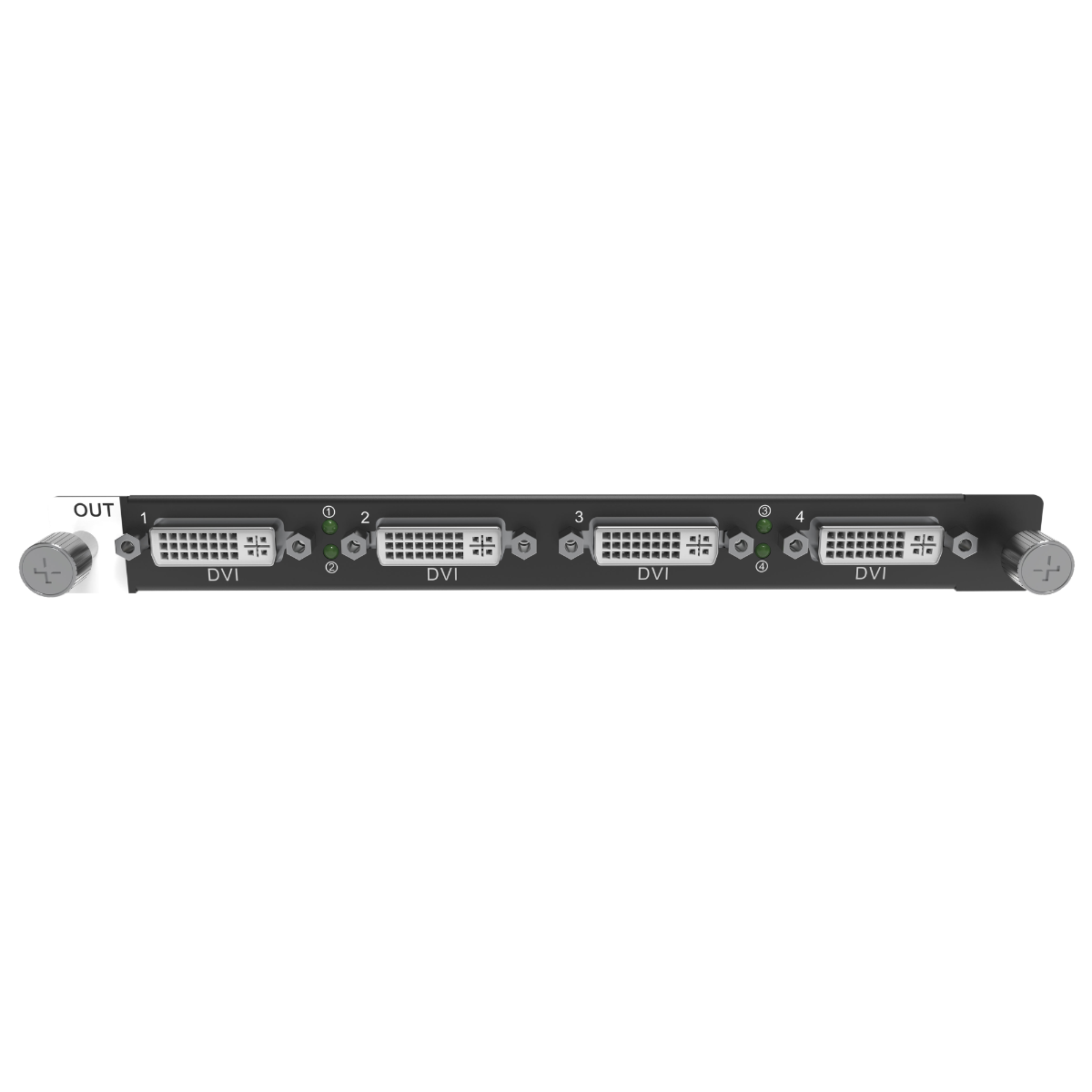

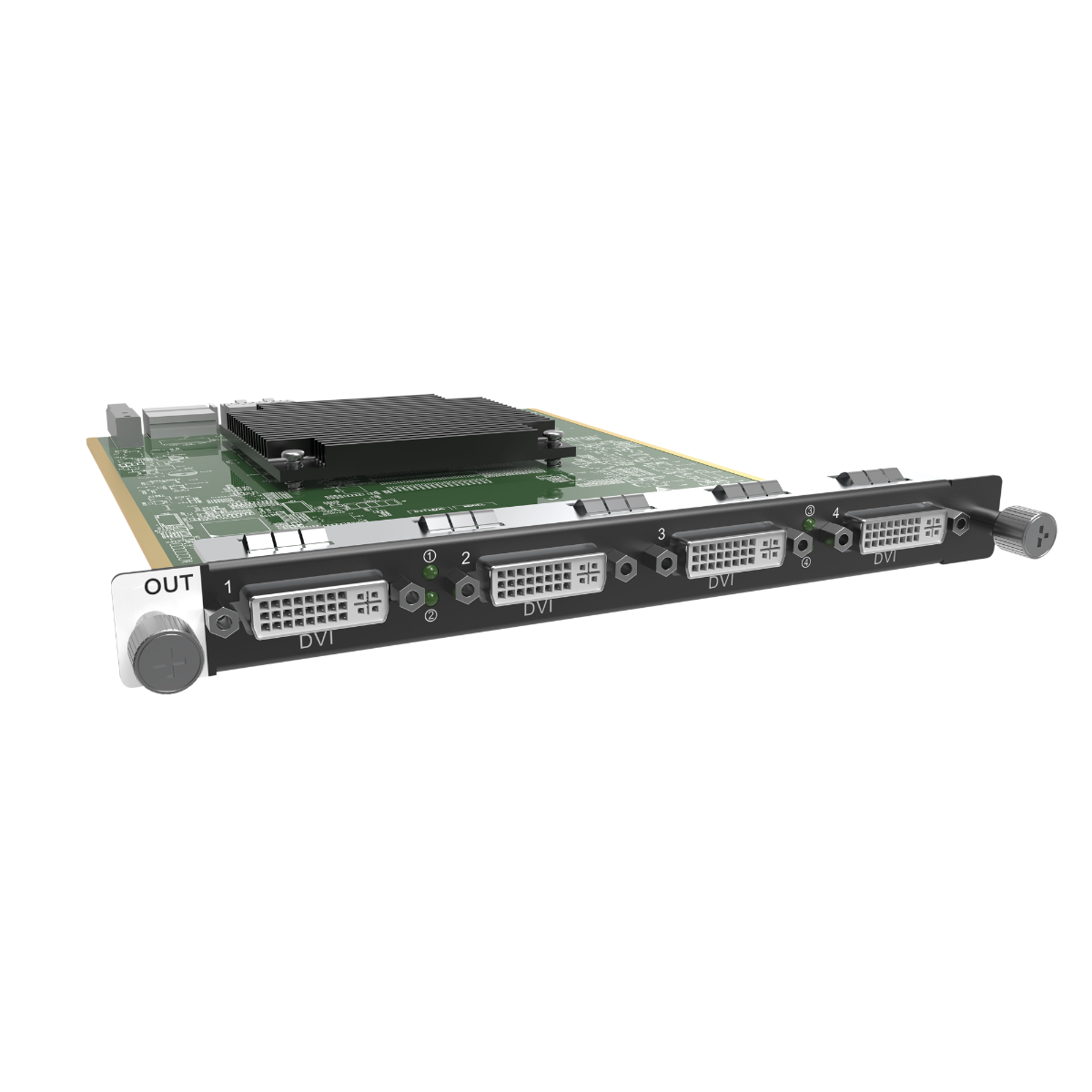

Novastar’s H Series 4x DVI Output Card adds four SL-DVI outputs to the H2/H5/H9/H15 Video Wall Splicers. As a single link output, all four connectors are available for output and can support the maximum resolution of 2048 x 1552 at 60 Hz. As a dual link output, connectors 1 & 3 copy the output to connectors 2 & 4, which are available for output, with each connector supporting the maximum resolution of 4096 x 2160 at 30 Hz or 3840 x 1080 at 60 Hz.

Features

• Supports single and dual link outputs

• Supports 8-bit RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 output

• Supports 10-bit YCbCr 4:4:4 output

• Four status LEDs

Outputs

• Single Link DVI (Out): 4
• Dual Link DVI (Out): 2
• Output Slots: 1

Control and Programming

• Maximum Output Resolution: 2048 x 1152 , 3840 x 1080 , 4096 x 2160

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
