NovaStar - H_4xDVI input card

NovaStar - H_4xDVI input card

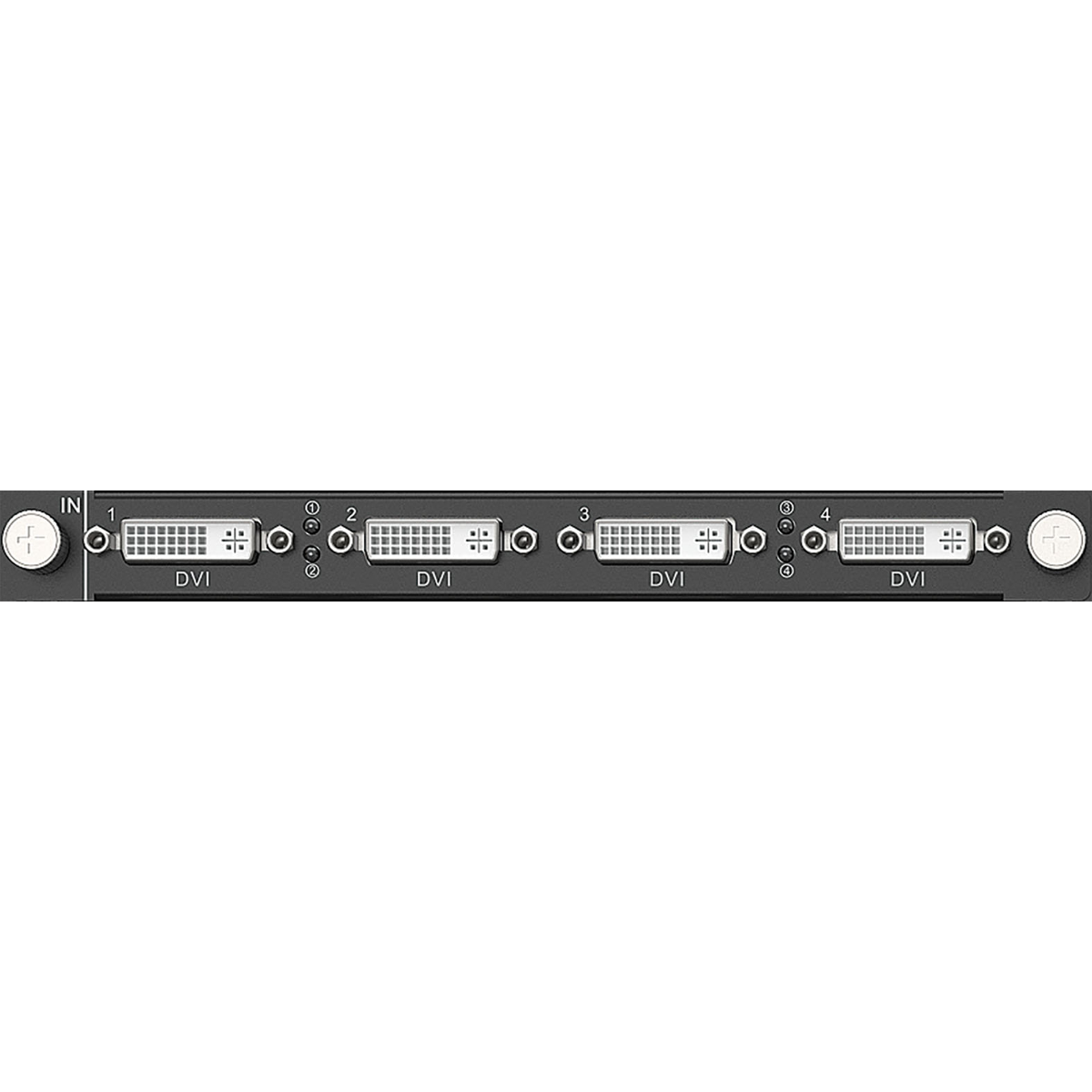

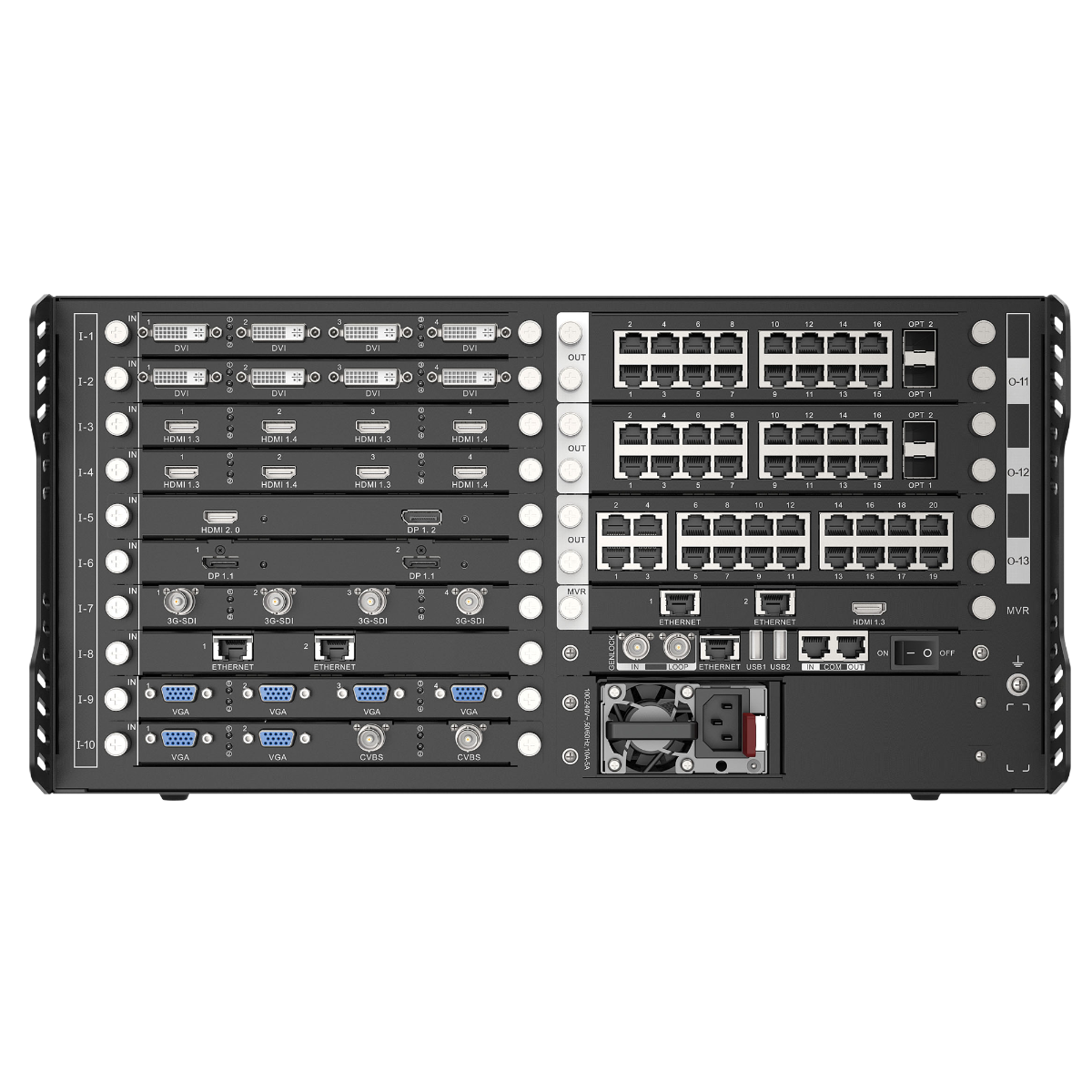

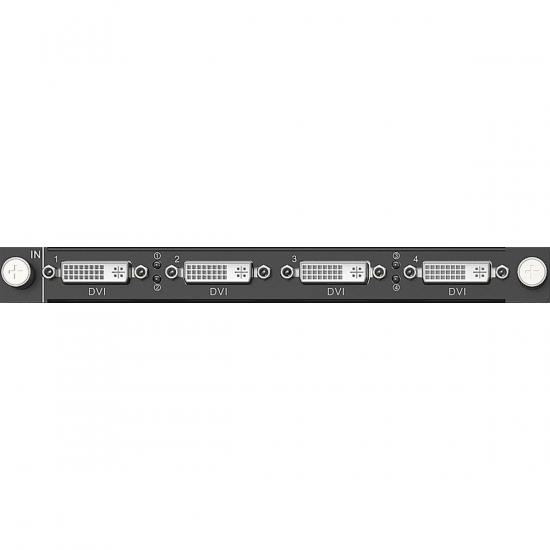

The H Series 4x DVI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. In Single link mode it supports four DVI input signals with resolutions of up to 2048x1152 at 60 Hz. In Dual link mode connectors 2 and 4 are used for inputs, with each input supporting resolutions of up to 3840x1080 at 60 Hz. Four status LEDs indicate whether the input signal is valid.

Features

• Supports Single and Dual link mode

• Supports 10-bit input source

• HDCP 1.4 compliant

• Four status LEDs

Inputs

• Single Link DVI: 4
• Dual Link DVI: 2
• Input Slots:1

Control and Programming

• Maximum Input Resolution: 2048 x 1152, 3840 x 1080

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
