NovaStar - H_1x12G SDI input card

NovaStar - H_1x12G SDI input card

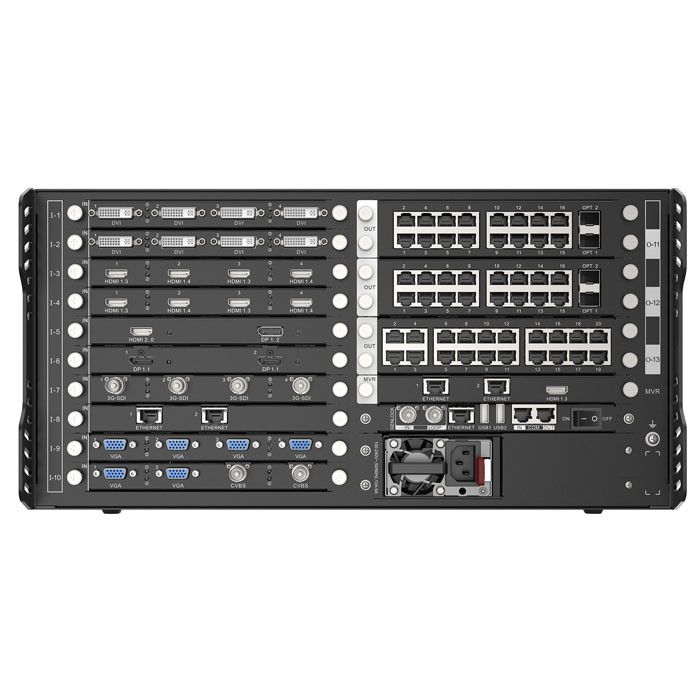

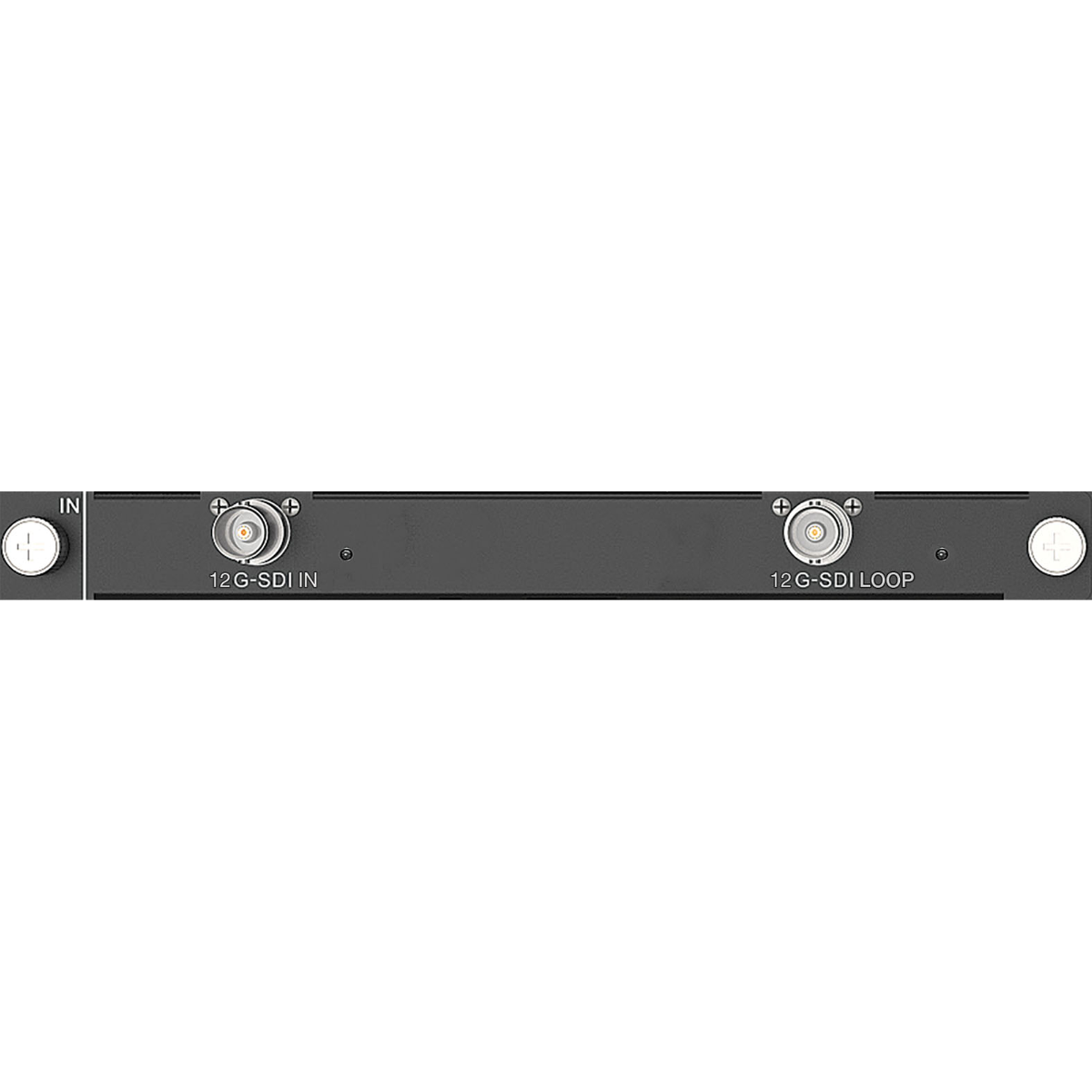

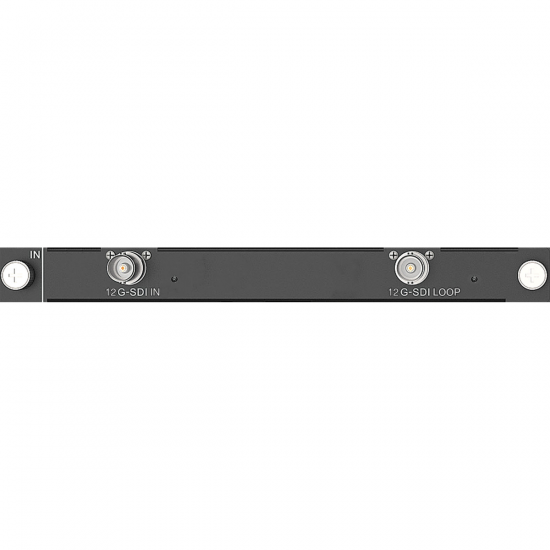

The H Series 1x 12G-SDI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It supports resolutions of up to 4096x2160 @60 Hz and 1080i/576i/480i de-interlacing processing. It supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD), and SMPTE 259 (SD) SDI signals. The 12G-SDI Loop output forwards the 12G-SDI input signal. Two status LEDs indicate if the input signal is valid.

Features

• Max. resolution 4096x2160 @60 Hz

• Supports 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI

• Supports 1080i, 576i, and 480i

• Two status LEDs

Inputs

• 12G-SDI: 1
• Input Slots: 1

Outputs

• 12G-SDI (Loop): 1

Control and Programming

• Maximum Input Resolution: 4096 x 2160

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
