NovaStar - H_1xDP1.2 input card

NovaStar - H_1xDP1.2 input card

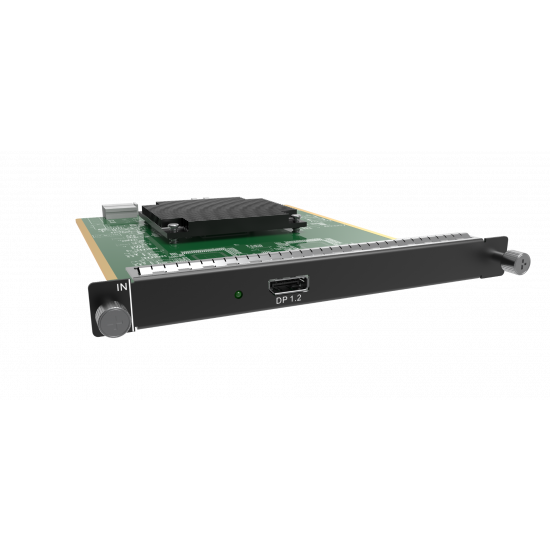

The Novastar H Series 1x DP1.2 input card has a single DP 1.2 connector that supports a maximum resolution of 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz. Custom resolution has a maximum width of 8192 pixels (8192 x 1146 @ 60 Hz) and a maximum height of 4095 pixels (2188 x 4095 @ 60 Hz). The card is HDCP 2.2 compliant and backwards compatible with DP 1.1. The status LED indicates if an input signal is present.

Features

• Max. resolution 4096 x 2160 @ 60 Hz or 8192 x 1080 @ 60 Hz
• Backwards compatible with DP 1.1

• HDCP 2.2 compliant



Inputs

• DP 1.2: 1
• Input Slots: 1

Control and Programming

• Maximum Input Resolution: 4096 x 2160, 8192 x 1080

Mechanical Specifications

• Weight: 0.55 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
