NovaStar - H_4x Fiber sending card

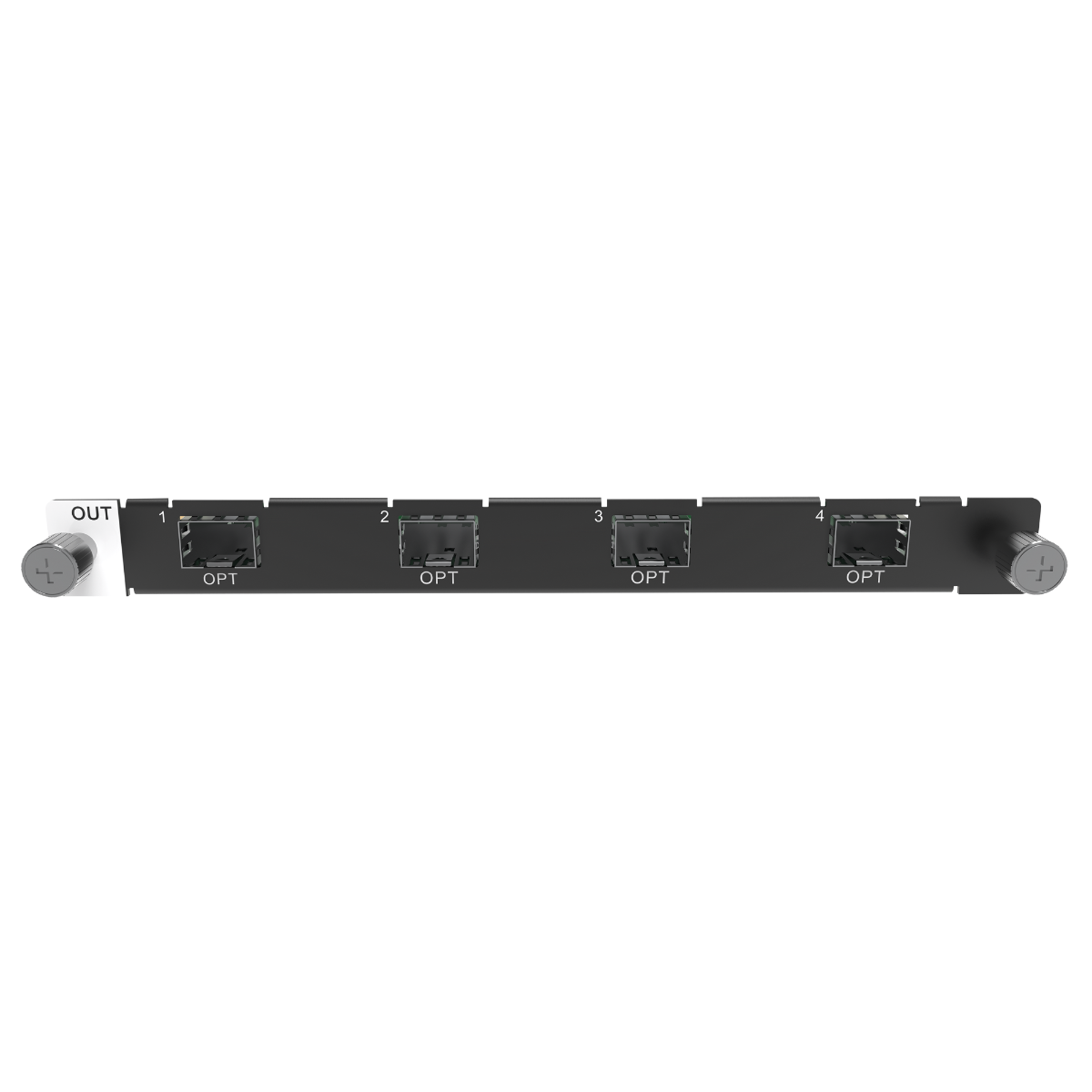

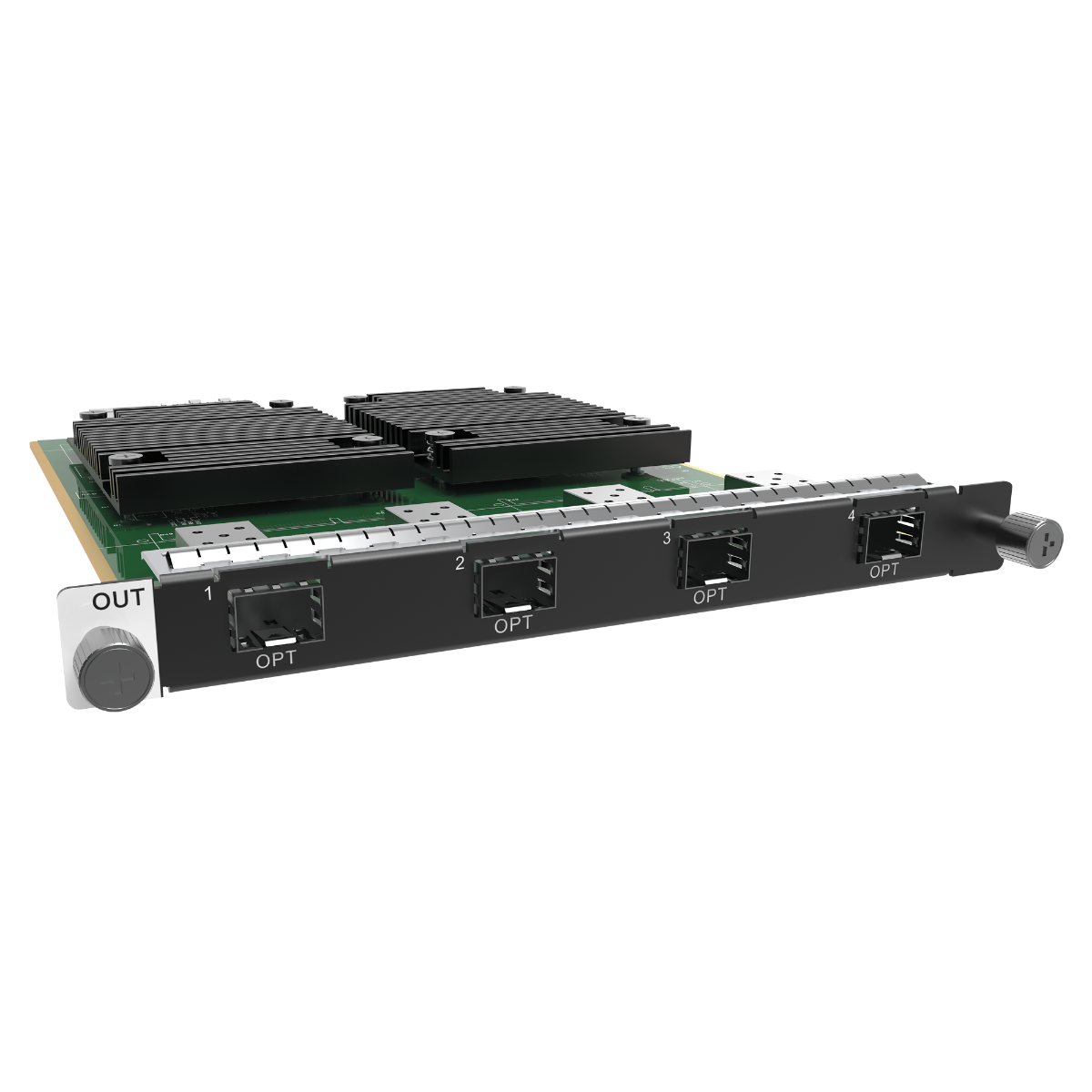

The H Series 4x Fibre Sending Card is a 4K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers that is compatible with the CVT10S and CVT4KS fibre converters. It has four 10G optical output ports. Each output can drive up to 5,200,000 pixels at 8-bit, which is equal to that of 8 Ethernet ports. In total, it can handle a maximum of 20,800,000 pixels. Each output can be individually configured as an independent, a copy or a backup port. The card supports both SM and MM optical modules and can achieve a transmission distance of up to 10 km. Four 10G SFP+ Single Mode optical modules are included with the card and are pre-installed in the OPT ports.

Features

  • 4K Fibre optical sending card
  • Supports 8- and 10-bit colour depth
  • Supports up to 20,800,000 pixels
  • Supports Single Mode and Multi Mode fibre transmission

Outputs

  • Output Slots:1

Optical

  • SFP Slot Type: 10G
  • SFP Slot Quantity: 4

Extra Features

  • Scaling Function: Yes

Control and Programming

  • Maximum Loading Capacity: 20.8 Mpx
  • Greyscale Processing: 10 bit

Mechanical Specifications

  • Weight: 0.8 kg
  • IP Rating: IP20 (indoor use only)
  • Colour: Black

Included Items

  • Included Accessories: SFP Module
Meer informatie
Merk NovaStar
