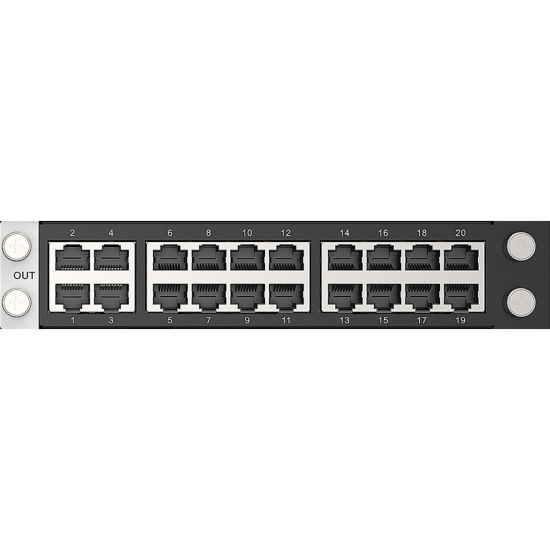

NovaStar - H_20xRJ45 sending card

NovaStar - H_20xRJ45 sending card

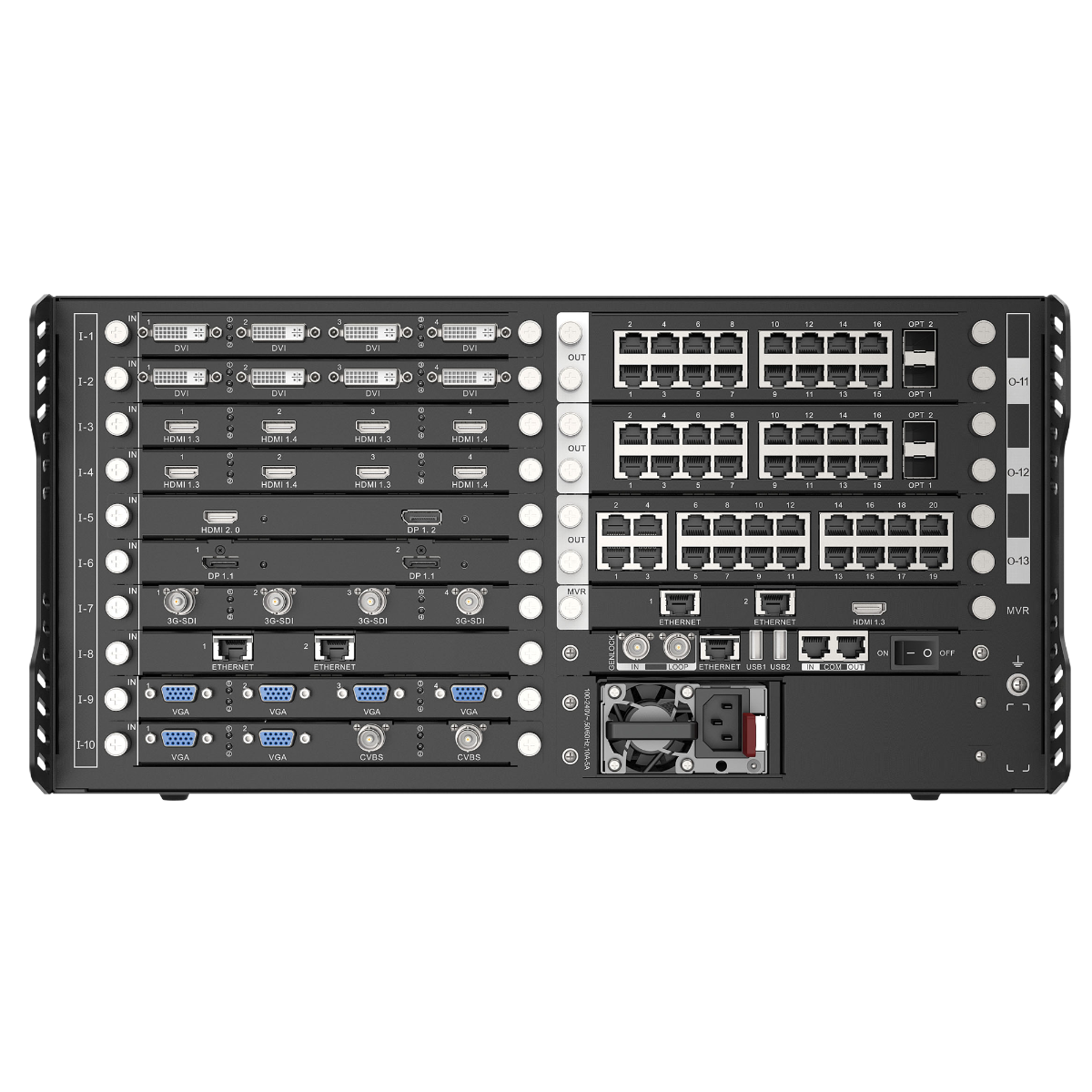

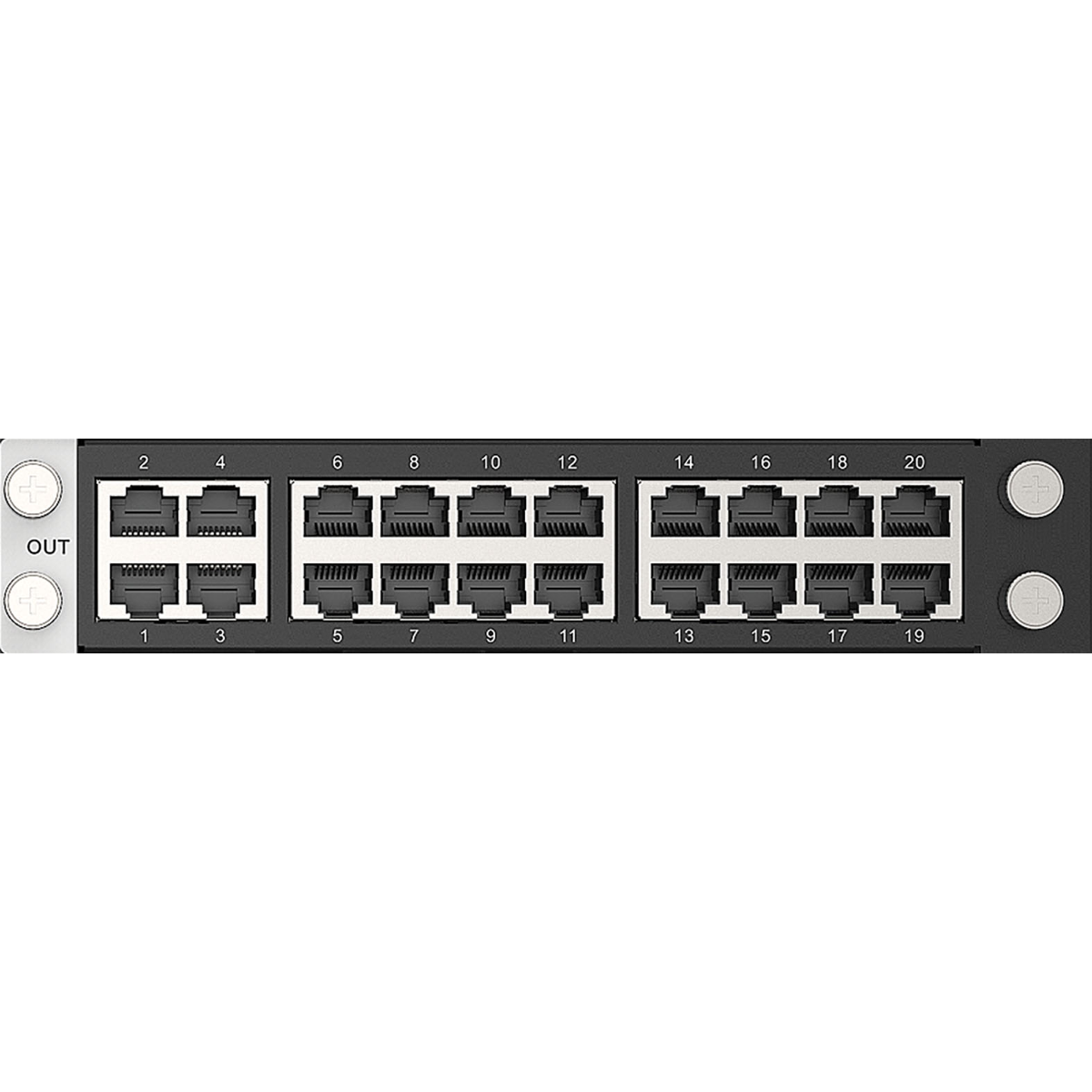

The H Series 20x RJ45 Sending Card is a 4 K sending card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has 20 RJ45 Gigabit Ethernet outputs. Each output can drive up to 650,000 pixels in 8-bit or 320,000 pixels in 10-bit colour depth. Each output can be individually configured as a main or backup port.

Features

• 4 K Sending Card

• Supports 8- and 10-bit colour depth

• Supports up to 13,000,000 pixels

Outputs

• Main Outputs: 20
• Ethernet Speed (LED Screen): 1 Gbit/s
• Output Slots: 2

Extra Features

• Scaling Function: Yes

Control and Programming

• Maximum Loading Capacity: 13 Mpx
• Greyscale Processing: 10 bit

Electrical Specifications and Connections

• Data Connector Out: RJ45

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
