NovaStar - CVT320

NovaStar - CVT320

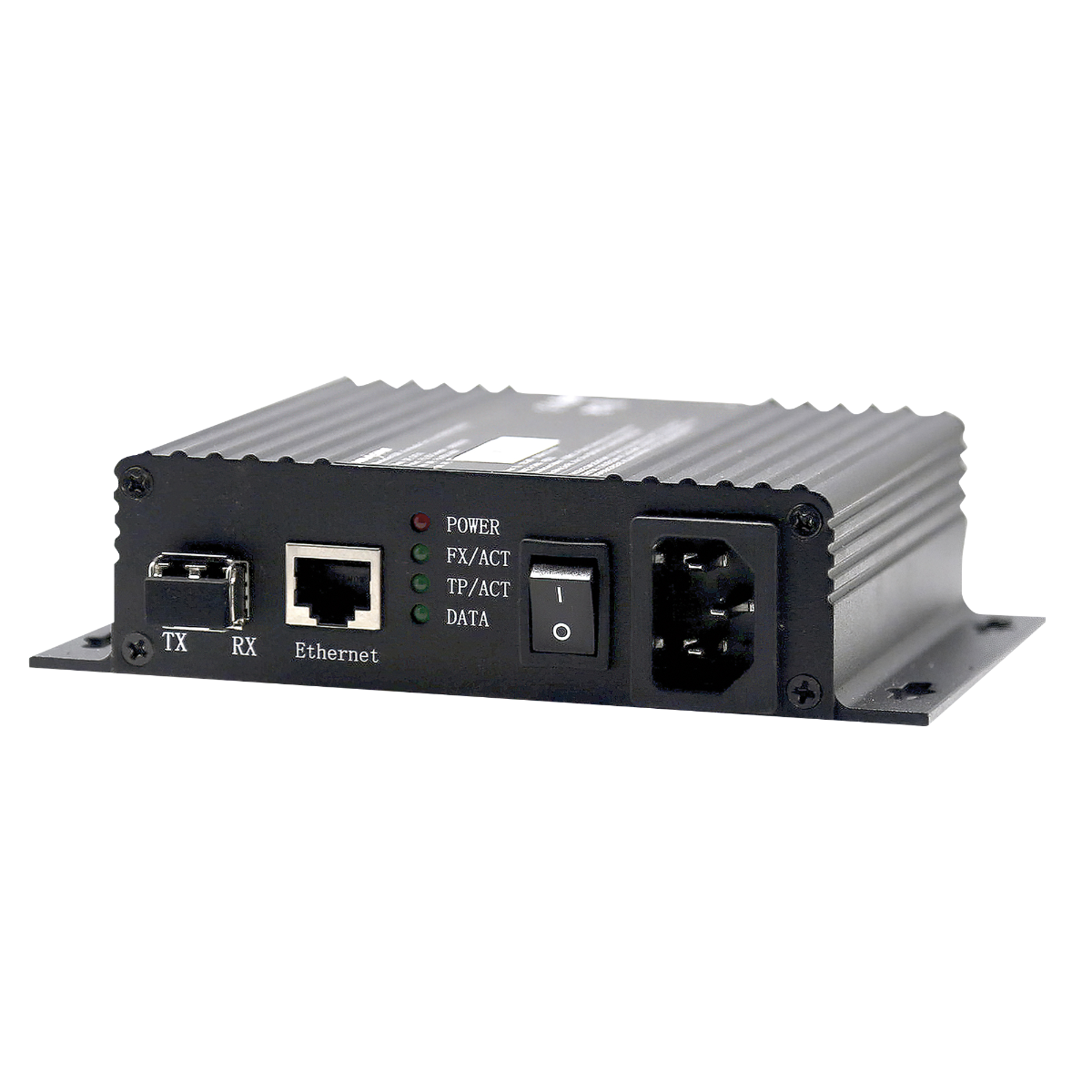

When you need to cover a large distance between your Novastar processor and LED screen the CVT320 is the ideal solution for you. The Novastar CVT320 can be used either as transmitter or as receiver. Due to the LC interface it is very easy to connect it to any fibre source. To transfer signal from one sending-card output to the designated LED screen you always need two CVT320 units (TX transmitter and RX receiver). The fibre converter is plug and play and no further drivers are required.

Features

• Fibre converter to cover large distances between processor and LED screens
• Transmission distance up to 15 km
• Plug and play, no driver required

Optical

• SFP Module Fibre Connector Type: LC
• SFP Module(s) Included: Yes
• Fibre Mode: Single-mode

Control and Programming

• Control System: Novastar
• Port Mapping: Software Based

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 16 W
• Power Connector In: IEC
• Data Connector In: RJ45

Mechanical Specifications

• Width (Including Handles): 149 mm
• Width (Without Handles): 119 mm
• Height (Including Handles): 132 mm
• Height (Without Handles): 132 mm
• Depth (Including Handles): 38 mm
• Depth (Without Handles): 38 mm
• Weight: 0.7 kg
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium
• Colour: Black

Product Properties

• Cooling: Passive

Thermal Specifications

• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
• Operating Humidity: 0-95 %rH
