NovaStar - MCTRL4K NovaStar - MCTRL4K NovaStar - MCTRL4K
NovaStar - MCTRL4K

NovaStar - MCTRL4K

Prijs op aanvraag
Beschikbaarheid:
Op voorraad
Art. code
NS-65.0021

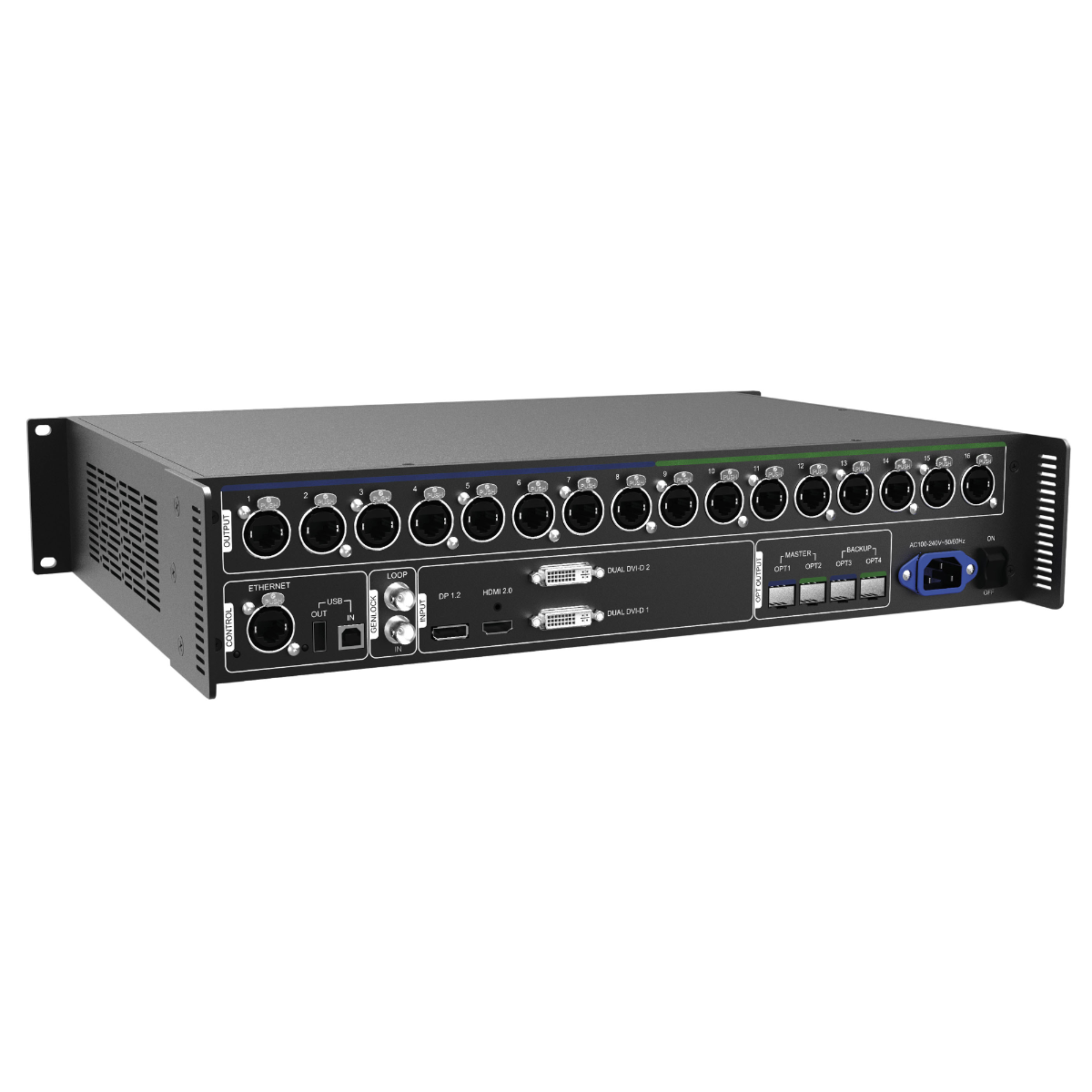

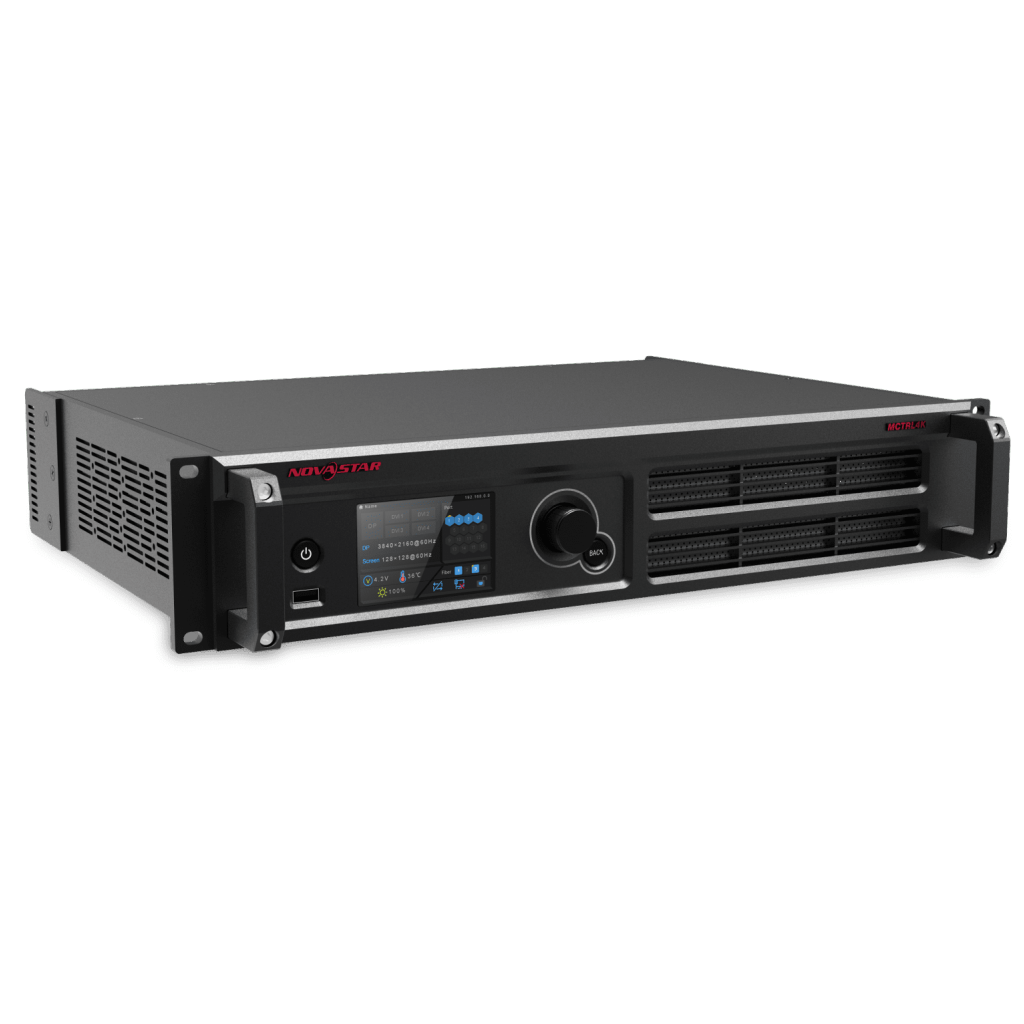

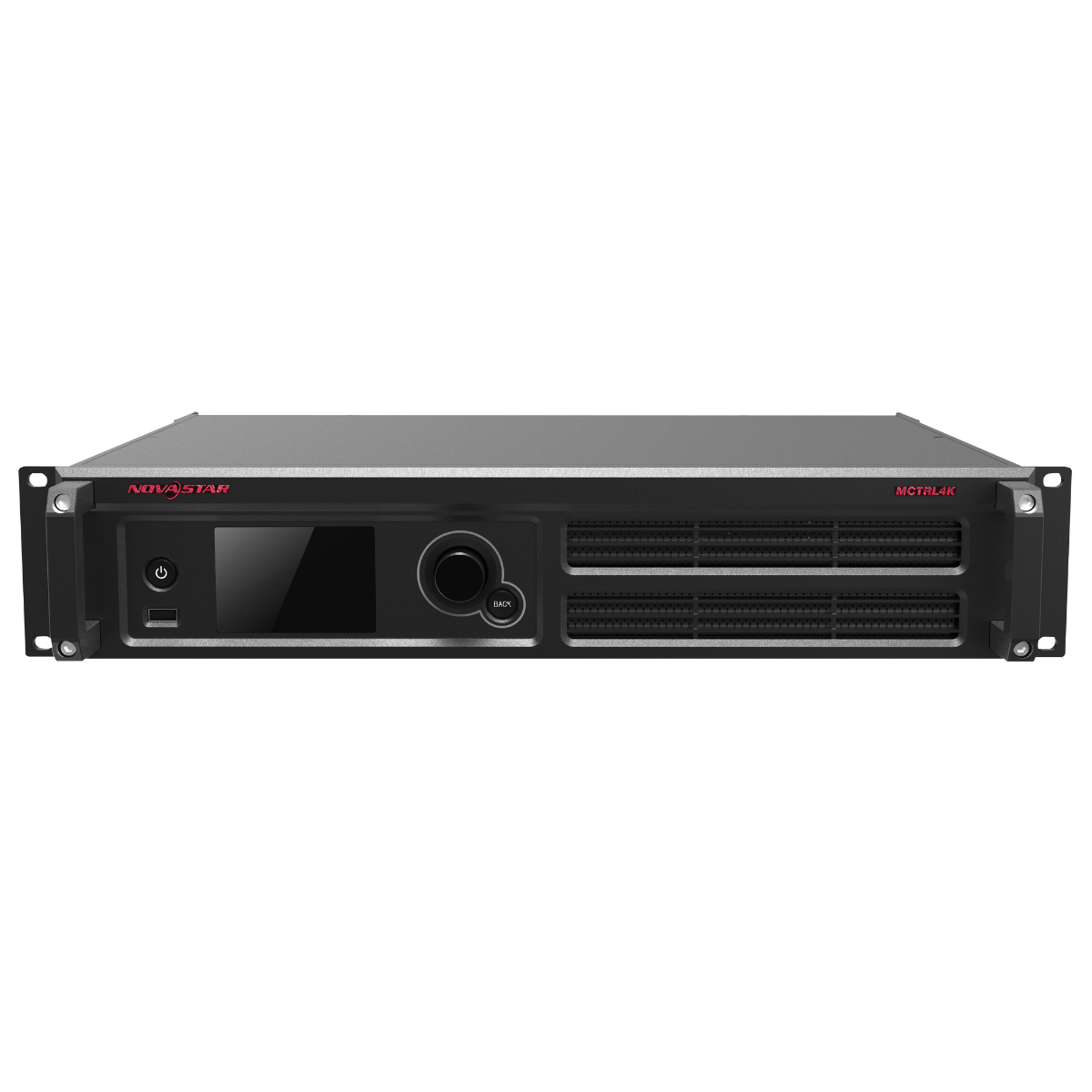

NovaStar - MCTRL4K

De MCTRL4K is een 4Kx2K-controller met een laadcapaciteit van 3840 x 2160 @ 60Hz voor elke afzonderlijke eenheid. Binnen dit bereik wordt elke aangepaste resolutie ondersteund, zodat u altijd de vereiste configuratie kunt bieden voor zeer brede of grote leddisplays. In multi-cardstand kan de controller worden gebruikt als twee onafhankelijke controllers om de beelden van twee inputs perfect op het scherm weer te geven. De HDR-functie in combinatie met A8s-/A10s-receiverkaart zorgt voor een aanzienlijke verbetering van de beeldkwaliteit, waardoor u altijd heldere en haarscherpe beelden kunt vertonen. U bestuurt het apparaat via USB of ethernet en de slimme Novastar LCT-software, maar het heeft ook een ingebouwde webinterface voor besturing op afstand. Als de afstand tussen de controller en het ledscherm groot is, kunt u de MCTRL4K combineren met de CVT4K-S-glasvezelomvormer (101653) en de 10G SFP-modules (101623). De MCTRL4K-controller is met name geschikt voor middelgrote tot grote evenementen, controlekamers, bewakingsdoeleinden en sportcentra.

Features

  • Real 4K-controller
  • Ondersteuning voor HDR10
  • DP1.2/Dual-link DVI/HDMI 2.0
  • 8-/10-/12-bits kleurdiepte
  • 16x Gigabit Ethernet-output

Inputs

  • DP 1.2: 1
  • HDMI 2.0: 1
  • Dual Link DVI: 2

Outputs

  • Main Outputs: 16

Optical

  • SFP Slot Type: 10G
  • SFP Slot Quantity: 4

Software Specifications

  • Control Software: Novastar LCT, Smart LCT

Extra Features

  • Scaling Function: No
  • GenLock: In & Out


Control and Programming

  • Control System: Novastar
  • Maximum Loading Capacity: 10.4 Mpx
  • Maximum Input Resolution: Width and Height can be defined by users
  • Control Options: Ethernet, USB

Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 30 W
  • Power Connector In: IEC
  • Data Connector Out: etherCON, RJ45

Mechanical Specifications

  • Width (Including Handles): 482 mm
  • Width (Without Handles): 435 mm
  • Height (Including Handles): 96 mm
  • Height (Without Handles): 89 mm
  • Depth (Including Handles): 372 mm
  • Depth (Without Handles): 330 mm
  • Weight: 4.6 kg
  • Flightcase Size: 19"
  • Rack Units: 2 U
  • IP Rating: IP20 (indoor use only)
  • Housing: Aluminium, Metal
  • Colour: Black

Product Properties

  • Cooling: Active

Thermal Specifications

  • Maximum Ambient Temperature: 60 °C
  • Minimum Ambient Temperature: -20 °C
  • Operating Humidity: 10-90 %rH
