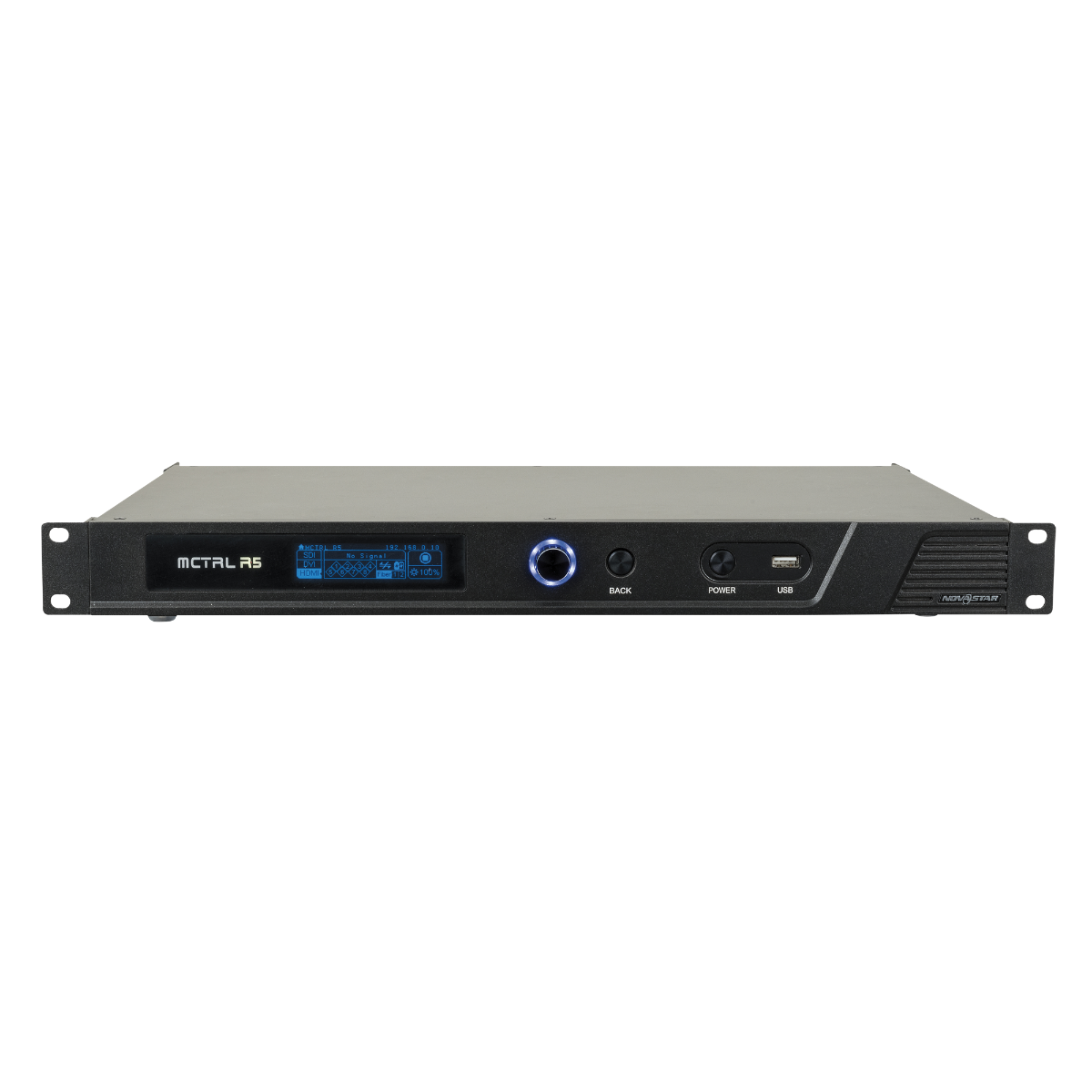

NovaStar - MCTRL R5

The Novastar Phobos MCTRL R5 is an independent master with a revolutionary significance. The loading capacity of a single unit is up to 3840x1080@60Hz, which is able to meet the on-site requirements of oversized LED displays.
Working with the A8s or A10s receiving card, the MCTRL R5 supports free screen configuration on SmartLCT, presenting full rotation of the display screen at any angle, adding diversity to images, and bringing different visual experience to users

The design of MCTRL R5 is innovative, it allows to configure a display at any time without PC. Various video inputs such as HDMI, dual-link DVI,SDI etc. and outputs of 8-channel Neutrik Gigabit Ethernet ports as well as 2-channel optical fibre ports are supported.

Features

  • Free screen configuration and image rotation
  • Neutrik etherCON outputs
  • Easy operation
  • 4 K capacity
  • Control up to 5,200,000 pixels

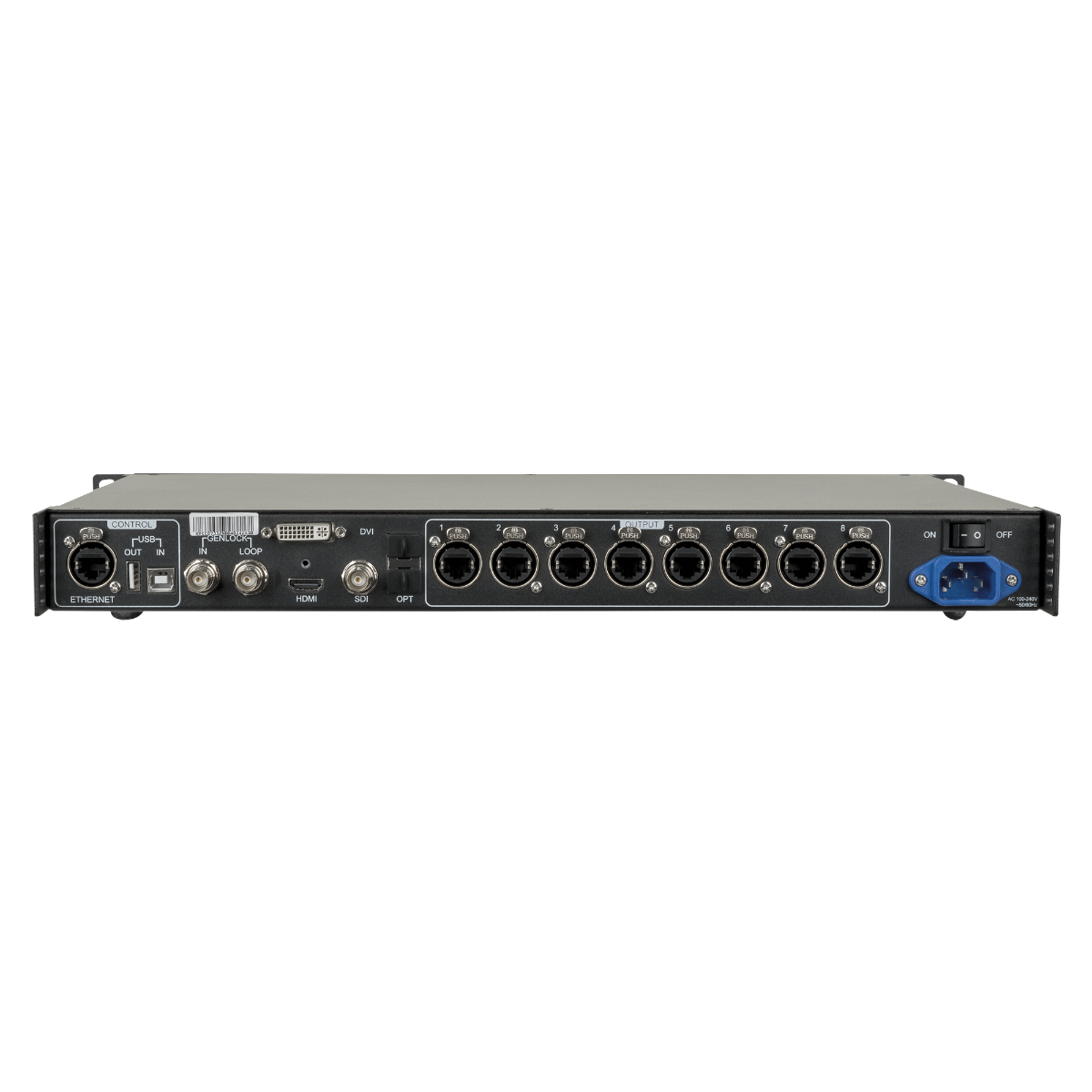

Inputs

  • HDMI 1.4a: 1
  • Dual Link DVI: 1
  • 6G-SDI: 1

Outputs

  • Main Outputs: 8

Software Specifications

  • Control Software: Novastar LCT, Smart LCT

Extra Features

  • GenLock: In & Out

Control and Programming

  • Control System: Novastar
  • Maximum Loading Capacity: 5.2 Mpx
  • Control Options: Ethernet, USB


Electrical Specifications and Connections

  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 25 W
  • Power Connector In: IEC
  • Data Connector Out: etherCON, RJ45

Mechanical Specifications

  • Width (Including Handles): 482 mm
  • Height (Including Handles): 52 mm
  • Depth (Including Handles): 334 mm
  • Weight: 4.3 kg
  • Flightcase Size: 19"
  • Rack Units: 1 U
  • IP Rating: IP20 (indoor use only)
  • Housing: Aluminium, Metal
  • Colour: Black

Product Properties

  • Cooling: Active

Thermal Specifications

  • Maximum Ambient Temperature: 60 °C
  • Minimum Ambient Temperature: -20 °C
  • Operating Humidity: 0-95 %rH
Meer informatie
Merk NovaStar
