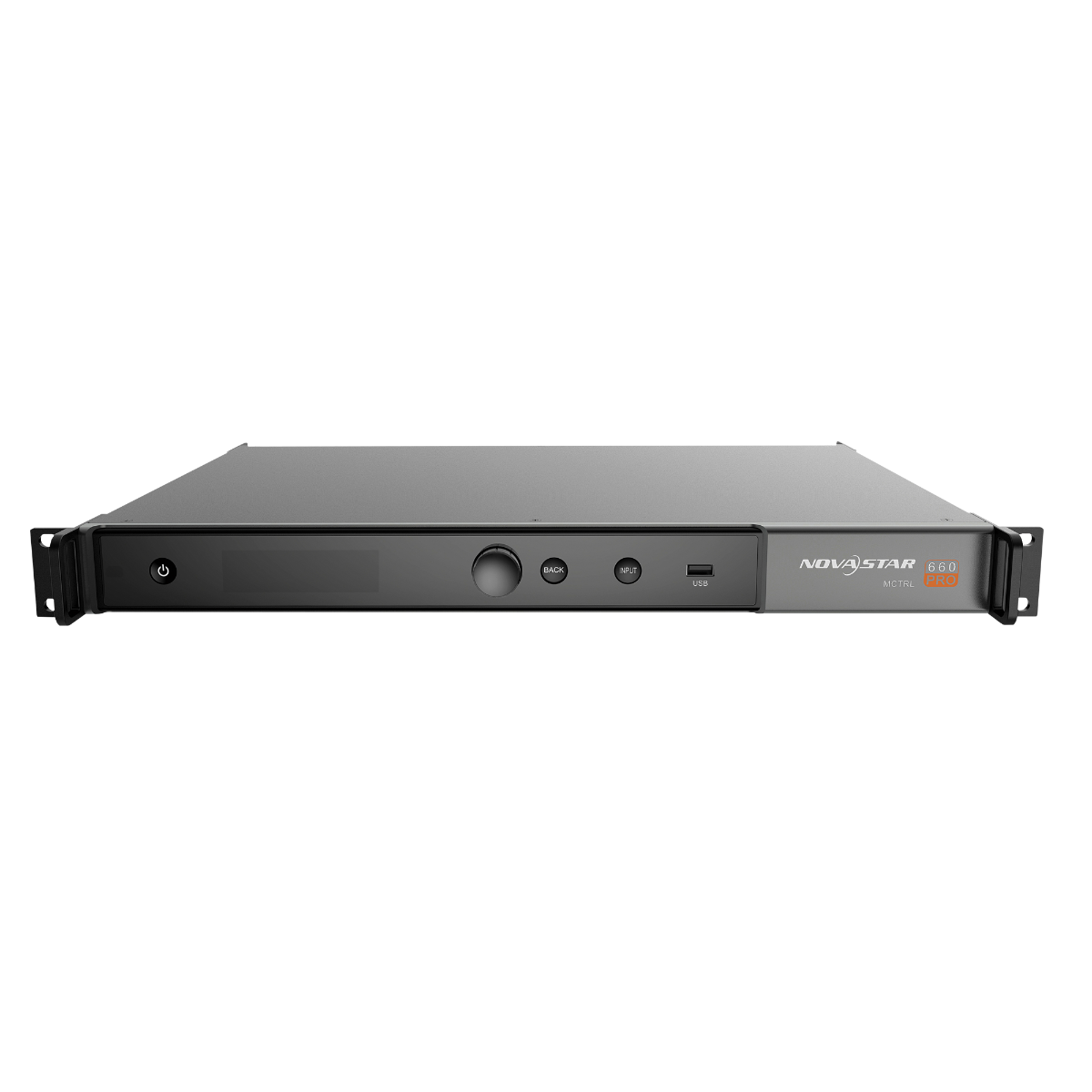

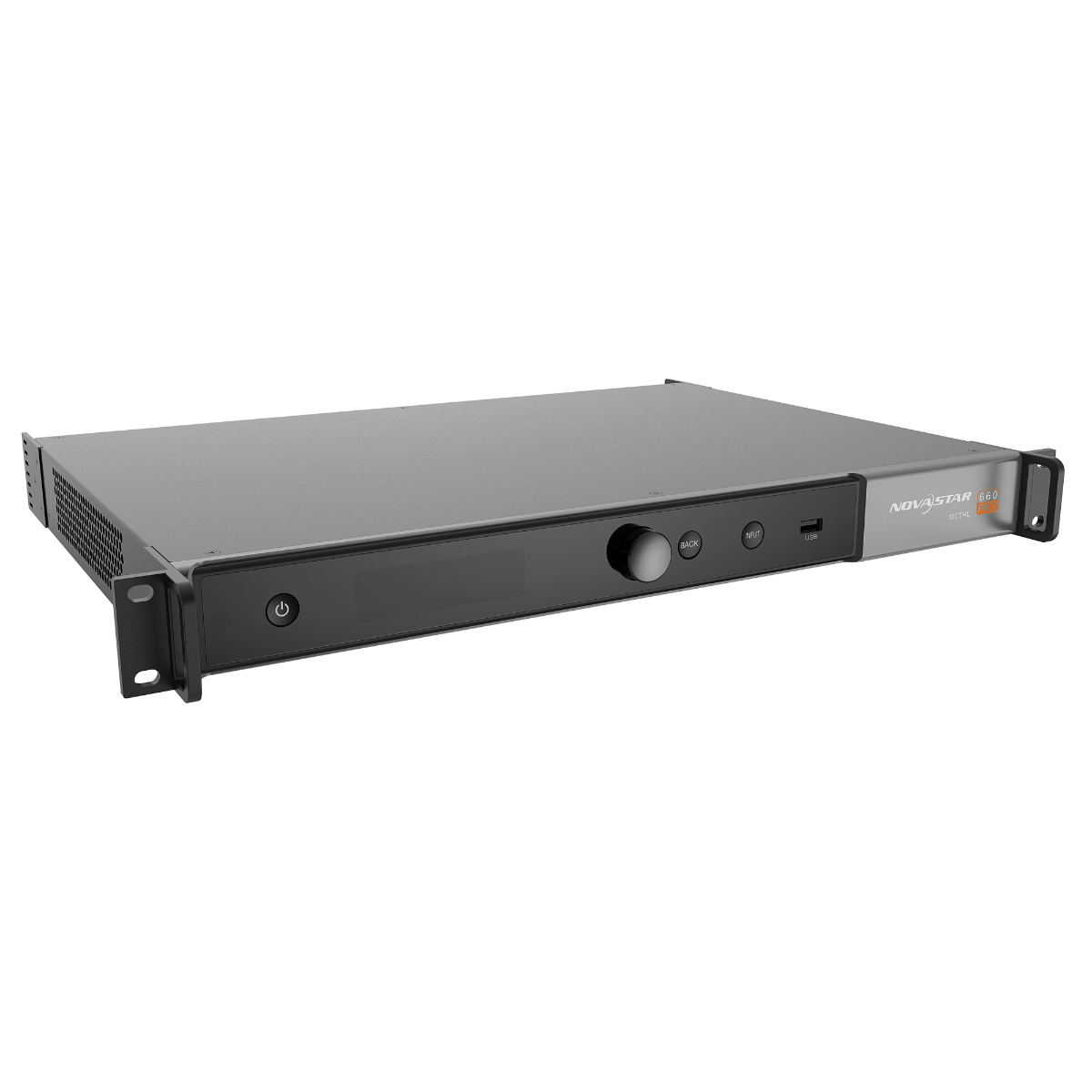

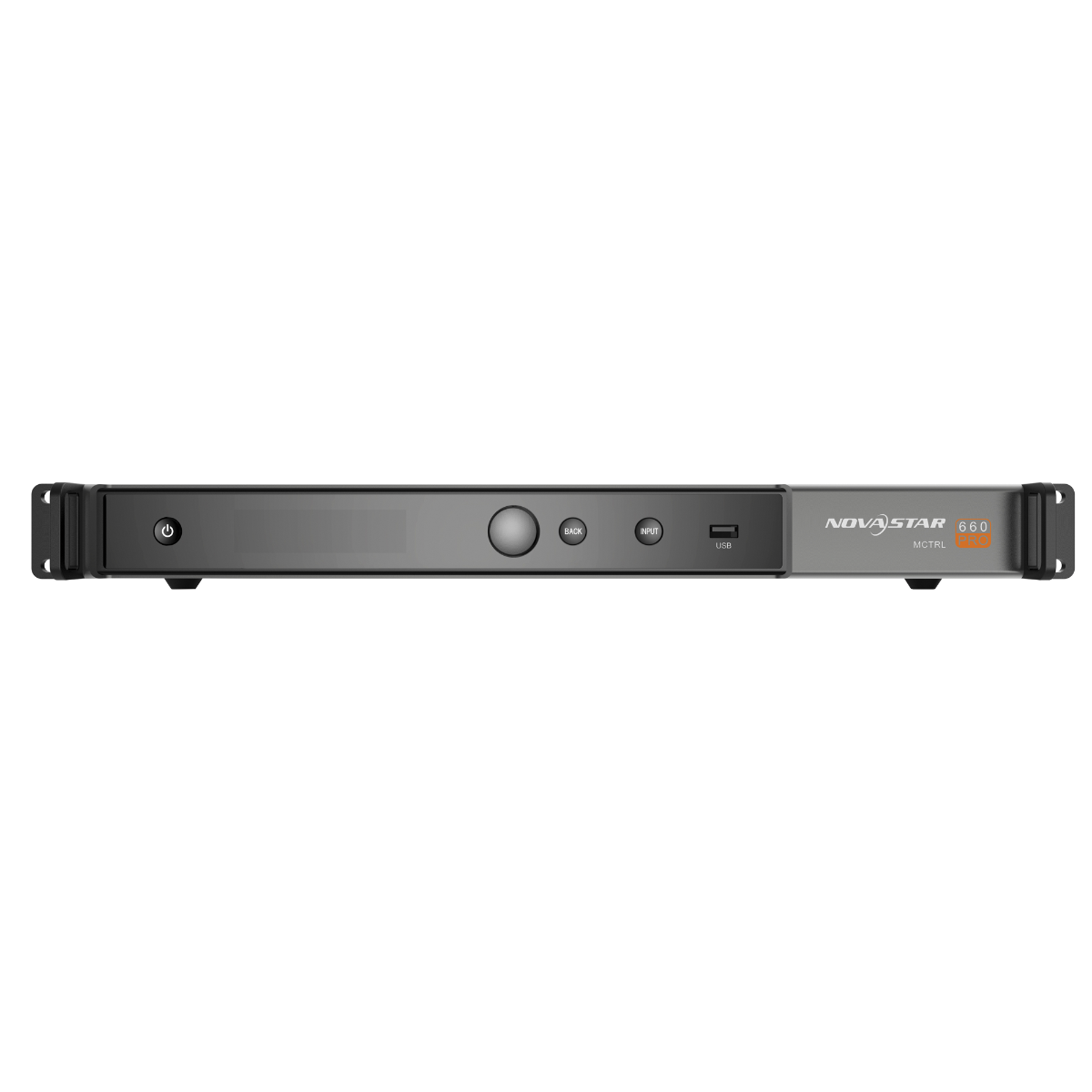

NovaStar - MCTRL660 PRO

NovaStar - MCTRL660 PRO

The MCTRL660 PRO is a professional low-latency controller. A single MCTRL660 PRO has a loading capacity of up to 1920x1200@60Hz. The MCTRL660 PRO has many industry-leading advanced technologies. Various video inputs such as HDMI, DVI, 3G SDI and 6x Gigabit ethernet / 2x 10G optical outputs allow users to configure ultra-large screens with ultra-width or ultra-height.

Features

• Low latency of less than 1 frame
• Cabinet config files saving and sending
• Brightness, colour and test pattern adjustable by knob
• Full HD capacity
• 8/10/12-bit colour Depth

Inputs

• HDMI 1.4a: 1
• Single Link DVI: 1
• 3G-SDI: 1

Outputs

• HDMI 1.4a (Loop): 1
• Single Link DVI (Loop): 1
• 3G-SDI (Loop): 1

Optical

• SFP Slot Type: 10G
• SFP Slot Quantity: 2

Extra Features

• Scaling Function: No
• GenLock: In & Out

Control and Programming

• Maximum Loading Capacity: 2.3 Mpx
• Maximum Input Resolution: Width and Height can be defined by users

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 20 W
• Data Connector In: RJ45, USB
• Data Connector Out: RJ45

Mechanical Specifications

• Width (Including Handles): 482 mm
• Height (Including Handles): 50 mm
• Depth (Including Handles): 349 mm
• Weight: 4.6 kg
• Flightcase Size: 19"
• Rack Units: 1 U
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium, Metal
• Colour: Black

Product Properties

• Cooling: Active

Thermal Specifications

• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
• Operating Humidity: 0-95 %rH
