NovaStar - LCB2K

NovaStar - LCB2K

The Novastar LCB2K is an FHD media player designed for digital signage and commercial displays with up to Full HD output via HDMI. It offers a wide range of connectivity options for control and allows synchronised playback on multiple screens using different time synchronisation services, such as NTP, GPS (with optional 4G module) and RF (with optional RF module). It can be linked to a free VNNOX account, allowing you to change content and adjust settings remotely, as long as an Internet connection is available (Ethernet, Wi-Fi, or optional 4G).

The LCB2K has powerful processing capabilities with a quad-core 1.3GHz processor, 1 GB of RAM, 16 GB of internal storage and support for 4K playback, custom resolutions from 160 to 4096 pixels wide or 160 to 3820 pixels high, and many codecs, including H.265/HEVC. Stereo audio is available via a 3.5 mm mini jack. It offers media access via USB Type C, USB 3.0 (Type A), Ethernet and Wi-Fi and also supports the optional Novastar 4G module for extended remote accessibility.

Features:

• FHD media player with HDMI 1.3 and audio output

• Maximum output resolution 1920x1080 at 60 Hz

• VNNOX cloud compatible

• Internal access point

• Wi-Fi antenna included

Outputs

• Main Outputs: 1
• Main Output Connector: TRS balanced 3.5 mm
• HDMI 2.0 (Out): 1

Playback

• Processor: 1.3 GHz Quad-core
• Operating Memory: 1 GB
• Internal Storage Space: 16 GB
• Local Content Upload: Ethernet, USB

Software Specifications

• Control Software: VIPLEX Express, VIPLEX Handy, VNNOX

Wireless Specifications

• Wi-Fi Mode: AP

Extra Features

• Scaling Function: Yes

Control and Programming

• Maximum Output Resolution: 1920 x 1200 , Width and Height can be defined by users
• Control Options: 4G mobile network, Ethernet, RS232, USB, Wi-Fi

Electrical Specifications and Connections

• Power Supply: 12 V DC
• Power Consumption: 18 W
• Power Connector In:Low Voltage DC plug

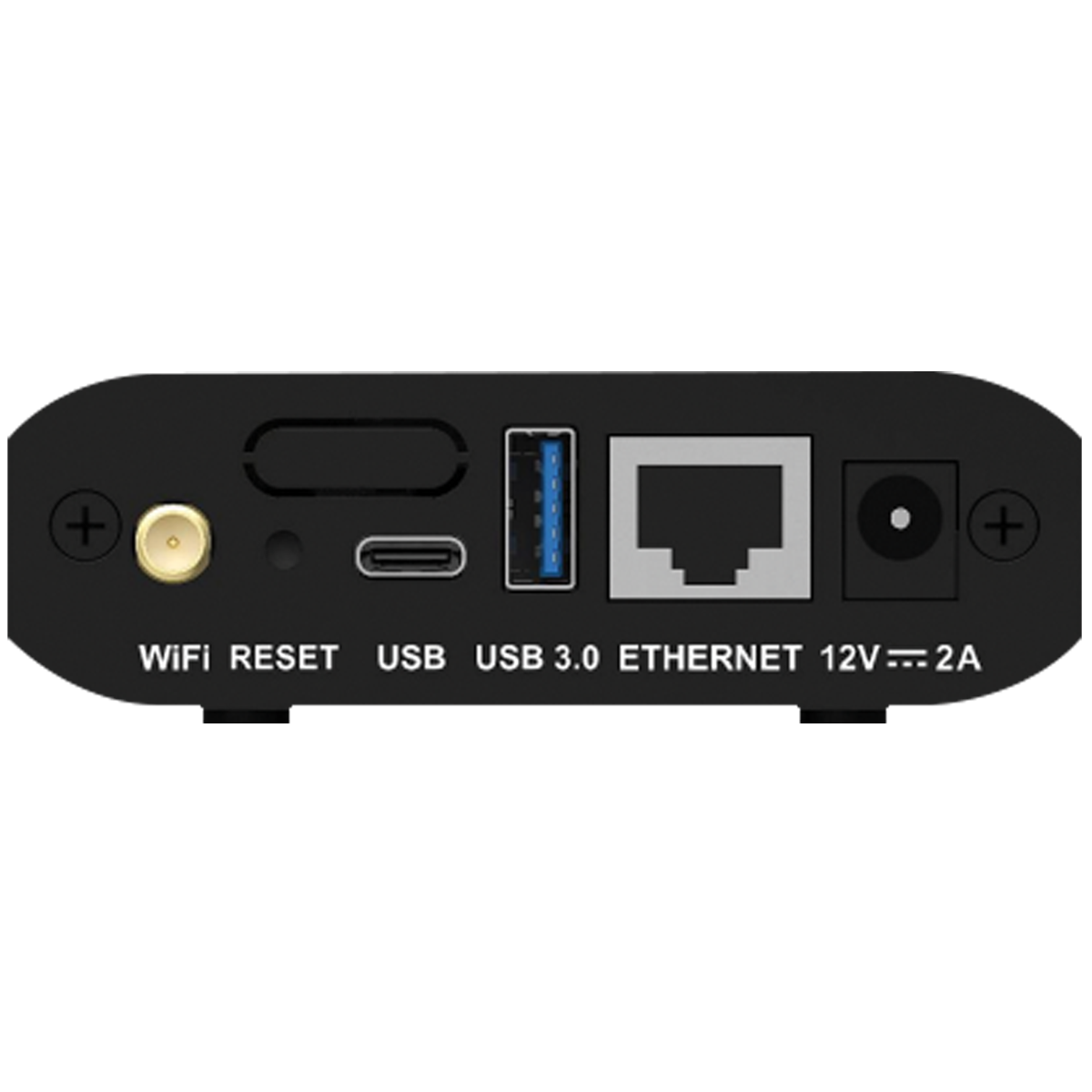

• Data Connector In: RJ45, USB A, USB B
• Data Connector Out: HDMI, RJ45, USB A, USB B

Power Adapter

• AC-DC adapter
• 12 V DC

Mechanical Specifications

Thermal Specifications

• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
• Operating Humidity: 0-80 %rH

Included Items

• Included Accessories: Adapter, WiFi antenna
