NovaStar - KU20
Prijs op aanvraag
Beschikbaarheid: Op voorraad

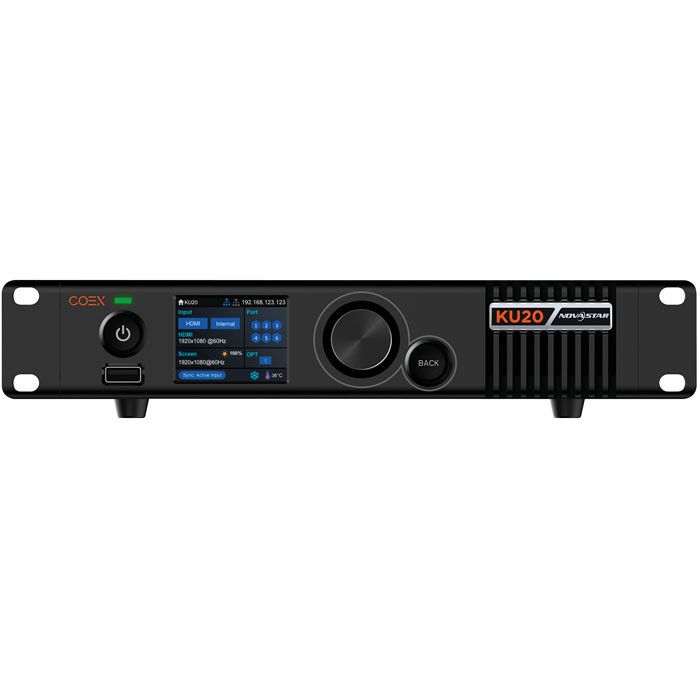

NovaStar - KU20
The KU20 is NovaStar's newest member of the COEX series. The LED controller is characterized by its small size and can therefore be easily installed in 19″ racks.
In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.
Inputs:
1x HDMI 1.3 (max. 1920×1200@60Hz; min. 800×600@60Hz)
Custom EDID's: max. width: 3840 (3840×600@60Hz); max. height: 2560 (800×2560@60Hz)

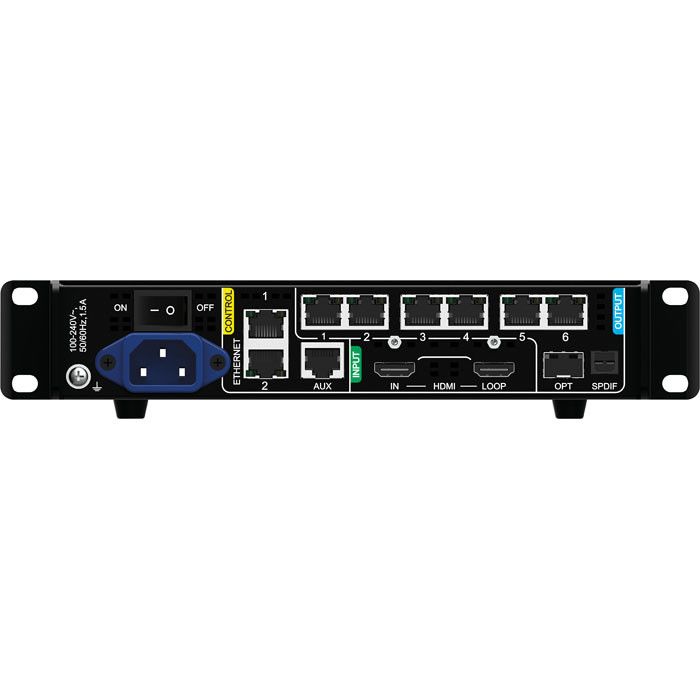

Outputs:
6x LED-Out (RJ45):
8Bit@60Hz: 650,000 pixels
10Bit@60Hz: 325,000 pixels (Only in combination with A10s Pro Receiving card)
1x HDMI 1.3 Loop
1x OPT-Out (10G)
1x SPDIF (reserved)
Further features:
Grayscale calibration
Pixel level brightness & chroma calibration
low latency
integrated network switch for cascading multiple devices
General specifications:
Supply voltage: 100-240V~, 50/60Hz
Dimensions: 254.3 x 50.6 x 290.0 mm (WxDxH)
Power consumption: 25Watt
Weight: 2,1kg
Software Specifications
Control Software: VMP
Extra Features
Scaling Function: Yes
DMX Control: Art-Net
Control and Programming
Display: LCD
Display Size: 2 "
Maximum Loading Capacity: 3.9 Mpx
Maximum Input Resolution: 1920 x 1200
Control Options: Ethernet
Electrical Specifications and Connections
Power Supply: 100-240 V AC 50/60 Hz
Power Consumption: 25 W
Power Connector In: IEC
Data Connector In: RJ45
Data Connector Out: RJ45
Mechanical Specifications
Width (Including Handles): 255 mm
Width (Without Handles): 217 mm
Height (Including Handles): 44 mm
Depth (Including Handles): 290 mm
Depth (Without Handles): 263 mm
Weight: 2.1 kg
Rack Units: 1 U
IP Rating: IP20 (indoor use only)
Colour: Black
Thermal Specifications
Maximum Ambient Temperature: 50 °C
Minimum Ambient Temperature: -20 °C
Operating Humidity: 0-80 %rH
Meer informatie
Merk
NovaStar
