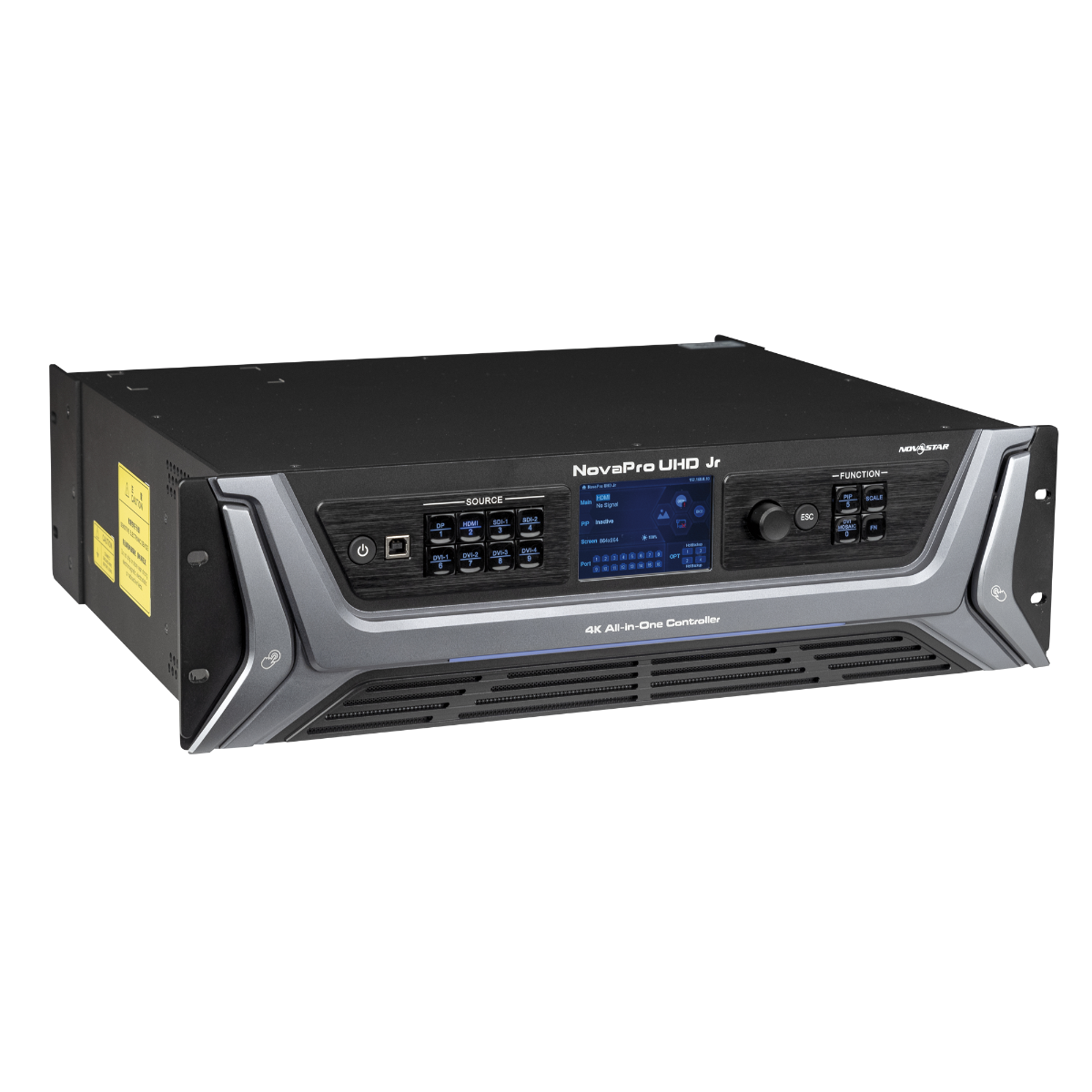

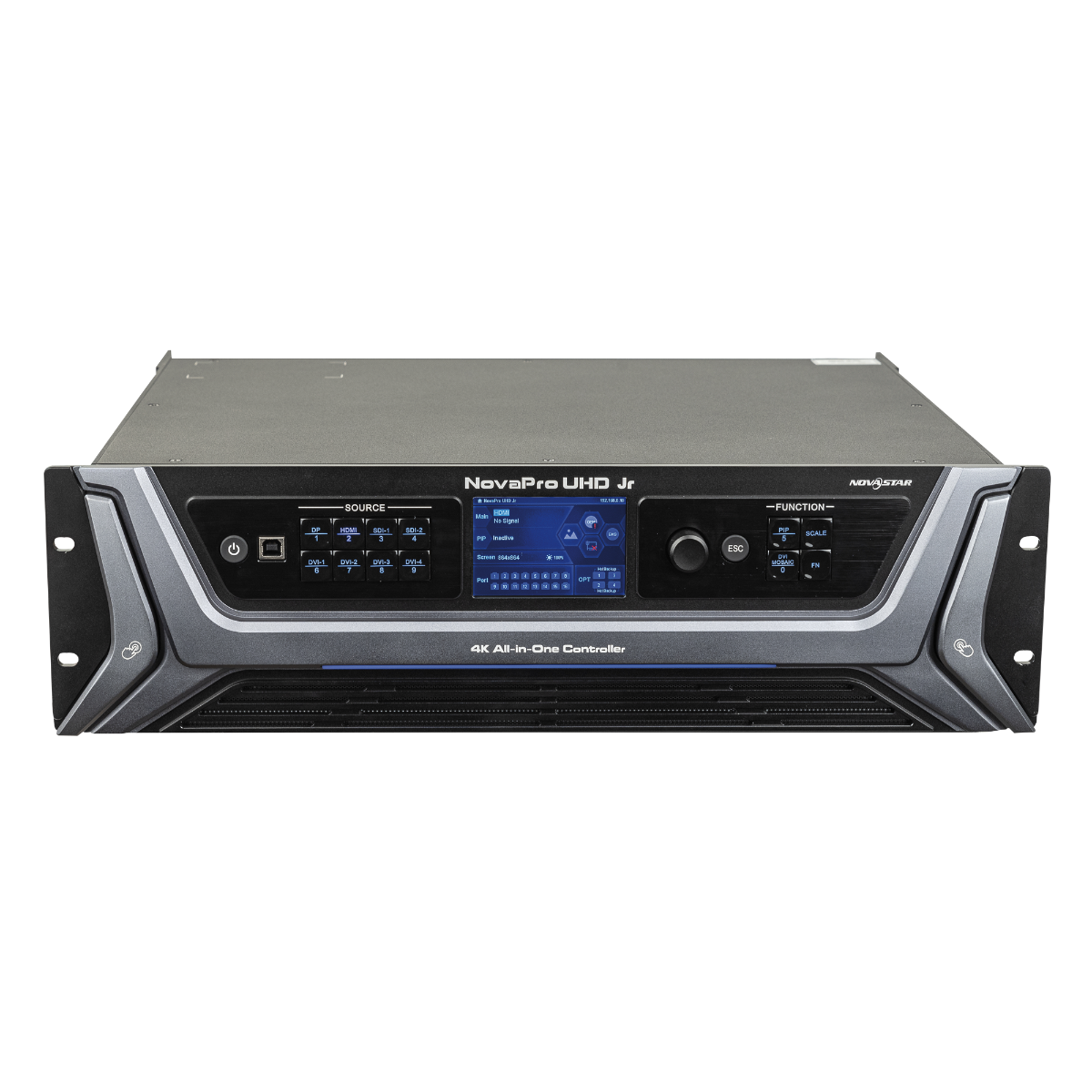

The NovaPro UHD Jr is a new all-in-one 4 K controller which combines excellent video processing capabilities, scaler and sending card functions into one housing. It can handle a variety of video input signals like DVI, DP1.2, HDMI2.0 and 12G SDI.

It can support 4 K x 2 K@60Hz, but also ultra-high resolutions up to 8 K x 1 K@60Hz. When using mosaic mode, multiple UHD Jr units can be combined to build even bigger screen setups. Due to the built-in pixel to pixel scaling function an external scaler is no longer necessary. NovaPro UHD Jr also supports HDR10 (only with A8S/A10S receiving card) to greatly enhance the display image quality. Control can be done with V-Can and (Smart) LCT Software.

The NovaPro UHD Jr is equipped with Neutrik Ethernet ports and optical fiber ports. Due to the professional interfaces, excellent image quality and flexible image control the NovaPro UHD Jr is well suited for stage control systems, conference sites, exhibition sites and other high-end rental applications as well as fine-pitch LED displays.

Features

• All-in-One 4K controller with scaler and PIP

• HDR10 supported

• DVI / DP 1.2 / HDMI 2.0 / 12G-SDI

• 8/10/12-bit colour depth

• 16x gigabit ethernet output port

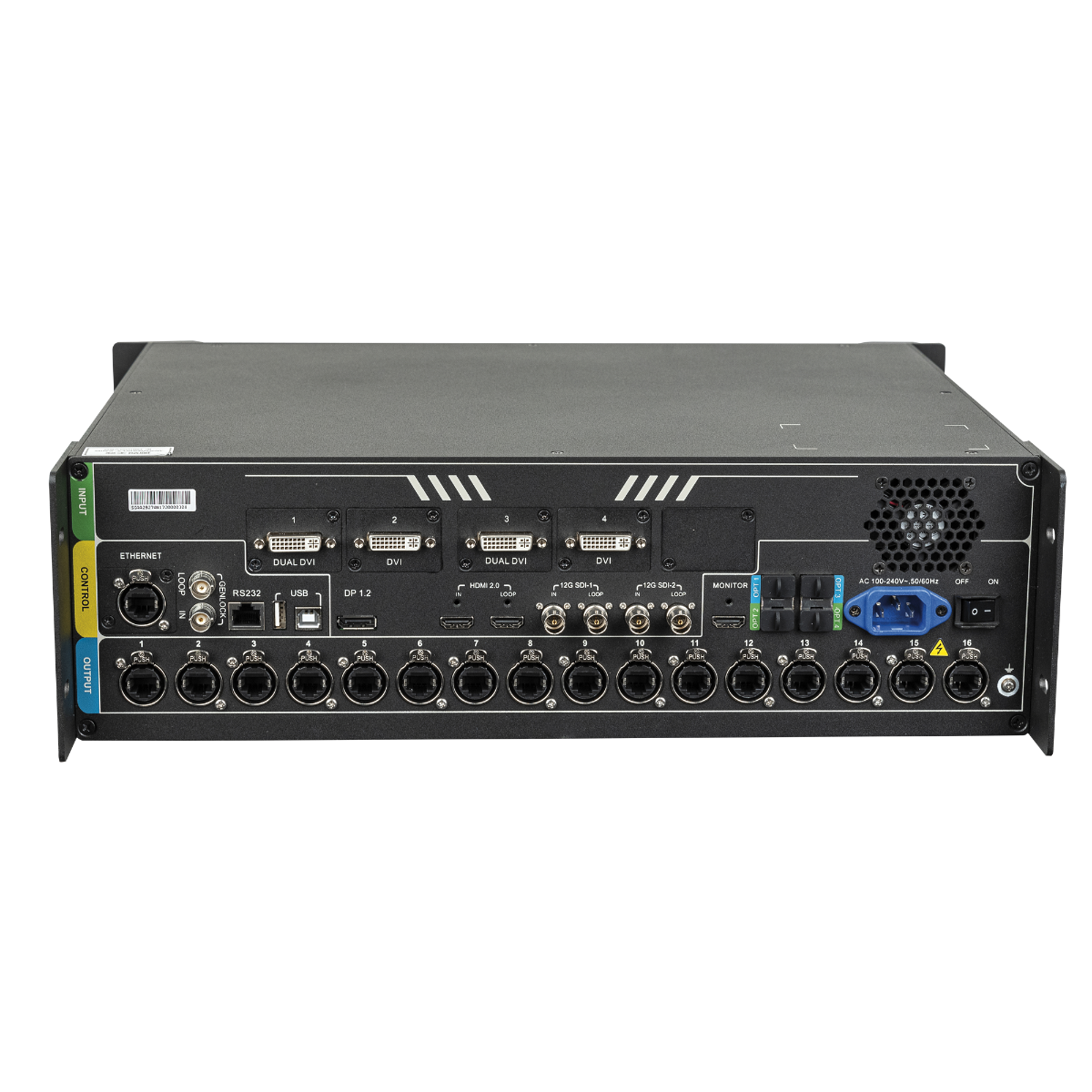

Inputs

• DP 1.1: 1
• HDMI 2.0: 1
• Single Link DVI: 4
• 12G-SDI: 2

Outputs

• HDMI 2.0 (Loop): 1
• 12G-SDI (Loop): 2

Extra Features

• GenLock: In & Out

Control and Programming

• Maximum Loading Capacity: 10.4 Mpx
• Maximum Input Resolution: 2048 x 1152, 3840 x 1080, 3840 x 2160, 4096 x 2160
• Control Options: Ethernet, USB

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 70 W
• Power Connector In: IEC
• Data Connector Out: etherCON

Mechanical Specifications

• Width (Including Handles): 482 mm
• Height (Including Handles): 139 mm
• Depth (Including Handles): 396 mm
• Weight: 6.3 kg
• Flightcase Size: 19"
• Rack Units: 3 U
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium, Metal
• Colour: Black

Product Properties

• Cooling: Active

Thermal Specifications

• Maximum Ambient Temperature: 50 °C
• Operating Humidity: 0-95 %rH
