NovaStar | 10G SFP Module-M

NovaStar - 10G SFP Module-M

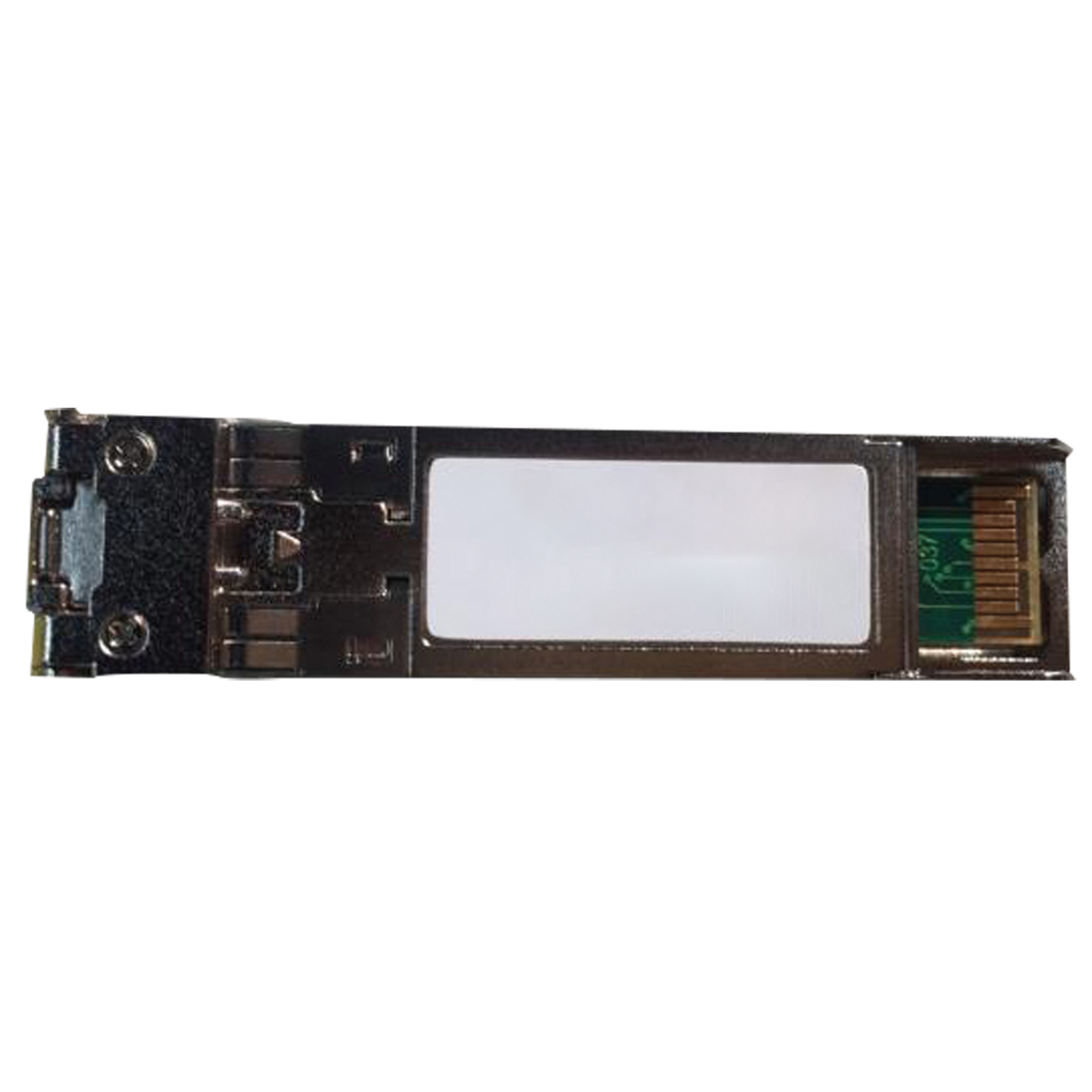

The Novastar 10G SFP Module-MM transceiver modules can be used for all Novastar products which are equipped with SFP fibre port. Such as MCTRL 4 K / CVT4 KS / MCTRL 660PRO / R5 / Pro HD / UHD jr. / UHD. All SFP modules are equipped with an LC connector, and therefore easy to combine with the Highlite fibre optic breakout cables and drums.

Features

• LC-connector

• Supports 9.95 to 11.3 Gb/s bit rates

• Hot-pluggable

• Transfer up to 300 m

Optical

• SFP Module Fibre Connector Type: LC
• Fibre Mode: Multi-mode
• Maximum Transmission Distance: 300 m

Control and Programming

• Control System: Novastar

Electrical Specifications and Connections

• Power Supply: 3 V DC
• Power Consumption: 1.5 W

Mechanical Specifications

• Width (Without Handles): 14 mm
• Height (Without Handles): 12 mm
• Depth (Without Handles): 57 mm
• Weight: 0.02 kg
• IP Rating: IP20 (indoor use only)

Thermal Specifications

• Maximum Ambient Temperature: 70 °C
• Operating Humidity: 0-80 %rH
