NovaStar - MCTRL600

NovaStar - MCTRL600

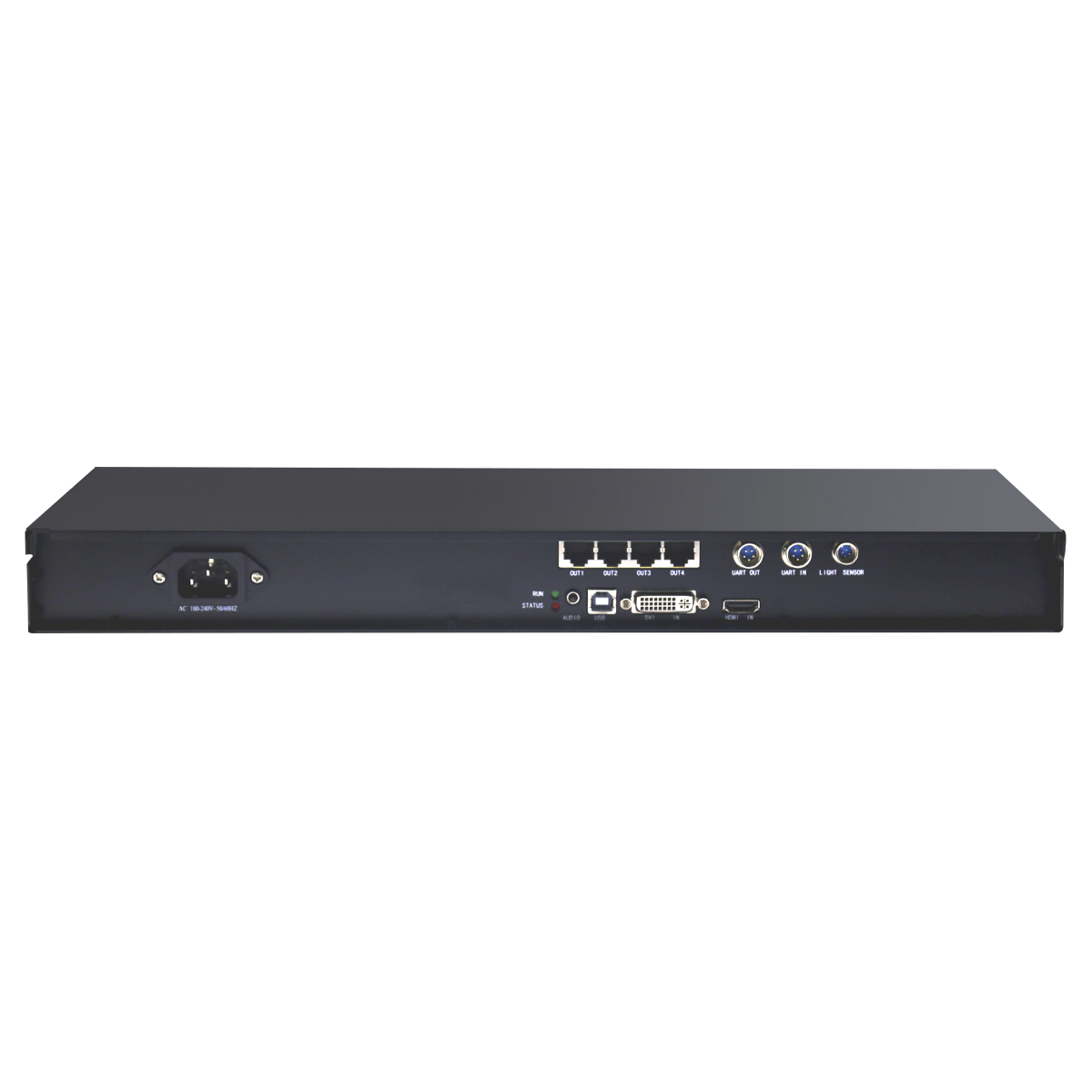

MCTRL600 is a well-known member of the Novastar MCTRL series, it makes setting up your LED Screen with Novastar control system easy and plug and play. It has a built-in HDMI input (HDCP supported) as well a DVI input allowing you to play your content easily and without big hassles on your LED screen. Multiple units can be cascaded for uniform control. Each unit can control up to 2.3 million pixels.

Due to the built-in light sensor input it’s possible to connect a light-sensor(101612) directly to the controller to automatically adjust screen brightness to ambient lighting. Therefore the MCTRL600 is also very suitable for fixed installation projects.

Features

• Cabinet config files saving and sending

• Full HD Pixels capacity

• HDCP & 12-bit HDMI/DVI input

• 8/10/12-bit Colour Depth

• 4x gigabit ethernet output port

Inputs

• HDMI 1.3: 1
• Single Link DVI: 1

Control and Programming

• Control System: Novastar
• Maximum Loading Capacity: 2.3 Mpx
• Maximum Input Resolution: Width and Height can be defined by users
• Control Options: USB

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 16 W
• Power Connector In: IEC
• Data Connector Out: RJ45

Mechanical Specifications

• Width (Including Handles): 482 mm
• Width (Without Handles): 428 mm
• Height (Including Handles): 44 mm
• Height (Without Handles): 44 mm
• Depth (Including Handles): 250 mm
• Depth (Without Handles): 250 mm
• Weight: 2.7 kg
• Flightcase Size: 19"
• Rack Units: 1 U
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium, Metal
• Colour: Black

Product Properties

• Cooling: Passive

Thermal Specifications

• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
• Operating Humidity: 0-95 %rH
