Pharos - TPC BB Touch Panel Controller Black on Black

Pharos - TPC BB

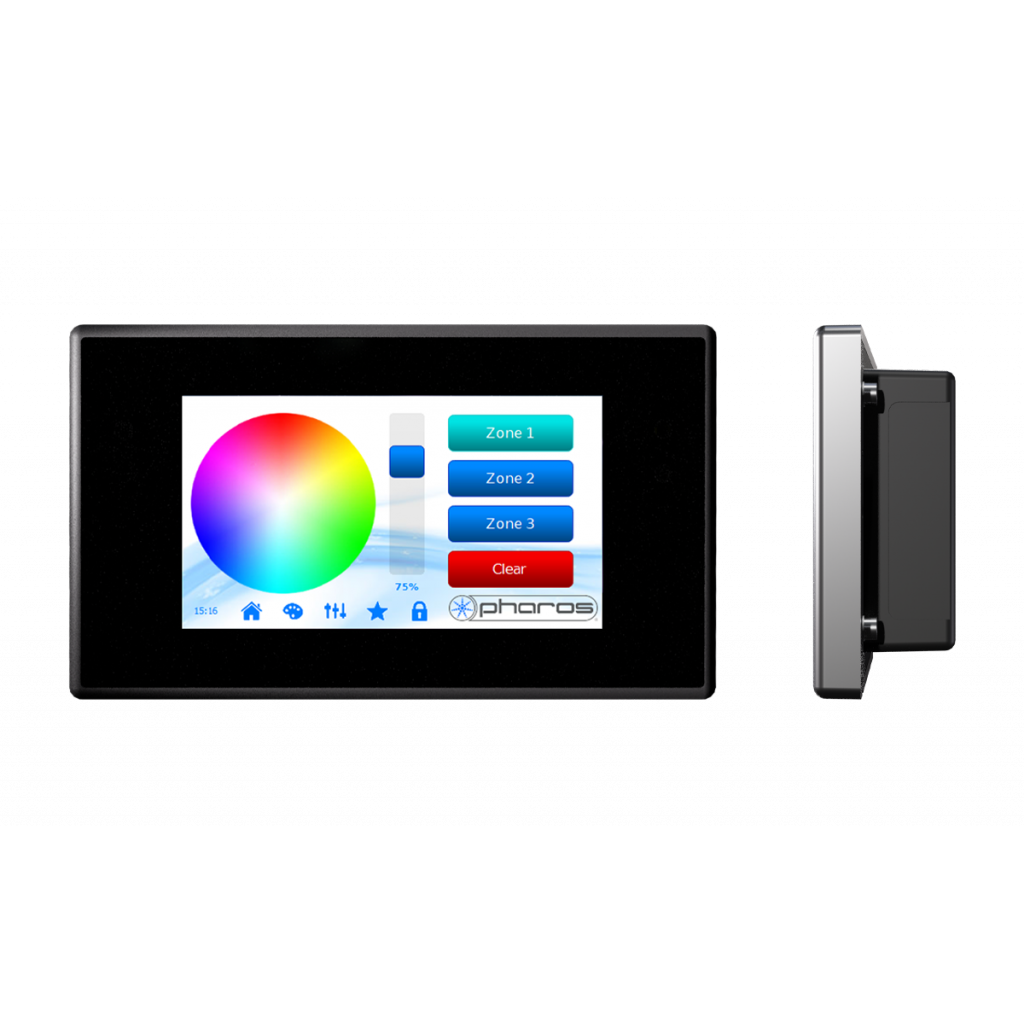

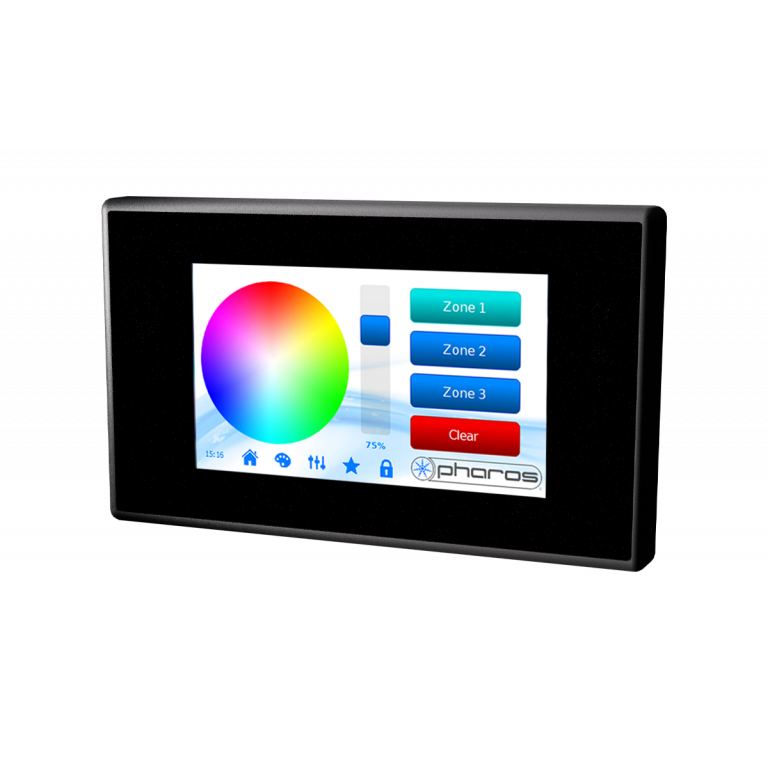

The Pharos TPC (Touch Panel Controller) is an elegant lighting controller with a customisable, 4.3″ capacitive touchscreen, 512 channels of eDMX output and vast interfacing potential, all over a single Power-over-Ethernet (PoE) network connection. TPCs are available in a range of different coloured bezels and overlays.

Touch Interface
A 4.3″ vivid colour capacitive touchscreen makes navigating your project’s controls appealing and intuitive. It’s quick and easy to activate presets, manual overrides, or use a custom colour picker to personalise your lighting. The TPC puts control of your Pharos Designer system at your fingertips.

Designer Engine
The intelligent Designer Engine gives you complete control of your installation. Based on individually controllable and independently running timelines and scenes, it lets you build dynamic, precise, fully customisable pre-programmed lighting displays, all while giving you the freedom of real-time manual overrides, flexible multi-zone control, prioritisation and more.

Scalable
The right fit for every installation. Multiple Pharos Designer Controllers can be seamlessly linked together to work as one via a standard Ethernet network giving impressive scalability. For additional integration options simply add Remote Devices to further extend the network. Whether one Controller or many, it’s all easily programmed using our Designer software.

• Certifications: CE compliant, ETL/cETL listed
• Power: PoE (IEEE802.3af, Class 2) 4W typical
• Data Storage: Removable SD Card (supplied)
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-50% relative, non-condensing
• Ingress: IP40
• Physical: Wall mounted, partly recessed in UK 2-gang 35mm or custom US 2.5” backbox (supplied separately)
• Weight: 0.25 kg (0.55 lbs)
• Shipping: 20 x 15 x 12 cm (8″ x 6″ x 5″) 0.6 kg (1.3 lbs)
• Recovery: Hardware watchdog and recessed reset button
• Warranty: 5 years
• Interfaces:
  • Ethernet

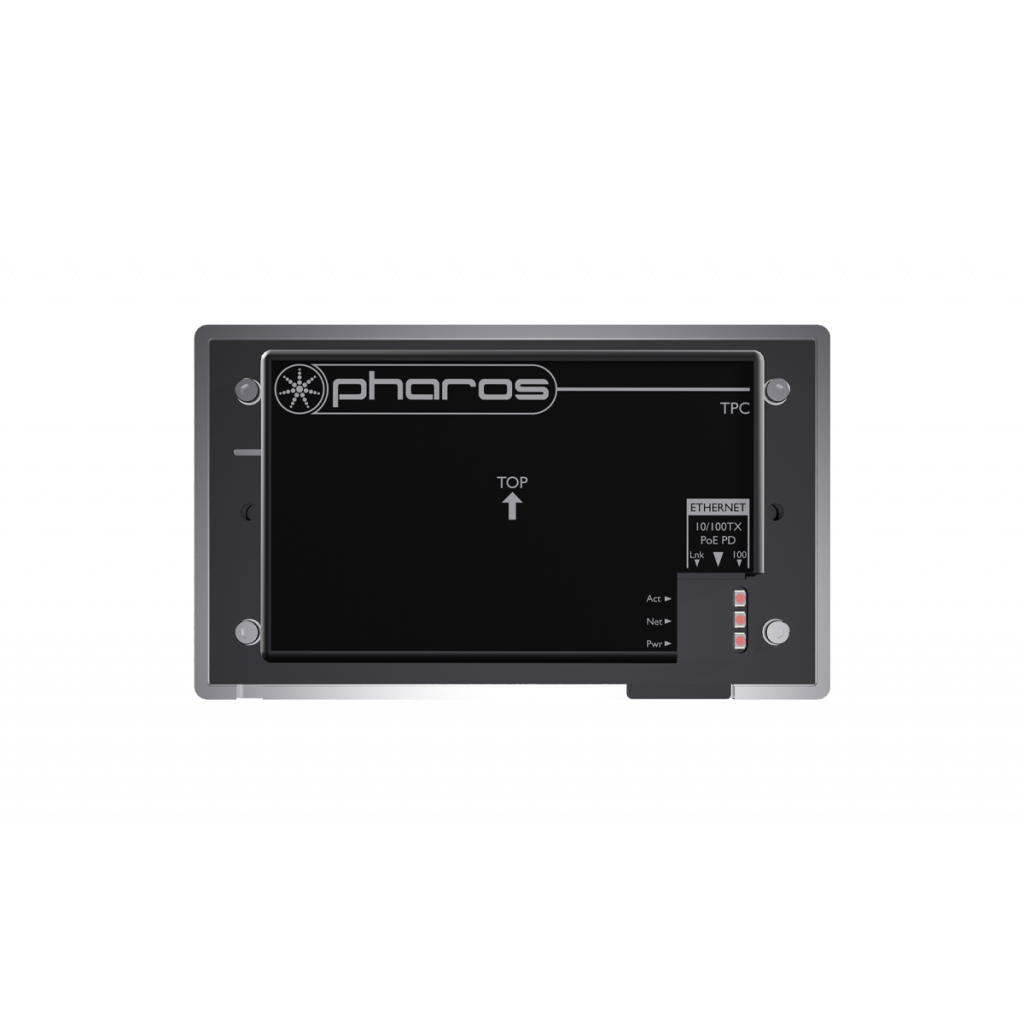

  • RJ45 socket for 10/100Base-TX Ethernet with Link/Data LEDs; Fixed IP or DHCP; Dual IP address for eDMX
• Touchscreen: 4.3” capacitive touch; 480×272 24bpp; 340 cd/m2; magnetic overlay
• IR Sensor: Learning IR sensor for remote control
• Temperature: Built-in ambient temperature sensor
