Pharos - XPT 8 W - Expert Touch 8 - White

Pharos - XPT 8 W - Expert Touch 8 White

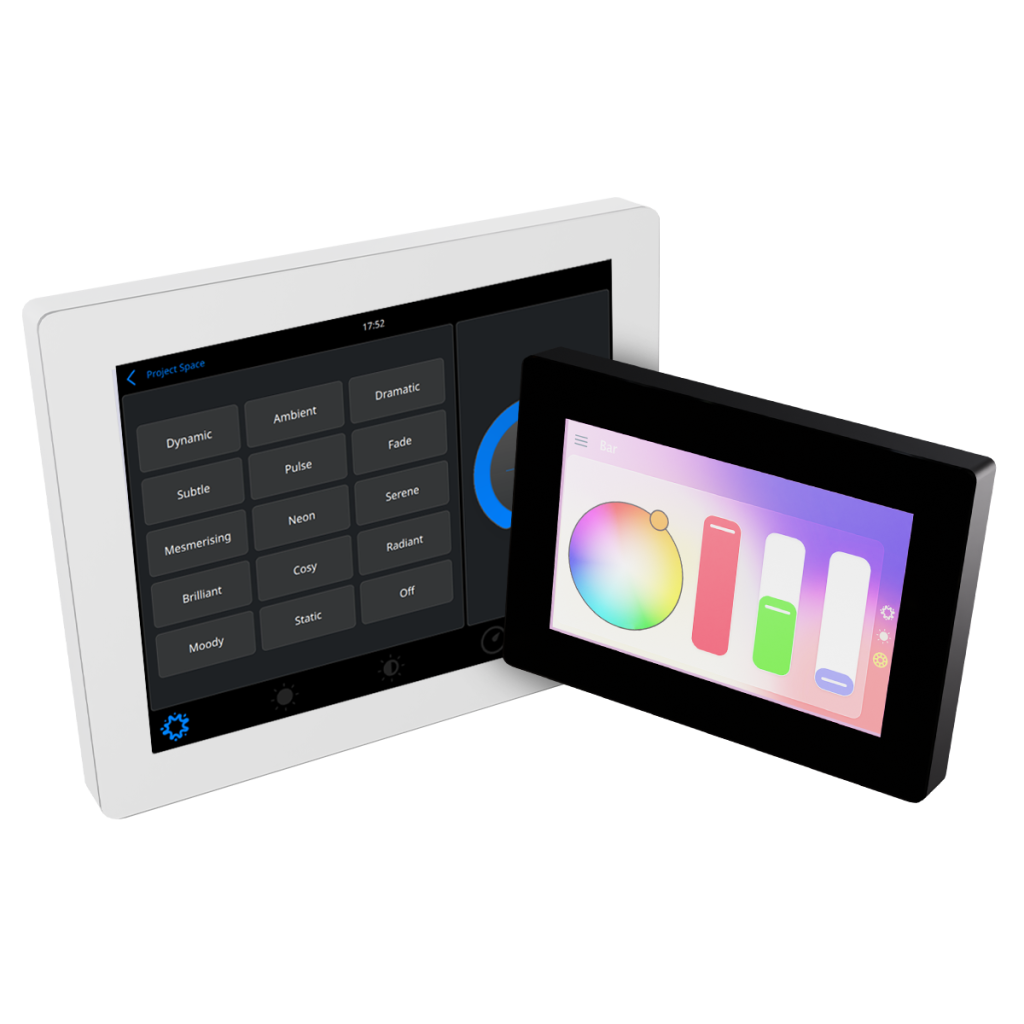

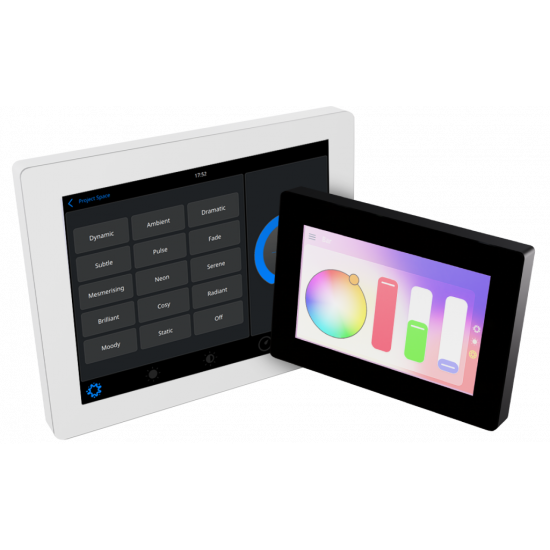

A stunningly elegant wall station with a seamless, uninterrupted glass front plate, providing a beautiful interface if your project requires user interaction. The 8” touchscreen receives automatically generated pages via Expert Control, based on programming in Expert software. Easily control your lighting by activating scenes and adjusting intensity for each Space. With single cable installation, Expert Touch 8 is a Power-over-Ethernet device. Included is a Universal Mounting Plate which is compatible with world-wide back boxes and boasts a secure and ingenious fitting mechanism.

Capabilities

• Orientation: Landscape and portrait
• Layouts: Automatically generated page layouts to suite each project’s settings from specific project Spaces
• Themes: Multiple themes to choose from for automatically generated pages, controls, and navigation
• Skins: Within each theme there are different skins to choose from to fine tune appearance
• Secure access: Keypad option for PIN-code entry with automatic lock
• Commissioning: Interface provided from linked Expert Control, commission with Pharos Expert
• Project Management: Optionally enable interface elements to manage project tags

Interfaces

• Ethernet: Static IP or DHCP
• Touchscreen: 8” capacitive touch; 1024x768 24bpp; 500 cd/m2

Specifications

• Power: PoE (IEEE802.3af, Class 0), 10W typical
• Required: Pharos Expert Control
• Configuration: Pharos Expert v1.1 or later
• Data Storage :Removable MicroSD Card (supplied)
• Recovery: Hardware watchdog and recessed reset button
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-90% relative, non-condensing
• Ingress: IP40
• Physical: Wall mounted, partly recessed with a custom mounting plate that supports UK & EU 2-gang 35mm, or US 2-gang and 3-gang 2.5″ backbox (mounting plate included) 20 x 16 x 3.2 cm (7.9 x 6.3 x 1.3 in) 0.7 kg (1.6 lbs) (ex. mounting plate)
• Shipping: 32 x 24 x 4.5 cm (12.6 x 9.4 x 1.7 in) 1.1 kg (2.5 lbs)
• Reset: Recessed reset button
