Pharos - XPT 5 W - Expert Touch 5 - White
Pharos - XPT 5 W - Expert Touch 5 - White

Pharos - XPT 5 W - Expert Touch 5 - White

€950.26 Excl. Tax
Delivery:
Ca. 2 weeks*
Art. code
PA-20.0036

Pharos - XPT 5 W - Expert Touch 5 White

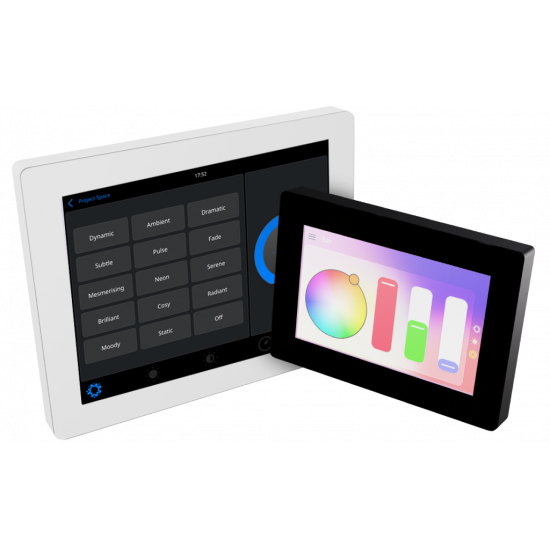

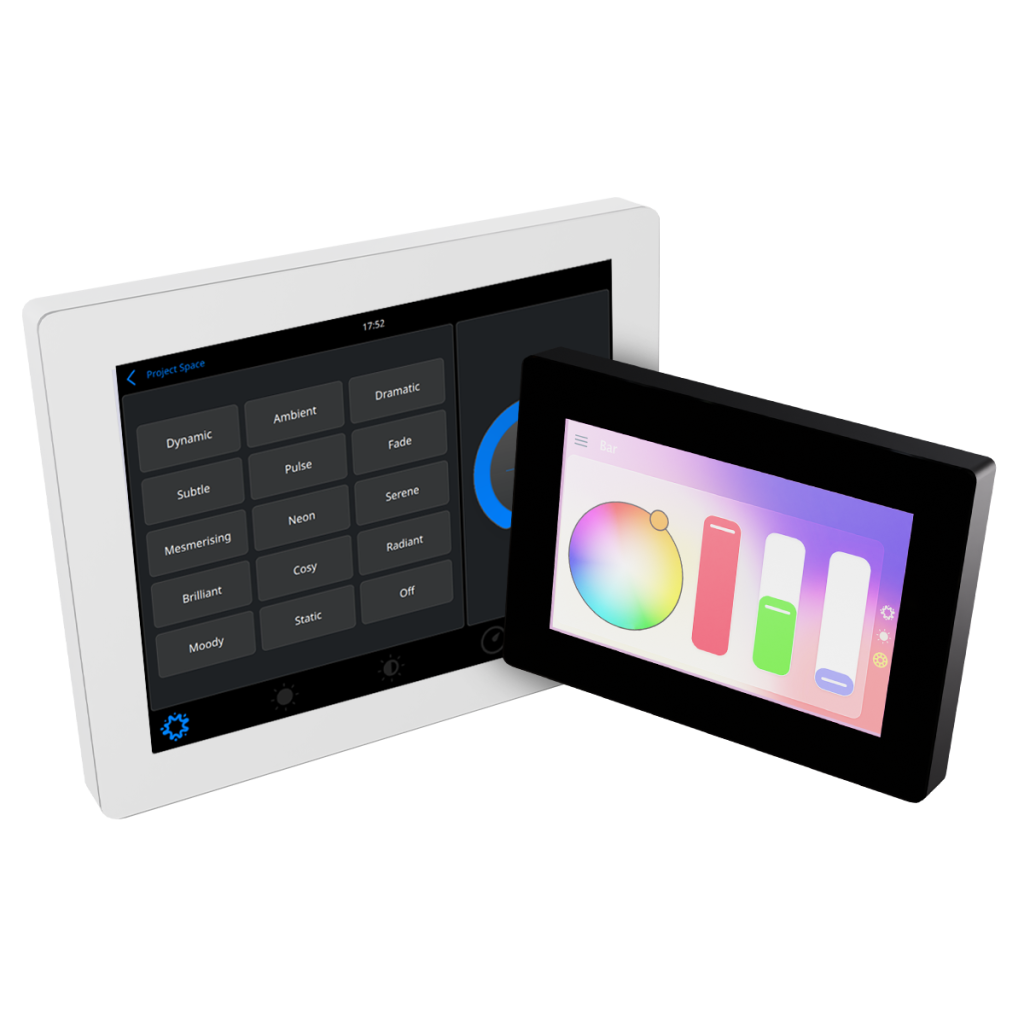

A stunningly elegant wall station with a seamless, uninterrupted glass front plate, providing a beautiful interface if your project requires user interaction. The 5” touchscreen receives automatically generated pages via Expert Control, based on programming in Expert software. Easily control your lighting by activating scenes and adjusting intensity for each Space. With single cable installation, Expert Touch 5 is a Power-over-Ethernet device. Included is a Universal Mounting Plate which is compatible with world-wide back boxes and boasts a secure and ingenious fitting mechanism.

Touch Interface
The Touch 5 features a vivid color 5” display with a high resolution of 800x480. The capacitive touchscreen makes navigating your project’s controls appealing and intuitive. It’s quick and easy to select your space, activate presets, manually override intensity, and even use a color picker to personalize your lighting. Touch 5 puts control at your fingertips.

Straightforward Installation
With a new, innovative wall-mounting system, the Universal Mounting Plate can be fitted to a wide range of regulation backboxes, including UK, US, and EU. The Touch 5 attaches to the mounting plate via a bayonet twist system that is not immediately obvious to an observer. This keeps it firmly fastened with a tool-free installation, and the MicroSD card remains out of reach while installed.

Power-over-Ethernet
As a Power-over-Ethernet (PoE) device, the Touch 5 can be placed at any remote location and only requires a single Ethernet cable that provides both power and data. Pharos Expert Switch provides a coordinating PoE switch from Pharos, which can support up to four Touch devices.

Controller
The Touch 5 requires a Pharos Expert Control and connects to it using standard protocols over an Ethernet network. Expert Control can support up to 32 Expert Touch devices. Pages are generated relating to the Space you assign to your Touch 5, giving you control over just one room or the whole project.

Expert Software
Let Expert Software guide you through setting up and creating your lighting design, with helpers and clear, easy-to-follow processes. Add stations to spaces and choose a theme to suit the location, then let Expert do the rest—generating the pages and controls you want—with preset buttons, color pickers, and intensity sliders.

Reliability
Made for permanent installation and designed for 24/7 operation and reliability. Hardware and firmware are self-sufficient, so no PC needs to be left on site.

Capabilities

  • Orientation: Landscape and portrait
  • Layouts: Automatically generated page layouts to suit each project’s settings from specific project Spaces
  • Themes: Multiple themes to choose from for automatically generated pages, controls, and navigation
  • Skins: Within each theme, there are different skins to choose from to fine-tune appearance
  • Secure Access: Keypad option for PIN-code entry with automatic lock
  • Commissioning: Interface provided from linked Expert Control, commission with Pharos Expert
  • Project Management: Optionally enable interface elements to manage project tags

Interfaces

  • Ethernet: Static IP or DHCP
  • Touchscreen: 5” capacitive touch; 800×480 24bpp; 650 cd/m2

Specifications

  • Power: PoE (IEEE802.3af, Class 0) 7W typical
  • Required: Pharos Expert Control
  • Configuration: Pharos Expert
  • Data Storage: Removable MicroSD Card (supplied)
  • Recovery: Hardware watchdog and recessed reset button
  • Temperature: 0°C to 50°C (32°F to 122°F)
  • Humidity: 10-90% relative, non-condensing
  • Ingress: IP40
  • Physical: Wall-mounted, partly recessed with a custom mounting plate that supports UK 1 & 2-gang 35mm, EU 35mm or US 2.5” backbox (mounting plate included); 14 x 9.7 x 2.8 cm (5.5 x 3.8 x 1.1 in); 0.25 kg (0.6 lbs) (excluding mounting plate)
  • Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in); 0.5 kg (1.1 lbs)
  • Reset: Recessed reset button

Order Code & Variants

  • XPT 5 B: Expert Touch 5 Black (5” wall mount touchscreen interface)
  • XPT 5 W: Expert Touch 5 White (5” wall mount touchscreen interface)
