Pharos - XPS - Expert Switch

Pharos - XPS - Expert Switch

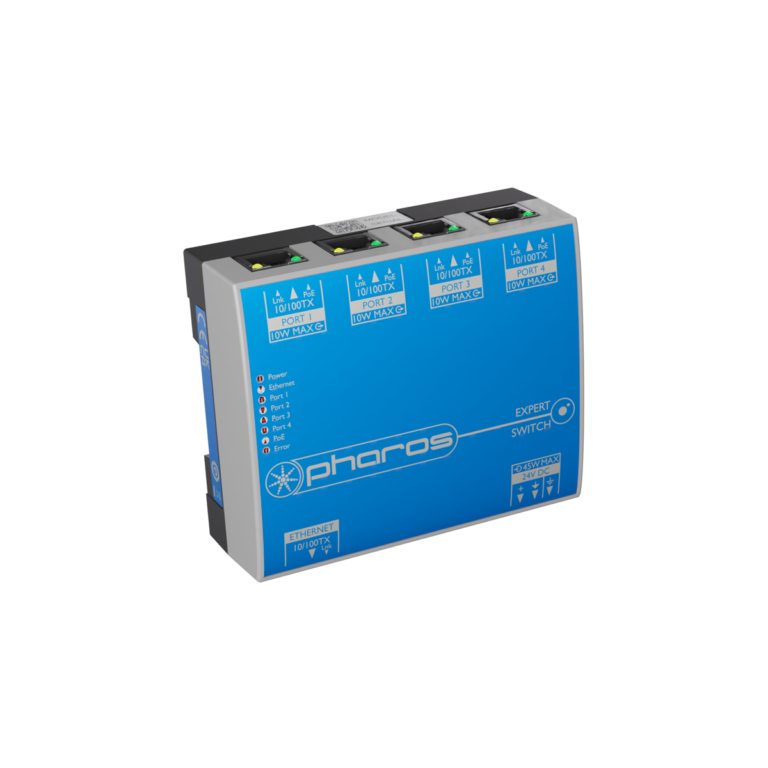

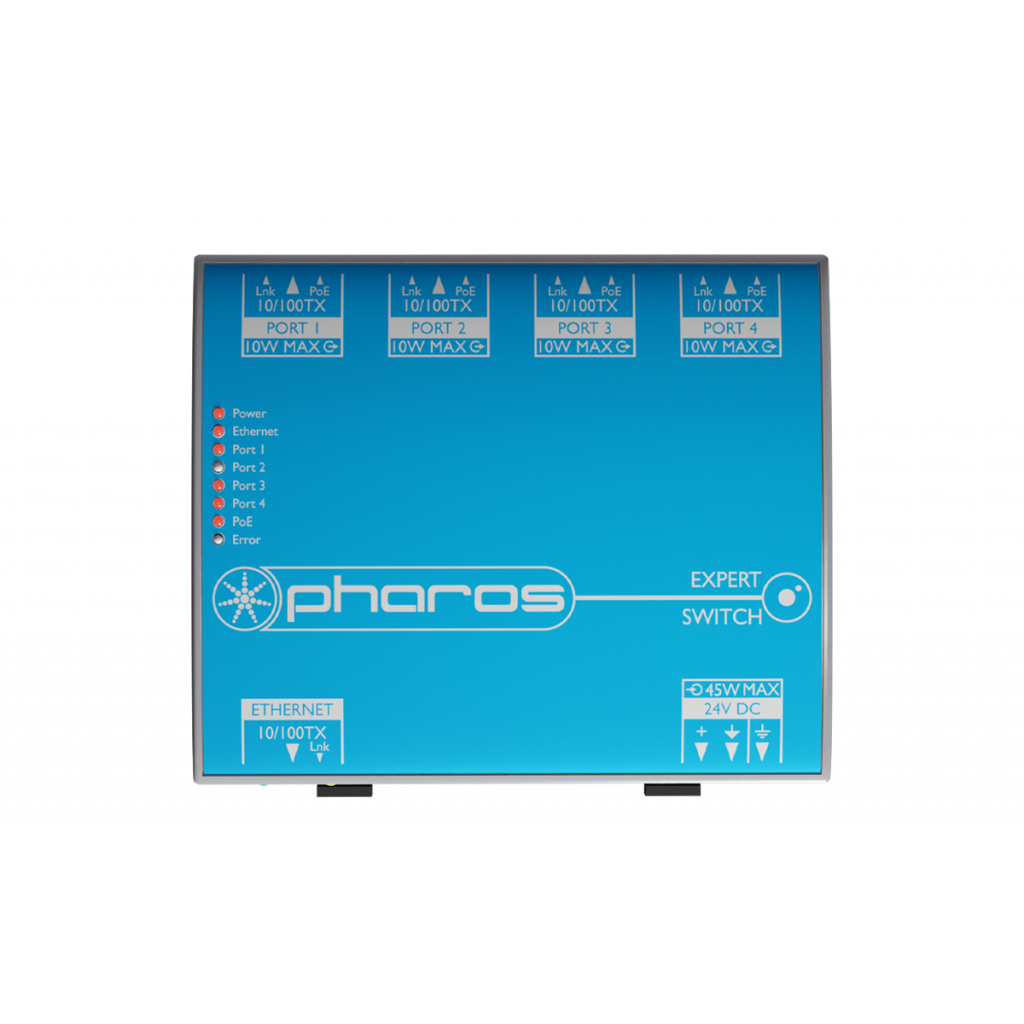

An unmanaged switch with five 10/100Base-TX Ethernet ports with standard RJ45 sockets, perfect for connecting power and data between Designer Controllers and Designer Remote Devices. Four ports are enabled for Power-over-Ethernet with an uplink connection to a computer, network or other non-PoE device. Switch comes in a cost-effective low-profile plastic DIN rail enclosure and only requires a 24V DC power supply.

Features

• Resettable fuses protect each port with the appropriate level of overcurrent protection for the class of device that is attached.
• Automatically detects the requirements of the connected device to provide the correct power level.
• Compatible with all Pharos Designer devices, and can be used with other switches to create larger networks.
• Made for permanent installation, with installer-friendly 0.200” (5.08mm) plug-in rising clamp terminals, a compact enclosure, and easy DIN-rail and keyhole mounting options.

Interfaces

• PoE Four RJ45 sockets for 10/100Base-TX Ethernet with. Power-over- Ethernet (10W max on each port). Supports IEEE 802.3af Type 1- Class 1, 2 and 0 (up to 10W) devices

• Ethernet RJ45 socket for 10/100Base-TX Ethernet
