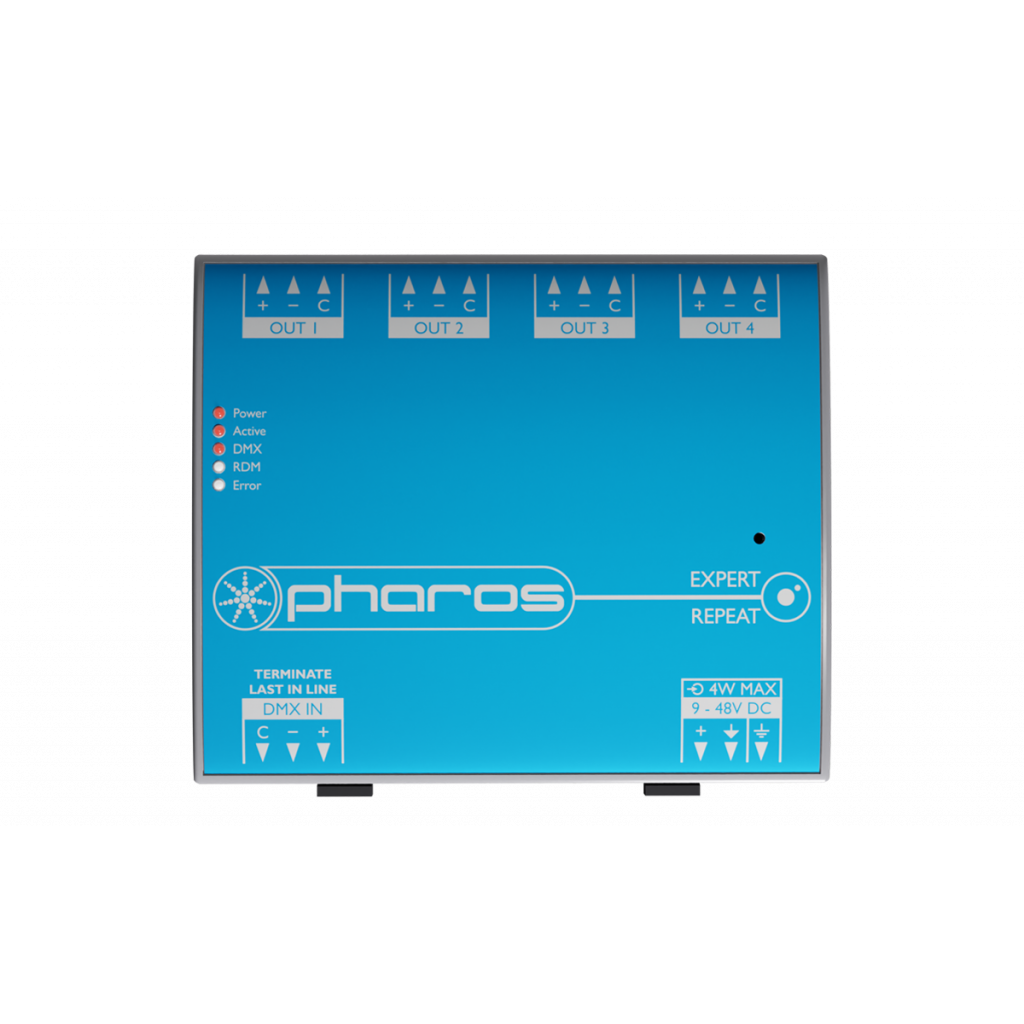

Expert Repeat is a convenient DMX512 splitter / repeater with four output ports compatible with the RDM standard to provide DMX distribution to luminaires. The incoming isolated DMX signal from your Expert Control is regenerated four times on isolated, self-healing ports for distribution to your fixtures. DMX splitters are an essential requirement for most control systems, allowing multiple separate cable runs from a single DMX output and ensuring electrical isolation.

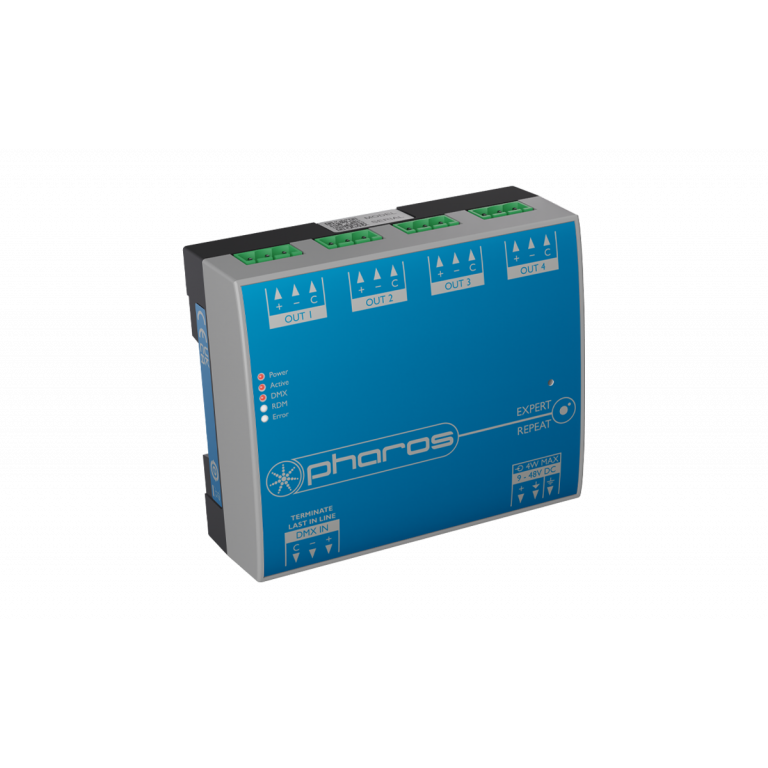

In the same size and look as Expert Control and Expert Switch, this DIN rail mount repeater with install-friendly connectors requires a power supply in the range of 9 to 48V DC.

Features

• Designed and manufactured in the UK, the Repeat is a compact 6 unit wide DIN rail device. The solid-state design ensures unparalleled reliability.
• Made for permanent installation, with installer-friendly 0.200” (5.08mm) plug-in rising clamp terminals, a cost-effective plastic enclosure, and easy DIN-rail mounting.
• The Pharos Repeat, as well as all Pharos devices, comes with a 5 year warranty.

Interfaces

• DMX/RDM input: DMX512 port * (USITT E1.11-2008), RDM compatible
• DMX/RDM outputs: Four DMX512 ports * (USITT E1.11-2008), RDM compatible

Specifications

• Power: 9-48V DC * (4W typical)
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-90% relative, non-condensing
• Ingress: IP40
• Protection: Self-healing ports can withstand continuous AC voltage up to 300V
• Isolation: All Input and Output ports independently galvanically (capacitive) isolated. Isolation protection of 2500VRMS
• Physical: 6 unit wide DIN rail mounting enclosure (35/7.5 rail) 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in) 0.2 kg (0.5 lbs)
• Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in) 0.4 kg (0.9 lbs)
• Reset: Recessed reset button
