Pharos - TPS 5 B - Designer Touch Panel Station 5” - Black Pharos - TPS 5 B - Designer Touch Panel Station 5” - Black Pharos - TPS 5 B - Designer Touch Panel Station 5” - Black
Pharos - TPS 5 B - Designer Touch Panel Station 5” - Black

Pharos - TPS 5 B - Designer Touch Panel Station 5” - Black

€1,006.49 Excl. Tax
Availability:
In stock
Art. code
PA-20.0307

Pharos - TPS 5B

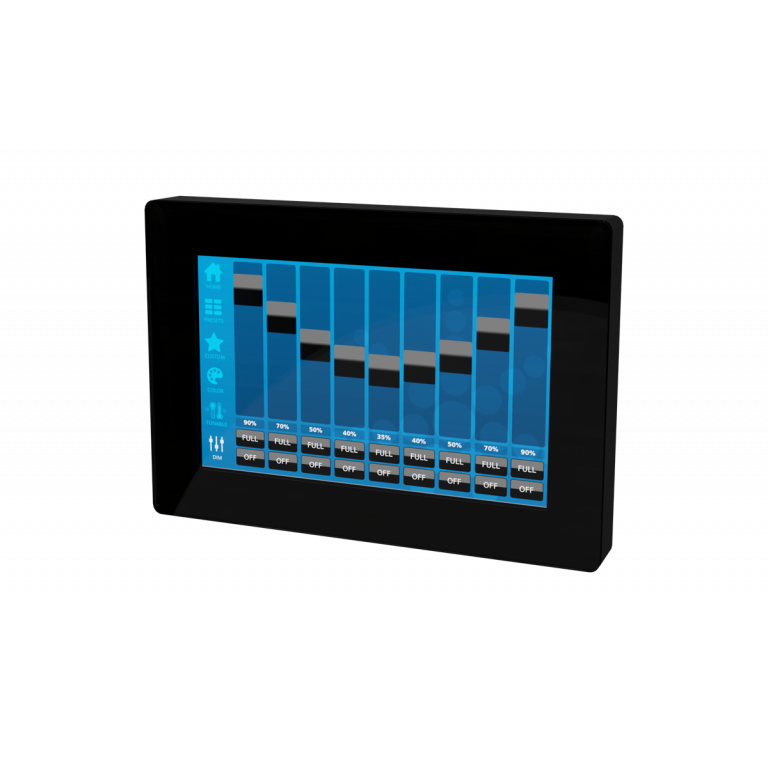

Designer Touch Panel Station 5” Black (Wall mount touchscreen interface). The front panel is a seamless, uninterrupted glass plate available in Black and in White, giving an elegant touch experience, with improvements to its core functionality, touch performance, screen resolution, and vastly superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 5 will be easy to wall mount in your installation, regardless of region.

  • Power: PoE (IEEE802.3af, Class 0), 7W typical
  • Required: Any Pharos Designer Controller
  • Configuration: Pharos Designer 2.9 or later
  • Data Storage: Removable MicroSD Card (supplied)
  • Temperature: 0°C to 50°C (32°F to 122°F)
  • Humidity: 10-90% relative, non-condensing
  • Ingress: IP40

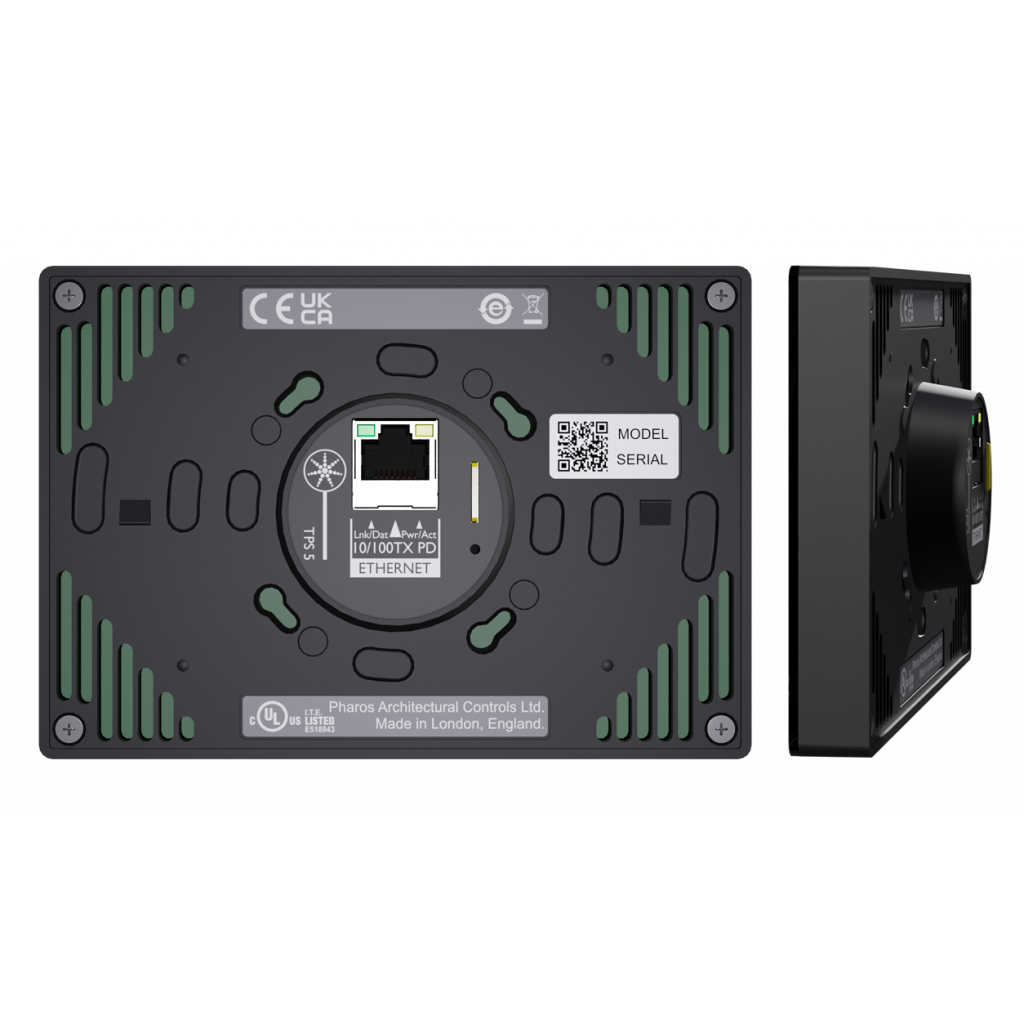

  • Physical: Wall mounted, partly recessed with a custom mounting plate that supports UK 1 & 2-gang 35mm, EU 35mm or US 2.5” backbox (mounting plate included) 14 x 9.7 x 2.8 cm (5.5 x 3.8 x 1.1 in) 0.25 kg (0.6 lbs) (ex. mounting plate)
  • Shipping: 19.5 x 15 x 7.5 cm (8 x 6 x 3 in) 0.5 kg (1.1 lbs)
  • Recovery: Hardware watchdog and recessed
    reset button
More Information
Brand Pharos
