Pharos - TPS 8 B - Designer Touch Panel Station 8? - Black

Pharos - TPS 8 B

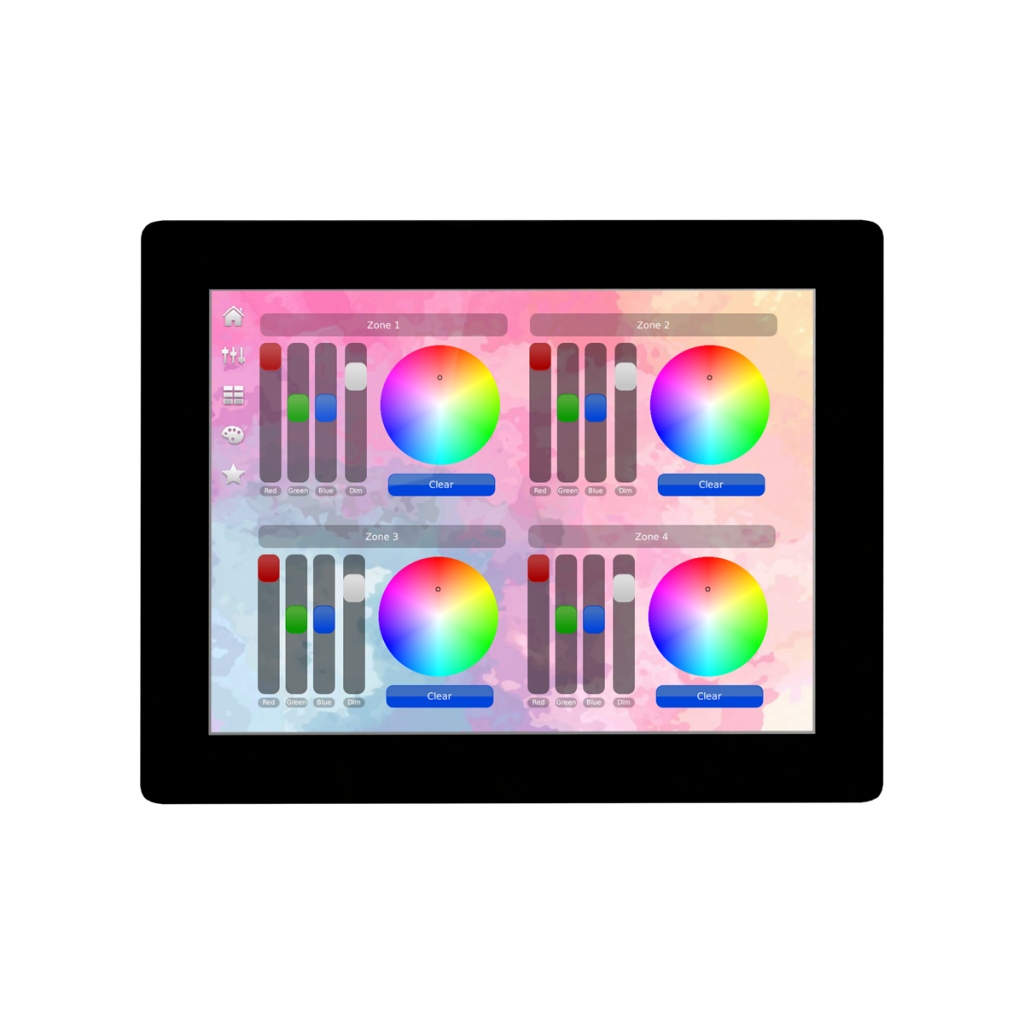

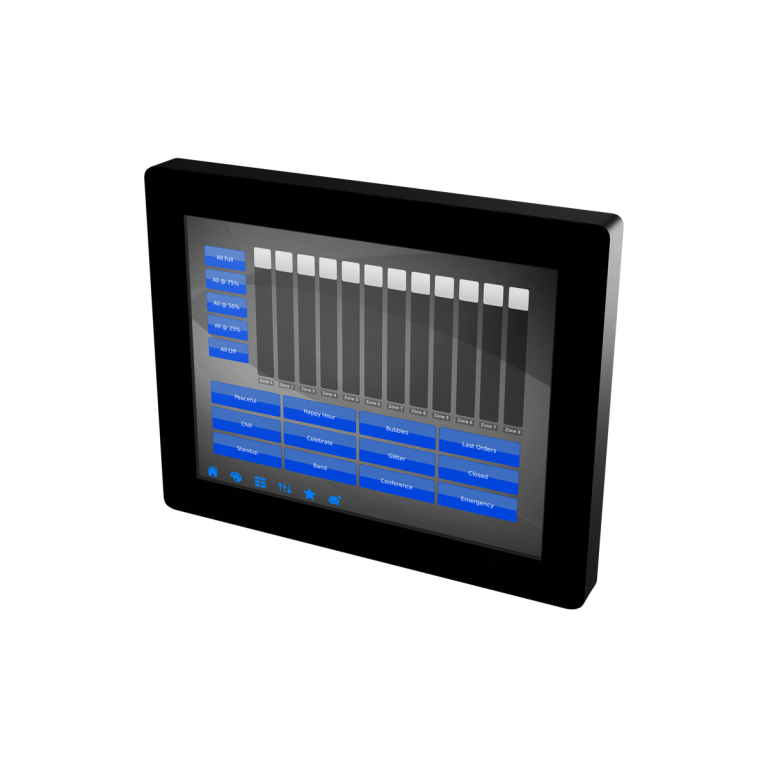

The Pharos TPS 8 (Touch Panel Station 8”) is a new, spacious, elegant interface with a customisable, 8” capacitive touchscreen, compatible with any Pharos Designer Controller. The front panel is a seamless, uninterrupted glass plate available in Black and in White, giving an elegant touch experience, and superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 8 will be easy to wall mount in your installation, regardless of region.

Capabilities

• Orientation: Portrait or landscape
• Layouts: Free editable layouts
• Pages: Any number of pages, although performance may be affected by complexity and number
• Navigation: Convenient and custom navigation via configurable navigation bars
• Fonts: Custom font support, including fonts with extended character sets e.g. Arabic, Chinese, Cyrillic, Japanese and Korean.
• Themes: Wide selection of themes available to download, or create your own with Designer’s theme editor
• Controls: A wide array of customisable buttons, sliders, colour pickers, labels, keypads and clocks
• Flexible Integration: Fully integrated with Designer Trigger, so button states, graphics, and captions can change according to any number of preset triggers
• Secure Access: Keypad for PIN-code entry; multiple user levels
• Commissioning: Commissioned with Pharos Designer 2.10 or later

Specifications

• Power: PoE (IEEE802.3af, Class 0), 10W typical
• Required: Any Pharos Designer Controller
• Configuration: Pharos Designer 2.10 or later
• Data Storage: Removable MicroSD Card (supplied)
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-90% relative, non-condensing
• Ingress: IP40

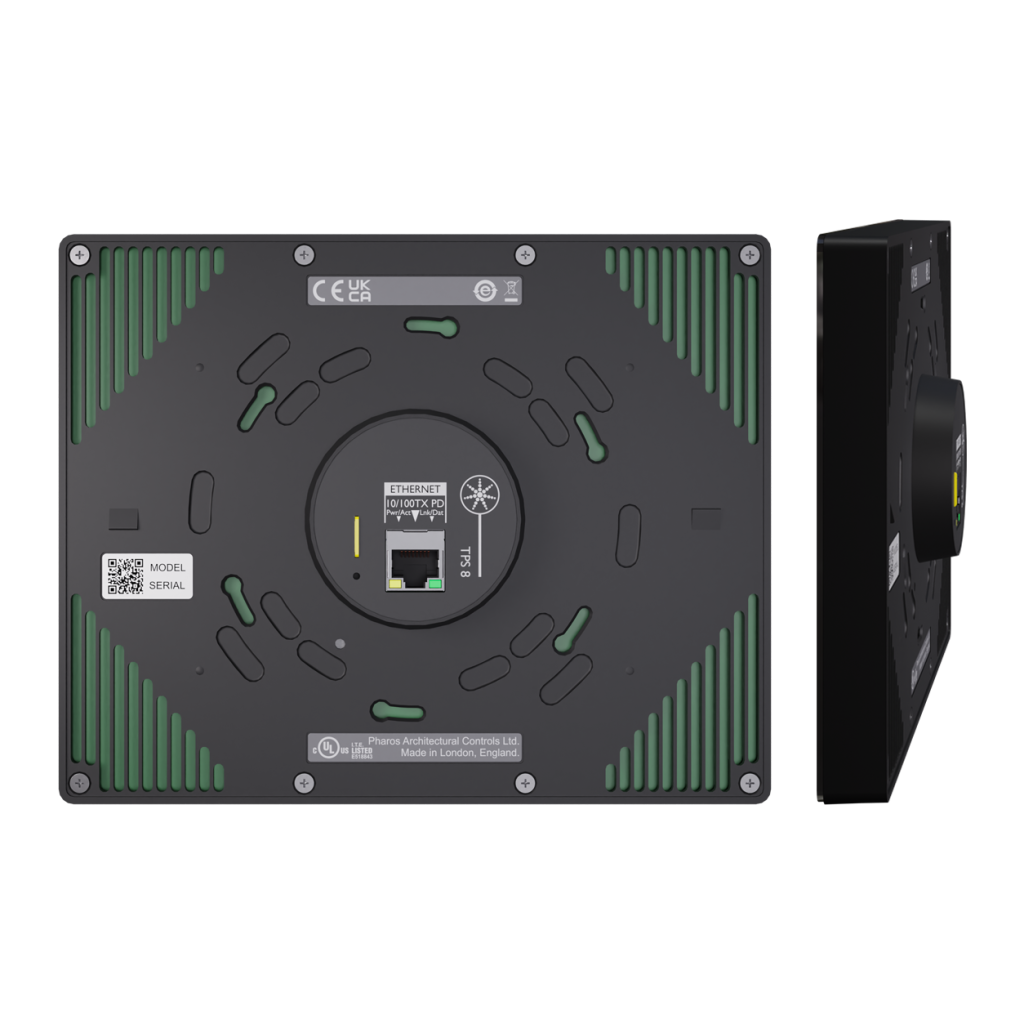

• Physical Wall: mounted, partly recessed with a custom mounting plate that supports UK & EU 2-gang 35mm, or US 2-gang and 3-gang 2.5″ backbox (mounting plate included), 20 x 16 x 3.2 cm (7.9 x 6.3 x 1.3 in), 0.7 kg (1.6 lbs) (ex. mounting plate)
• Shipping: 32 x 24 x 4.5 cm (12.6 x 9.4 x 1.7 in), 1.1 kg (2.5 lbs)
• Recovery: Hardware watchdog and recessed reset button
