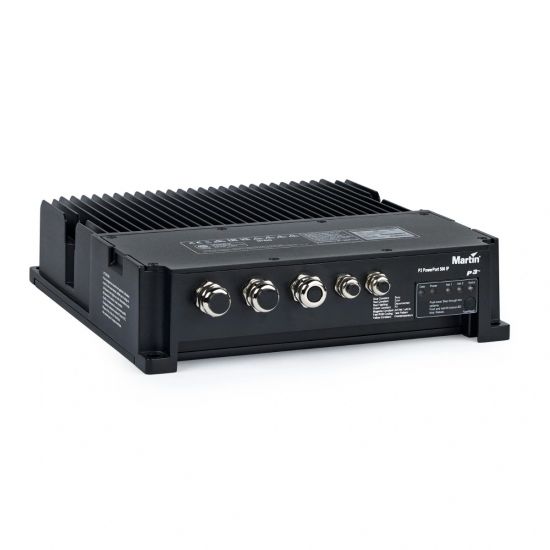

The Martin P3 PowerPort 500 IP Install delivers seamless power and data to Martin’s Creative LED fixtures and is ideal for indoor/outdoor install applications. It merges stable power delivery with high-speed, high-capacity data distribution, simplifying fixture deployment. The housing is designed for installation in the most harsh environments.

To ensure utmost flexibility for designers and integrators, it can be driven using industry standard protocols, including Art-Net and sACN as well as Martin’s award-winning P3 control protocol. It requires no local configuration or setup, enabling easy deployment and allowing power supplies to be located at significant distances from the lighting fixtures. It supports longer cables, more fixtures per daisy chain, and split branches. The built-in network switch eliminates the need for third-party switches, and power limiting control increases the number of fixtures per daisy-chain while implementing energy-saving measures.

The P3 PowerPort 500 IP Install is a robust and reliable solution, as it protects all inputs and outputs against overload and surge conditions and built-in fail-safe bypass technology prevents single unit failures from disrupting the entire network. In addition, it is a single unit that provides data and power over a single cable to the fixtures. Furthermore, it features local status indication LEDs and a test button, eliminating the need for a person to be physically located at the controller or computer.

All P3 PowerPort-enabled Creative LED fixtures can be paired with the P3 PowerPort 500 IP Install, even on the same daisy-chain.

Features

• Indoor/Outdoor power+data supply unit for install Martin Creative LED fixtures
• Ideal for install applications
• Features 1 power+data output for connection of fixtures
• Built-in network switch for easy daisy-chaining
• Status LEDs providing real-time feedback
• Local test button for easy diagnostics
• Built-in power-control enables more fixtures per daisy-chain when full output is not needed
• Built-in Hibernation mode enables energy-saving when system not in use
• Compatible with Art-Net, sACN and Martin P3
• Fitted with internal wiring terminals, to facilitate customization of cable lengths on-site
• Can be wall-mounted
• IP66 rated

Physical

• Width: 325.0 mm (12.8 in)
• Height: 84.0 mm (3.3 in)
• Depth: 385.0 mm (15.2 in)
• Weight: 9.5 kg (20.9 lbs)

Control and Programming

• Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
• Protocol Detection: Automatic
• Settings and Feedback: P3 or RDM over Art-Net
• Unit identification: User-settable ID number
• Art-Net Compliance: Art-Net 1, 2, 3 and 4 (including RDM over Art-Net)
• sACN Compliance: ANSI E1.31 - 2018
• Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
• Ethernet Transceiver IN: 100/1000 Mbit (with fail-safe bypass to Ethernet THRU)
• Ethernet Transceiver THRU: 100/1000 Mbit (with fail-safe bypass to Ethernet IN)
• Ethernet Transceiver OUT: 100 Mbit
• Firmware Update: Via Ethernet using Martin Companion or P3 System Controller

Control/User Interface – External

• Power Out Status: 1× Green LED
• Ethernet Out Status: 1× Amber LED
• Ethernet In/Thru Status 1–2: 2× Green+Amber LED
• Device Status: 1× RGB LED
• Device test and reset: Pushbutton to call up test patterns on fixtures connected to DCE output and reset device

Control/User Interface – Internal

• Fixtures Power Mode: DIP switch to force all connected fixtures in normal power, half power, or let controller decide (via P3 or RDM)
• External User Interface Disable: DIP switch to disable all five external status LEDs and the external pushbutton

Construction

• Color: Matte Black
• Housing Material: Aluminium
• Protection Rating: IP66
• NEMA Enclosure Rating: Type 3
• Impact Resistance: IK08
• Corrosion Resistance: ISO 12944-6:2018; C5 High, test regime ISO 9227, 1440 h
• Vibration Resistance: 1.0 g sinusoidal (IEC 60068-2-6) and 0.7 g RMS random (IEC 60068-2-64)

Installation

• Orientation: Any
• Mounting: Flanges for installation on flat surface
• Location: Indoor or permanent outdoor

Connections

• Power In/Thru: Toolless terminal block
• Power Cable Glands: 2× M20×1.5 (power in/thru, supports 8–13 mm cables), incl. closing plug
• Ethernet In/Thru: 2× toolless splice connection
• Ethernet Cable Glands: 2× M12×1.5 (ethernet in/thru, supports 5–8 mm cables), incl. closing plug
• DC Power Output: Toolless terminal block
• Network Output: Toolless splice connection
• DC/Network Cable Gland: 1× M20×1.5 (supports 6.5–10.5 mm cables), incl. closing plug
• Surge Protection: 4 kV

Output Ports

• Quantity: 1
• Power: 48 VDC / 10 A
• Ethernet: 100 Mbit (P3, sACN, Art-Net)

Electrical

• AC Power: 100–277 V AC nominal, 50/60 Hz
• Power Supply Unit: Auto-ranging electronic switch mode
• Typical Half-cycle RMS Inrush Current @ 230 V, 50 Hz: 7.7 A
• Typical Earth-leakage Current: 0.56 mA
• Power Factor: 0.99 @ 100/120/208/230/240/277 V
• Max Current Draw: 5.5 A @ 100/120 V; 3.0 A @ 208/230/240/277 V
• Typical Current Draw: 5.3 A @ 100/120 V; 2.8 A @ 208/230/240/277 V *
• Power Consumption – Maximum: 500 W
• Power Consumption – Typical: 500 W *
• Power Consumption – Idle: 11 W *
• Power Consumption – Hibernation: 10 W *
• * Measurements at nominal voltage; allow ±10%. Typical = output at full capacity with all connected fixtures at full-output white. Idle = output at full capacity with all connected fixtures at zero output. Hibernation = output disabled; wake-up required.

Thermal

• Cooling: Convection
• Maximum Ambient Temperature (Ta max): 55 °C (131 °F)
• Minimum Ambient Temperature (Ta min): -30 °C (-22 °F)
• Maximum Surface Temperature @ 40 °C ambient (steady state): 61 °C (142 °F)
• Typical Heat Dissipation (calculated, ±10%): 164 BTU/hr

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• FSC: Certified cardboard inlay and outer packaging

Approvals

• Global CB Certification / IECEE: IEC 62368-1
• EU Safety: EN 62368-1
• EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
• US Safety: UL 62368-1
• US EMC: FCC Part 15 Class B
• Canadian Safety: CSA C22.2 No. 62368-1
• Canadian EMC: ICES-003 Class B
• Australia/New Zealand: RCM
• United Kingdom: UKCA

Compatible Fixtures

• VDO Sceptron XB
• Exterior Dot-1 Pro (via Exterior DC-Feeder)
• Exterior Dot-4 Pro (via Exterior DC-Feeder)
• Exterior Dot-9 Pro (via Exterior DC-Feeder)
• Exterior Dot-HP Pro

Included Items

• 1× Multi-Language Safety & Installation Manual
• Closing plugs installed in all cable glands

Related Items

• P3 PowerPort 2000 — P/N MAR-90721200
• P3 PowerPort 500 IP Rental — P/N MAR-90721201
• DCE PSU 240 IP — P/N MAR-90721203
• DCE DataSplitterBooster IP — P/N MAR-90721204
• Martin Companion Firmware Upload, Addressing and Stand-Alone Programming Software — free download from martin.com
• P3-175 System Controller — P/N MAR-90721100
• P3-275 System Controller — P/N MAR-90721101
• P3-PC System Controller — free download from martin.com

Accessories

• Pre-Assembled Hybrid DCE Cables
• DC + Ethernet Cable DCE–DCE 1 m — P/N MAR-91700100
• DC + Ethernet Cable DCE–DCE 2.5 m — P/N MAR-91700101
• DC + Ethernet Cable DCE–DCE 5 m — P/N MAR-91700102
• DC + Ethernet Cable DCE–DCE 10 m — P/N MAR-91700103
• DC + Ethernet Cable DCE–DCE 25 m — P/N MAR-91700104
• Bulk Hybrid DCE Cables
• DC + Ethernet Cable 100 m — P/N MAR-91700105
• DC + Ethernet Cable LSZH 100 m — P/N MAR-91700106
• Field-Installable DCE Connectors
• Field-installable Connector DCE Male — P/N MAR-91700107
• Field-installable Connector DCE Female — P/N MAR-91700108
• Closing Caps for DCE Connectors
• Closing Cap Male DCE Connector — P/N MAR-91700109
• Closing Cap Female DCE Connector — P/N MAR-91700110
• Hybrid DCE Adapters
• DC + Ethernet Adapter DCE Male–Male — P/N MAR-91700111
• DC + Ethernet Adapter DCE Female–Female — P/N MAR-91700112
• DC + Ethernet Adapter EtherCON + Wires to DCE — P/N MAR-91700113
• DC + Ethernet Adapter DCE to EtherCON — P/N MAR-91700114

Ordering Information

• P3 PowerPort 500 IP Install — P/N MAR-90721202
