Martin | P3 Powerport 1000 IP - Rental

Martin | P3 PowerPort™ 1000 IP, Rental

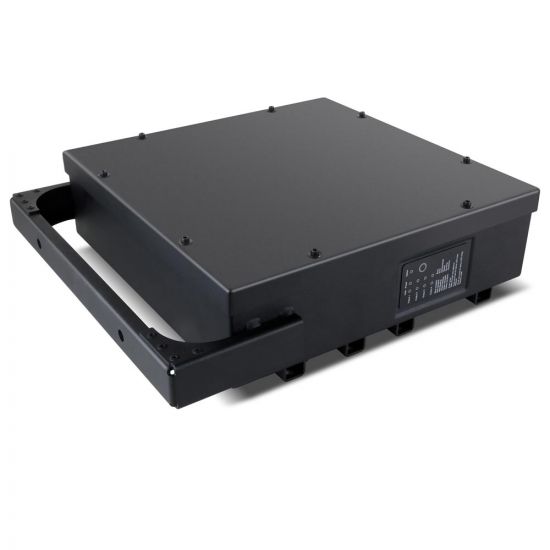

The P3 PowerPort 1000 IP Rental is an integrated power supply and data processor for Martin’s rental range of creative LED video products, including the VDO Sceptron™ and VC-Dots™. When driven by one of Martin’s award-winning P3™ System Controllers™, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive. A full outdoor rating with robust IP65-rated connectors make the product perfect for outdoor rental installations.

Features

• Power and data processor for all Martin’s rental market creative LED video products
• Flexible integration: can be located remotely, indoors or outdoors
• Easy cabling and configuration
• P3 image processing technology
• Set-up and addressing via P3 System Controller family
• No local configuration needed
• P3 input and thru to allow daisy-chaining
• 4 hybrid power/data output ports
• Truss-mountable or free-standing
• Can be located up to 50 m away from the creative LED video products
• IP65

Physical

• Length: 520 mm (20.5 in.)
• Width: 460 mm (18.2 in.)
• Height: 146 mm (5.8 in.)
• Weight: 8.5 kg (18.8 lbs.)

Control and programming

• Addressing and status: Via P3 System Controller
• Mapping: Via P3 System Controller
• Firmware update: Via P3 System Controller

Control/user interface

• Device status: Multicolor status LED
• Power output status: Four LEDs
• Data output status: Four LEDs
• Device test and reset: Pushbutton to call up local test patterns and reset device
• Status LEDs and pushbutton can be disabled remotely if required.

P3 signal protocol

• Signal type: Gigabit Ethernet
• Protocol : Proprietary Martin P3™
• Hot pluggable: Yes, electrically isolated at all connections
• Cable type: Ethernet, CAT 5e or better
• Cable length: Up to 100 m (328 ft.) between any 2 devices, extendable with Ethernet switch or conversion to fiber

System integration

• VDO Sceptron™ family
• VDO Fatron™ family
• VDO Dotron™ family
• Exterior PixLine™ family
• Exterior Dot-HP™ family
• VC-Grid™ family
• VC-Strip™ family
• VC-Dot™ family via VC-Feeder™

Construction

• Housing: Aluminum
• Color: Matte black
• Protection rating: IP65
• NEMA enclosure rating: Type 3
• Effective Projected Area (EPA): 0.22 m2
• Corrosion resistance: C5-M (very high corrosivity / marine, ISO 12944)
• RoHS compliant

Installation

• Mounting: Flown from rigging clamps or free-standing
• Orientation: Any, except with connectors facing up or lid facing down

Connections

• Power input: Neutrik PowerCON TRUE1
• P3 data in/out: Neutrik EtherCON Cat 6
• Combined power & data out: Four 6-pin custom (BBD) IP66-rated sockets

Electrical

• AC power: 120-240 V nominal, 50/60 Hz
• Typical total power consumption: 1000 W (including full load of connected display devices, all at full intensity)
• Typical half-cycle RMS inrush current: 20.9 A (At 230 V, 50 Hz)
• Power supply unit: Auto-ranging electronic switch-mode
• Total power consumption in idle state (at 25° C, all connected devices powered off): 22 W

Thermal

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 55° C
• Minimum ambient temperature (Ta min.): -30° C
• Total heat dissipation (calculated, +/- 10%): 345 BTU/hr. (not including display devices but with system at full load)

Approvals

• EU safety: EN 60950
• EU EMC: EN 55032, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
• US safety: ANSI/UL 60950-1
• Canadian safety: CSA C22.2 No. 60950-1
