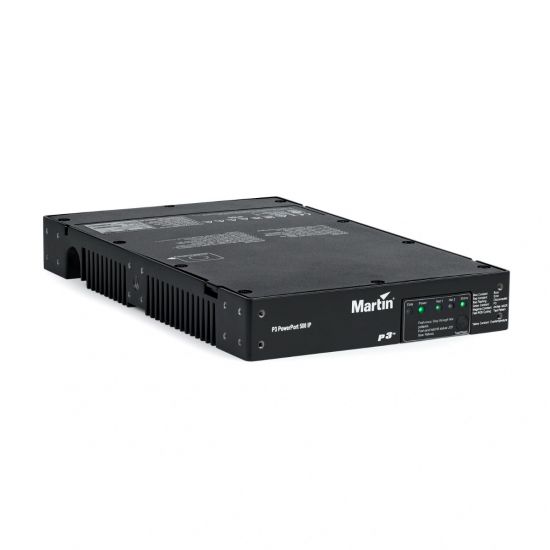

Martin | P3 Powerport 500 IP Rental

Martin | P3 Powerport 500 IP Rental

The Martin P3 PowerPort 500 IP Rental delivers seamless power and data to Martin’s Creative LED fixtures and is ideal for indoor/outdoor rental applications. It merges stable power delivery with high-speed, high-capacity data distribution, simplifying fixture deployment. The housing caters to rack-, truss- and wall-installation, for maximum deployment flexibility.

To ensure utmost flexibility for designers and integrators, it can be driven using industry standard protocols, including Art-Net and sACN as well as Martin’s award-winning P3 control protocol. It requires no local configuration or setup, enabling easy deployment and allowing power supplies to be located at significant distances from the lighting fixtures. It supports longer cables, more fixtures per daisy chain, and split branches. The built-in network switch eliminates the need for third-party switches, and power limiting control increases the number of fixtures per daisy-chain while implementing energy-saving measures.

The P3 PowerPort 500 IP Rental is a robust and reliable solution, as it protects all inputs and outputs against overload and surge conditions and built-in fail-safe bypass technology prevents single unit failures from disrupting the entire network. In addition, it is a single unit that provides data and power over a single cable to the fixtures. Furthermore, it features local status indication LEDs and a test button, eliminating the need for a person to be physically located at the controller or computer.

All P3 PowerPort-enabled Creative LED fixtures can be paired with the P3 PowerPort 500 IP Rental, even on the same daisy-chain.

Features

• Indoor/Outdoor power+data supply unit for rental Martin Creative LED fixtures
• Ideal for rental applications
• Features 1 power+data output for connection of fixtures
• Built-in network switch for easy daisy-chaining
• Status LEDs providing real-time feedback
• Local test button for easy diagnostics
• Built-in power-control enables more fixtures per daisy-chain when full output is not needed
• Built-in Hibernation mode enables energy-saving when system not in use
• Compatible with Art-Net, sACN and Martin P3
• Fitted with connectors for easy deployment
• Can be truss-, rack- or wall-mounted
• IP65 rated

Physical

• Width: 217.0 mm (8.5 in) — single or double unit 19" rack-mountable with included rackmount ears
• Height: 44.45 mm (1.75 in) — rackmount 1U
• Depth: 365.0 mm (14.4 in)
• Weight: 3.5 kg (7.7 lbs)

Control and Programming

• Control Protocols: P3, sACN, Art-Net and RDM over Art-Net
• Protocol Detection: Automatic
• Settings and Feedback: P3 or RDM over Art-Net
• Unit Identification: User-settable ID number
• Art-Net Compliance: Art-Net 1, 2, 3 and 4 (including RDM over Art-Net)
• sACN Compliance: ANSI E1.31 - 2018
• Martin P3 Compliance: P3 System Controller Software 6.1.0 or newer
• Ethernet Transceiver IN: 100/1000 Mbit (with fail-safe bypass to Ethernet THRU)
• Ethernet Transceiver THRU: 100/1000 Mbit (with fail-safe bypass to Ethernet IN)
• Ethernet Transceiver OUT: 100 Mbit
• Firmware Update: Via Ethernet using Martin Companion or P3 System Controller

Control/User Interface – Frontpanel

• Power Out Status: 1× Green LED
• Ethernet Out Status: 1× Amber LED
• Ethernet In/Thru Status 1–2: 2× Green+Amber LED
• Device Status: 1× RGB LED
• Device Test and Reset: Pushbutton to call up test patterns on fixtures connected to DCE output and reset device

Control/User Interface – Backpanel

• Fixtures Power Mode: DIP switch to force all connected fixtures in normal power, half power, or controller decides (via P3 or RDM)
• Frontpanel Disable: DIP switch to disable all five status LEDs and the frontpanel pushbutton

Construction

• Color: Matte Black
• Housing Material: Aluminium
• Protection Rating: IP65
• NEMA Enclosure Rating: Type 3
• Corrosion Resistance: ISO 12944-6:2018; C3 Medium, test regime ISO 9227, 240 h

Installation

• Orientation: Any
• Single Unit 19-inch Rackmount: Using supplied short and long rack mounting ears
• Dual Unit 19-inch Rackmount: Using supplied coupling plates and short rack mounting ears
• Wallmount: Using supplied short rack mounting ears
• Trussmount Vertical: Using half-coupler clamp in M10 threaded hole (max bolt length 20 mm)
• Trussmount Horizontal: Using half-couplers in supplied short rack mounting ears
• Location: Indoor or temporary outdoor

Connections

• Power In/Thru: Neutrik powerCON TRUE1 TOP
• Ethernet In/Thru: 2× Neutrik etherCON TOP
• DC Power and Network Output: 1× chassis-mount DCE hybrid connector (7-pin)
• Hot Plugging: All connections hot plugging compatible

Output Ports

• Quantity: 1
• Power: 48 VDC / 10 A
• Ethernet: 100 Mbit (P3, sACN, Art-Net)

Electrical

• AC Power: 100–240 V AC nominal, 50/60 Hz
• Power Supply Unit: Auto-ranging electronic switch mode
• Typical Half-cycle RMS Inrush Current @ 230 V, 50 Hz: 2.7 A
• Typical Earth-leakage Current: 0.53 mA
• Power Factor: 0.99 @ 100/120 V; 0.98 @ 208 V; 0.97 @ 230/240 V
• Max Current Draw: 5.5 A @ 100/120 V; 3.0 A @ 208/230/240 V
• Typical Current Draw: 5.3 A @ 100/120 V; 2.6 A @ 208/230/240 V *
• Power Consumption – Maximum: 500 W
• Power Consumption – Typical: 480 W *
• Power Consumption – Idle: 5 W *
• Power Consumption – Hibernation: 4 W *
• * Measurements made at nominal voltage; allow ±10%. Typical = output at full capacity with all connected fixtures at full output white. Idle = output at full capacity with all connected fixtures at zero output. Hibernation = output disabled; wake-up required.

Thermal

• Cooling: Convection
• Maximum Ambient Temperature (Ta max): 40 °C (104 °F)
• Minimum Ambient Temperature (Ta min): -30 °C (-22 °F)
• Maximum Surface Temperature @ 40 °C ambient (steady state): 65 °C (149 °F)
• Typical Heat Dissipation (calculated, ±10%): 106 BTU/hr

Environmental

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• FSC: Certified cardboard inlay and outer packaging

Approvals

• Global CB Certification / IECEE: IEC 62368-1
• EU Safety: EN 62368-1
• EU EMC: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3
• US Safety: UL 62368-1
• US EMC: FCC Part 15 Class B
• Canadian Safety: CSA C22.2 No. 62368-1
• Canadian EMC: ICES-003 Class B
• Australia/New Zealand: RCM
• United Kingdom: UKCA

Compatible Fixtures

• VDO Sceptron XB
• Exterior Dot-1 Pro (via Exterior DC-Feeder)
• Exterior Dot-4 Pro (via Exterior DC-Feeder)
• Exterior Dot-9 Pro (via Exterior DC-Feeder)
• Exterior Dot-HP Pro

Included Items

• 1× Multi-Language Safety & Installation Manual
• 1× Safety Cable Attachment Eyelet, incl. screws
• 2× Short Rack Mounting Ears (rack-, wall- and clamp-mounting), incl. screws
• 1× Long Rack Mounting Ear (rack-mounting), incl. screws
• 1× Coupling Plate (rack-mounting), incl. screws

Related Items

• P3 PowerPort 2000: P/N MAR-90721200
• P3 PowerPort 500 IP Install: P/N MAR-90721202
• DCE PSU 240 IP: P/N MAR-90721203
• DCE DataSplitterBooster IP: P/N MAR-90721204
• Martin Companion Firmware Upload, Addressing and Stand-Alone Programming Software: Free download from www.martin.com
• P3-175 System Controller: P/N MAR-90721100
• P3-275 System Controller: P/N MAR-90721101
• P3-PC System Controller: Free download from www.martin.com

Accessories

• AC Power Input Cables
• Power Input Cable, H07RN-F, 2.5 mm², bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft) — P/N 91611797
• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft) — P/N 91610173
• AC Power Linking Cables
• Power relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft) — P/N 91611796
• Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft) — P/N 91610172
• AC Power Connectors
• Cable Connector, Neutrik powerCON TRUE1 TOP Female — P/N 91611789HU
• Cable Connector, Neutrik powerCON TRUE1 TOP Male — P/N 91611788HU
• Pre-Assembled Hybrid DCE Cables
• DC + Ethernet Cable DCE–DCE 1 m — P/N MAR-91700100
• DC + Ethernet Cable DCE–DCE 2.5 m — P/N MAR-91700101
• DC + Ethernet Cable DCE–DCE 5 m — P/N MAR-91700102
• DC + Ethernet Cable DCE–DCE 10 m — P/N MAR-91700103
• DC + Ethernet Cable DCE–DCE 25 m — P/N MAR-91700104
• Bulk Hybrid DCE Cables
• DC + Ethernet Cable 100 m — P/N MAR-91700105
• DC + Ethernet Cable LSZH 100 m — P/N MAR-91700106
• Field-Installable DCE Connectors
• Field-installable Connector DCE Male — P/N MAR-91700107
• Field-installable Connector DCE Female — P/N MAR-91700108
• Closing Caps for DCE Connectors
• Closing Cap Male DCE Connector — P/N MAR-91700109
• Closing Cap Female DCE Connector — P/N MAR-91700110
• Hybrid DCE Adapters
• DC + Ethernet Adapter DCE Male–Male — P/N MAR-91700111
• DC + Ethernet Adapter DCE Female–Female — P/N MAR-91700112
• DC + Ethernet Adapter EtherCON + Wires to DCE — P/N MAR-91700113
• DC + Ethernet Adapter DCE to EtherCON — P/N MAR-91700114
• Rigging Accessories
• Super Lightweight Half Coupler Rigging Clamp, black — P/N 91602018
• G-clamp (suspension with unit hanging downwards only) — P/N 91602003
• Half-coupler Clamp — P/N 91602005
• Quick Trigger Clamp (suspension with unit hanging downwards only) — P/N 91602007
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black — P/N 91604006
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver — P/N 91604007

Ordering Information

• P3 PowerPort 500 IP Rental — P/N MAR-90721201
