NovaStar - CX80 Pro

NovaStar - CX80 Pro

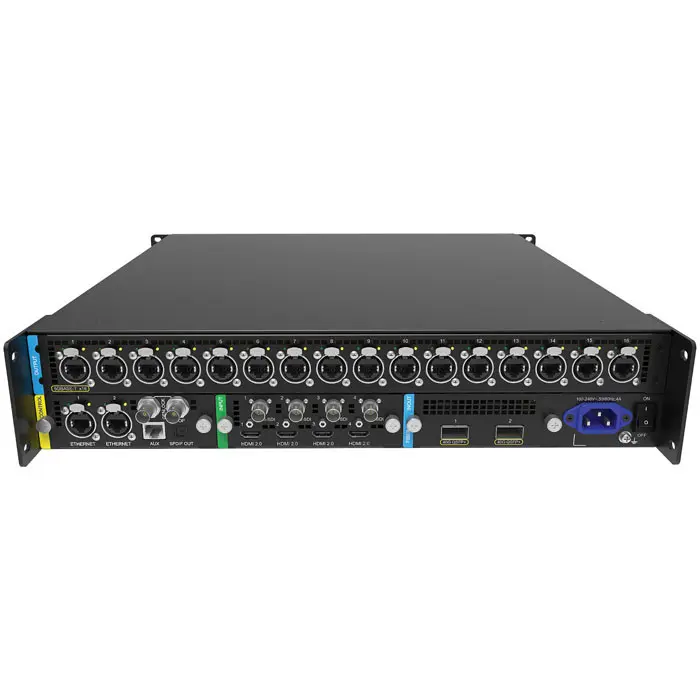

The CX80 Pro is a flagship 8K LED display controller in the brand-new control system COEX series of Xi’an NovaStarTech Co., Ltd. (hereinafter referred to as NovaStar). This controller offers rich video input connectors (HDMI 2.1,HDMI 2.0, DP 1.4 and 12G-SDI) and supports 5Gbps output via Ethernet port and 40Gbps remote transmission viaoptical port. It can also work with the brand-new software VMP (Vision Management Platform) to provide a betteroperation and control experience.

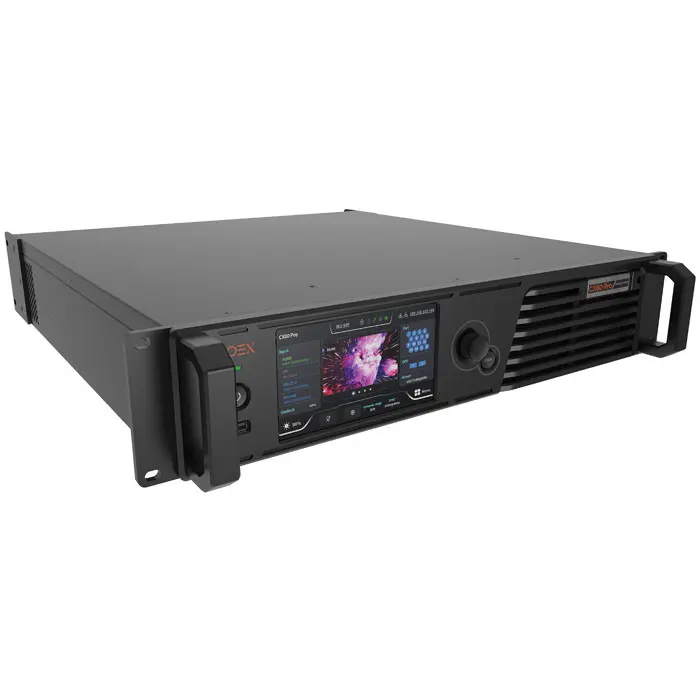

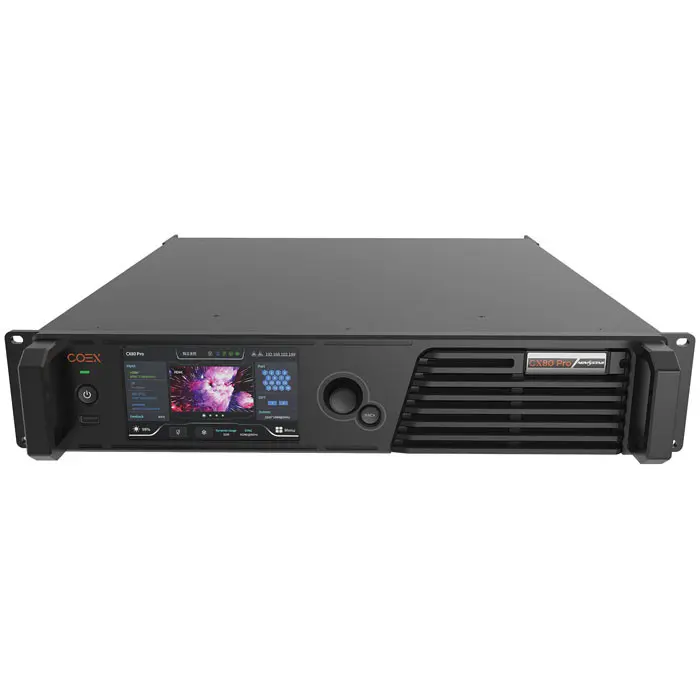

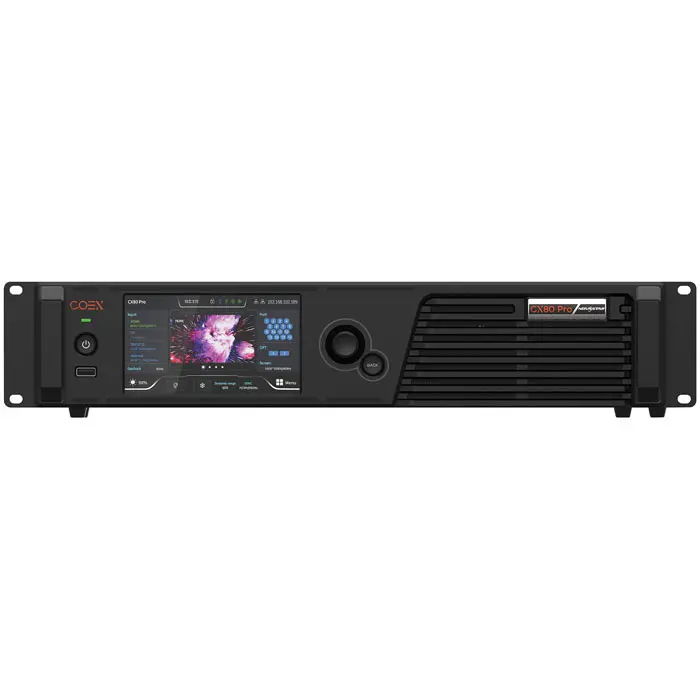

Based on modular design, the CX80 Pro uses pluggable cards that can be easily replaced and maintained. Besides,the CX80 Pro comes with a 5.5-inch touch LCD, making user operation and control much easier.

Features

• 2 types of pluggable input cards, 3 types of outputs and 3 types of controls.
• Support 2 image scaling modes: custom and pixel to pixel.
• Support free replacement of any color on the image without affecting the performance of other colors. Replacement of highly saturated colors is recommended for better effect.

Electrical Specifications

• Power supply: AC 100-240V~, 50/60Hz, 4A
• Power consumption: 170 W

Operating Environment

• Temperature: –10ºC to +45ºC
• Humidity: 0% RH to 80% RH, non-condensing
• Storage Environment Temperature –30ºC to +80ºC
• Humidity: 0% RH to 90% RH, non-condensing

Physical Specifications

• Dimensions: 482.6 mm × 95.1 mm ×528 mm
• Net weight: 10.5 kg
• Gross weight: 12.5 kg (Note: It is the total weight of the product, accessories, and
  packing materials packed according to the packing specifications)

Packing Information

• Packing box: 660.0 mm × 570.0 mm × 210.0 mm, kraft paper box
• Accessory box: 408.0 mm × 290.0 mm × 50.0 mm, white cardboard box

Accessories

• Input card 1
  • 1x Power cord
  • 1x Ethernet cable
  • 1x HDMI 2.1 cable
  • 1x DP 1.4 cable
  • 1x Certificate of Approval
• Input card 2
  • 1x Power cord
    1x Ethernet cable
    1x HDMI 2.0 cable
    1x Certificate of Approval

IP Rating

• IP20 (Please prevent the product from water intrusion and do not wet or wash the product.)

Noise Level (typical at 25°C/77°F)

• 45 dB (A)
