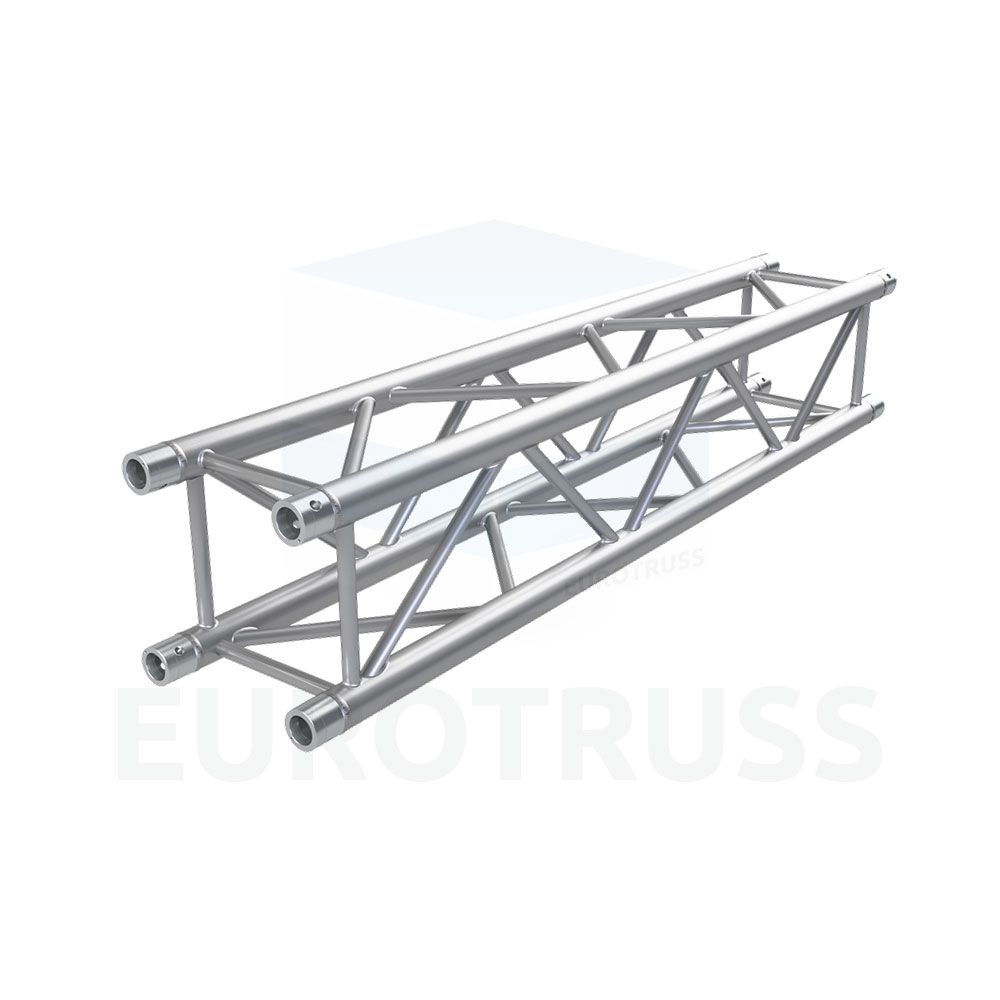

Eurotruss | FD34-021 - Box Truss 21cm

Eurotruss | FD34-021 - Square Truss 21cm

FD34 is the classic 29cm box truss that has proven itself over the years as the ultimate multipurpose truss. The straight elements lend themselves perfectly for spans up to 16m or as standard tower elements.

A wide variety of corners and accessories is available for this type of truss, such as Fixed Corners, Corner Blocks and Book Corners.

Designed for high frequency usage or installations, which demand higher loading. The perfect trussing system for rental, touring and exhibition companies.

Made with the fast CS1 connection system.

• Height: 290 mm / 11.42 in
• Width: 290 mm / 11.42 in
• Main Tube: 50 x 2 mm / 1.97 x 0.08 in
• Braces: 20 x 2 mm / 0.79 x 0.08 in
• Weight: ~6 kg/m / ~4 lbs/ft
• Pin Position: Diagonal
• Material: EN AW-6082 T6
• Connection: CS1 - CON
