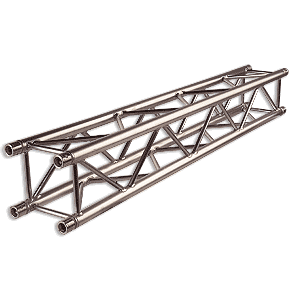

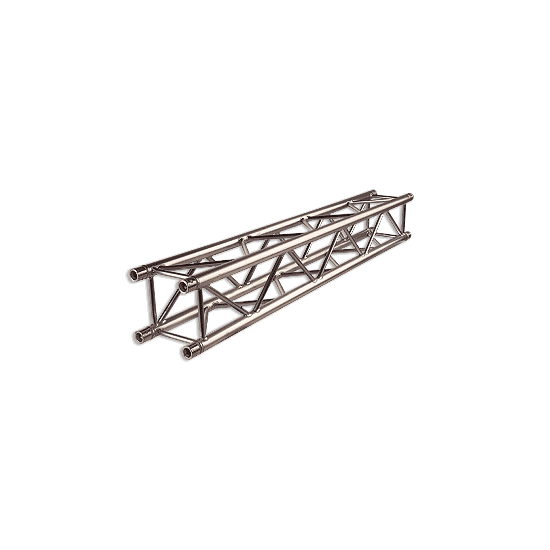

Eurotruss | FD34-150 - Box Truss Length 150cm

Eurotruss - FD34 150cm

FD34 straight elements lend themselves to use as span exposed to bending stress resistant span or as tower elements. Very suitable for bracing widths up to 12 m (16 m at reduced loads) at medium loads. Permitting almost limitless possibilities for the technical realization of creative ideas. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.

Features

• Square russing with a square profile geometry for medium loads
• Tolerance free connection with conical connector
• High Stability aluminium alloy
• Optimum manufacturing quality
• TuV Tested

Technical specifications

• Height: 290 mm / 11.42 in
• Width: 290 mm / 11.42 in
• Main Tube: 50 x 2 mm / 1.97 x 0.08 in
• Braces: 20 x 2 mm / 0.79 x 0.08 in
• Weight: ~6 kg/m / ~4 lbs/ft
• Pin Position: Diagonal
• Material: EN AW-6082 T6
• Connection: CS1 - CON

Productcodes

• FD34-025A (25 cm)
• FD34-050 (50 cm)
• FD34-075 (75 cm)
• FD34-100 (100 cm)
• FD34-150 (150 cm)
• FD34-200 (200 cm)
• FD34-250 (250 cm)
• FD34-300 (300 cm)
• FD34-350 (350 cm)
• FD34-400 (400 cm)
