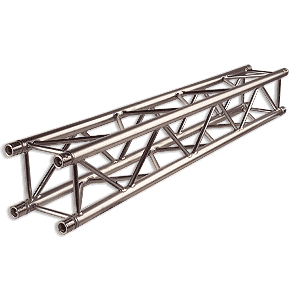

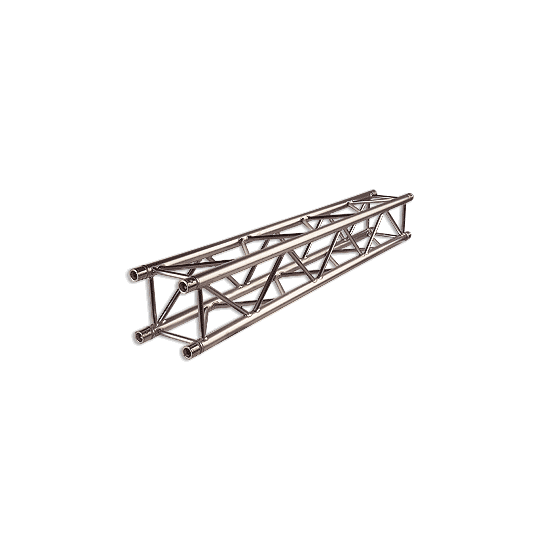

Eurotruss | FD34-300 - Box Truss Length 300cm

Eurotruss - FD34 300cm

FD34 straight elements lend themselves to use as span exposed to bending stress resistant span up to 16m or as standard tower element. FD34 using the 2mm wall thickness assures durability and strength.

Designed for high-frequency usage or installations, which demands higher loading. Ideal trussing system for rental, touring and exhibition companies.

Technical specifications

• Height: 290 mm / 11.42 in
• Width: 290 mm / 11.42 in
• Main Tube: 50 x 2 mm / 1.97 x 0.08 in
• Braces: 20 x 2 mm / 0.79 x 0.08 in
• Weight: ~6 kg/m / ~4 lbs/ft
• Pin Position: Diagonal
• Material: EN AW-6082 T6
• Connection: CS1 - CON

Productcodes

• FD34-025A (25 cm)
• FD34-050 (50 cm)
• FD34-075 (75 cm)
• FD34-100 (100 cm)
• FD34-150 (150 cm)
• FD34-200 (200 cm)
• FD34-250 (250 cm)
• FD34-300 (300 cm)
• FD34-350 (350 cm)
• FD34-400 (400 cm)
