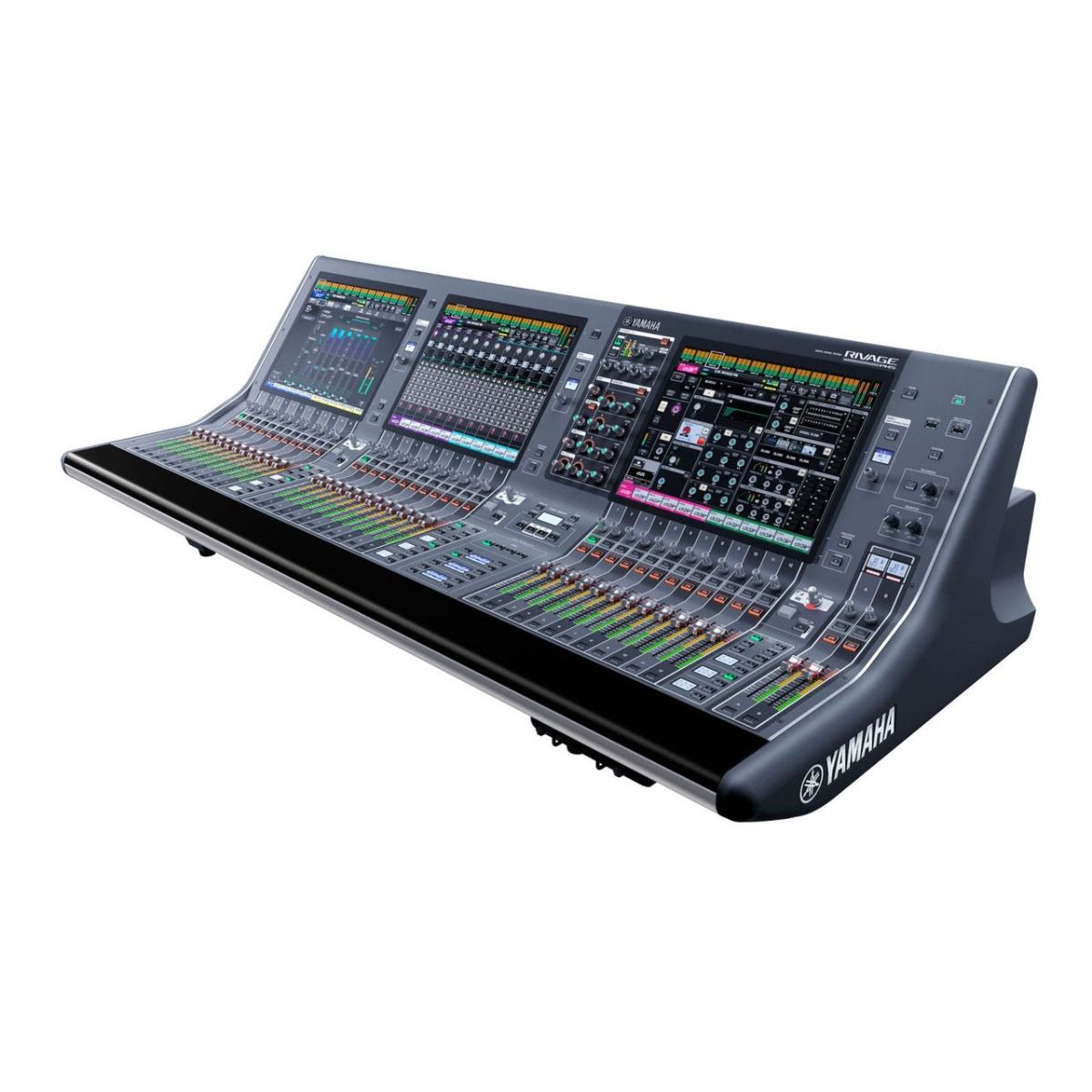

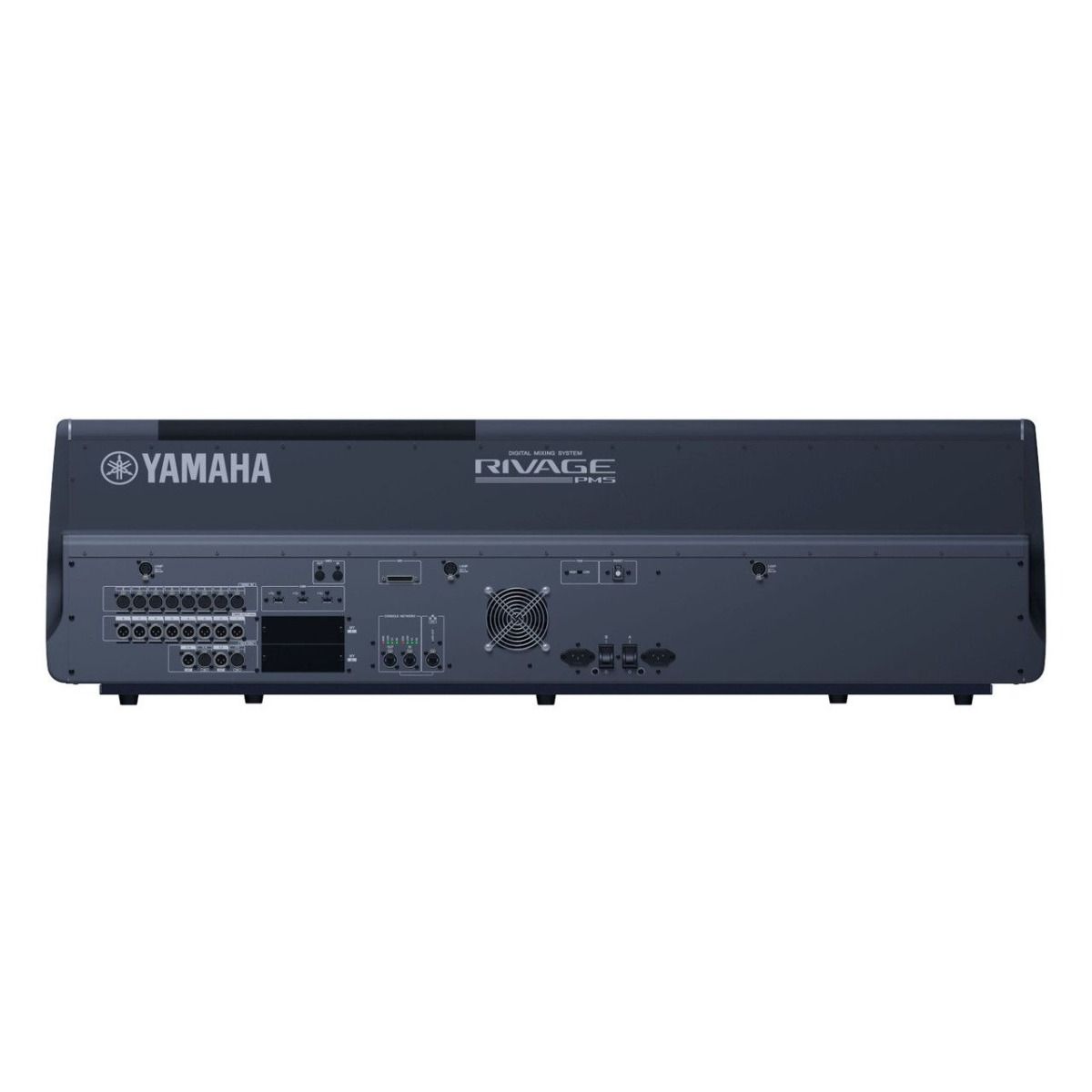

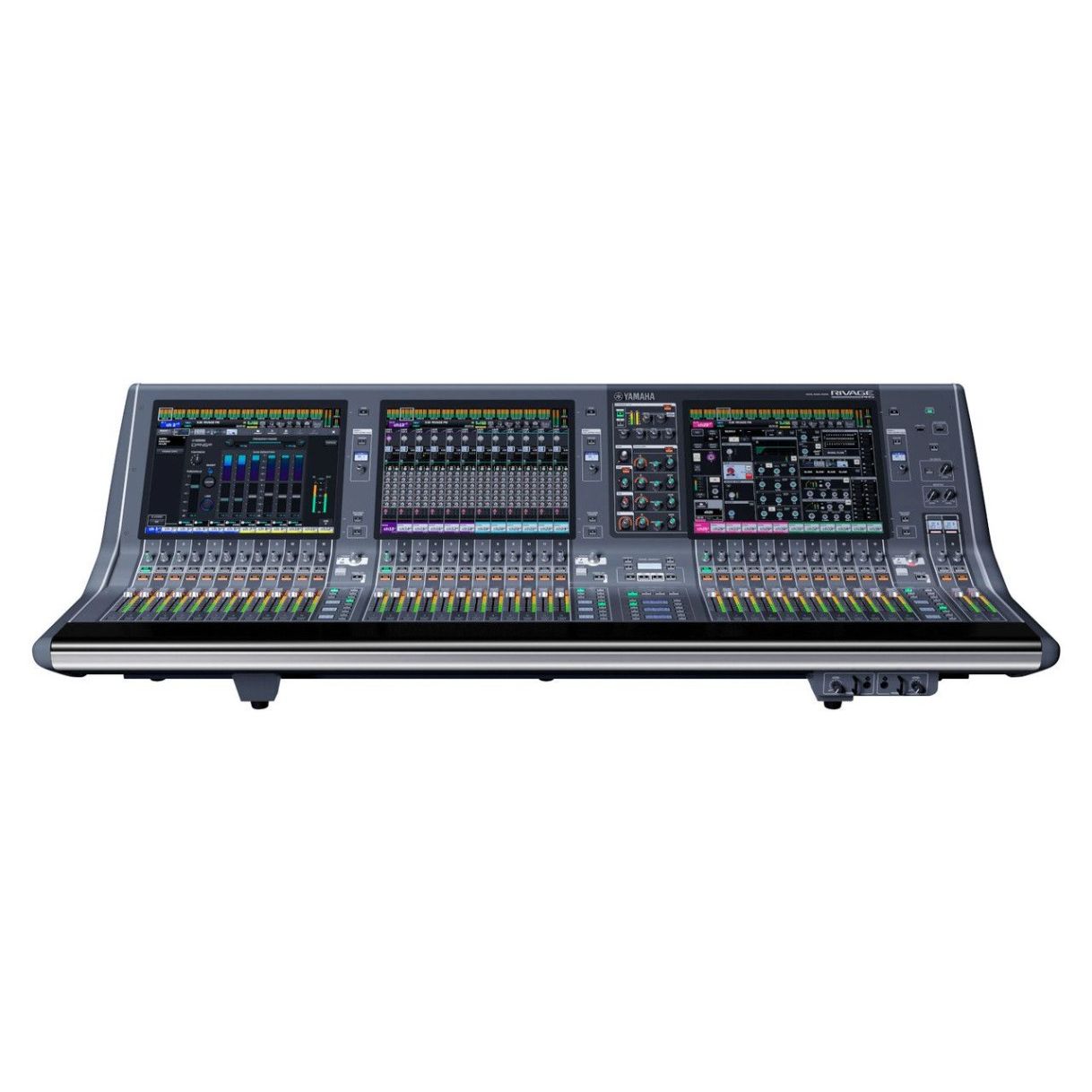

Yamaha - CSR5 (PM5) - Control Surface

Yamaha - CSR5 (PM5) - Control Surface

The RIVAGE PM5 Digital Mixing System packs undiluted RIVAGE PM power and performance into a lightweight, intuitive console that is surprisingly slim. Sound and features are essentially the same as the PM10 and PM7, while evolved hardware and software deliver a new mixing experience. The addition of a third display screen has made it possible to offer a more touch-centric interface in a compact, significantly lighter console that is easier to transport, setup, and operate in a wide range of venues.

• Display: 15" touch panel x 3
• Faders: 12-faders x 3 bays
• Selected Channel section: Dynamics, GAIN, HPF, EQ, PAN, Function Knob
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 3 x 4 banks (4 x 4 banks can be assigned)
• Touch and Turn knobs: 3
• Analog I/O: 8 in / 8 out
• Slot: 4 HY slots, 2+2 MY slots
• AES/EBU: 4 in / 4 out (with SRC)
• Dimensions (WxHxD): 1,444 x 414 x 643mm (56.9" x 16.2" x 25.3")
• Net Weight: 42 kg (207 lbs)
