Yamaha - RPIO622

Yamaha - RPio622 - Audio Interface

Interface cards not included.

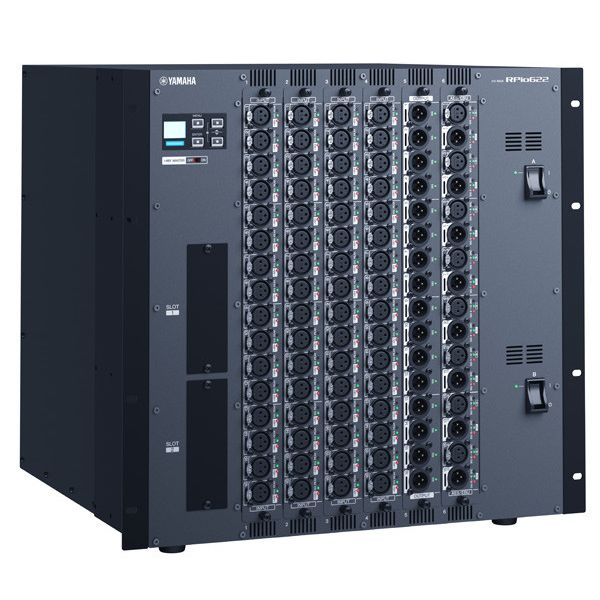

The RPio622 is an audio interface that enables you to flexibly configure and expand I/Os for the RIVAGE PM10 system as required by your application or the scale of your system.

• Six RY card slots that enable you to expand analog inputs and outputs, and/or digital inputs and outputs.
• Two HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
• HY card slot 1 features 256 ins/outs, and HY card slot 2 features 128 ins/outs.
• Two mini-YGDAI slots to support various audio formats.

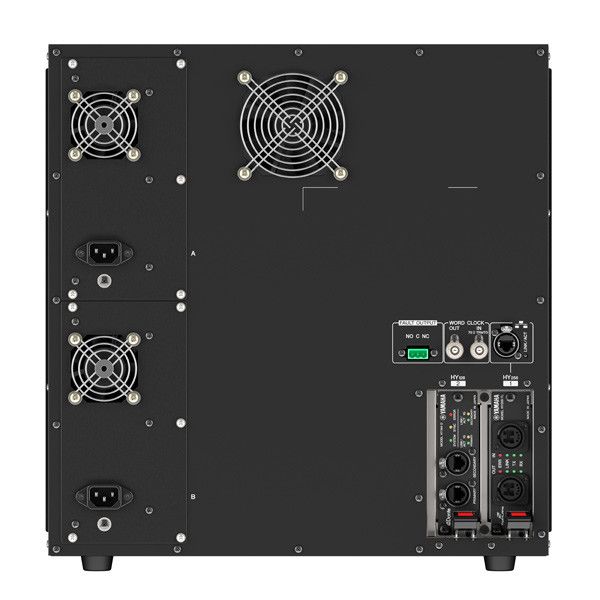

• Dual redundant power supply built-in

• Dimensions (WxHxD): 480 x 455 x 489.7mm (18.9" x 17.9" x 19.3") (10U rack size)
• Net Weight: 30 kg (66 lbs)
