Yamaha | DSP-RX-EX - DSP Engine

Yamaha - DSP-RX-EX

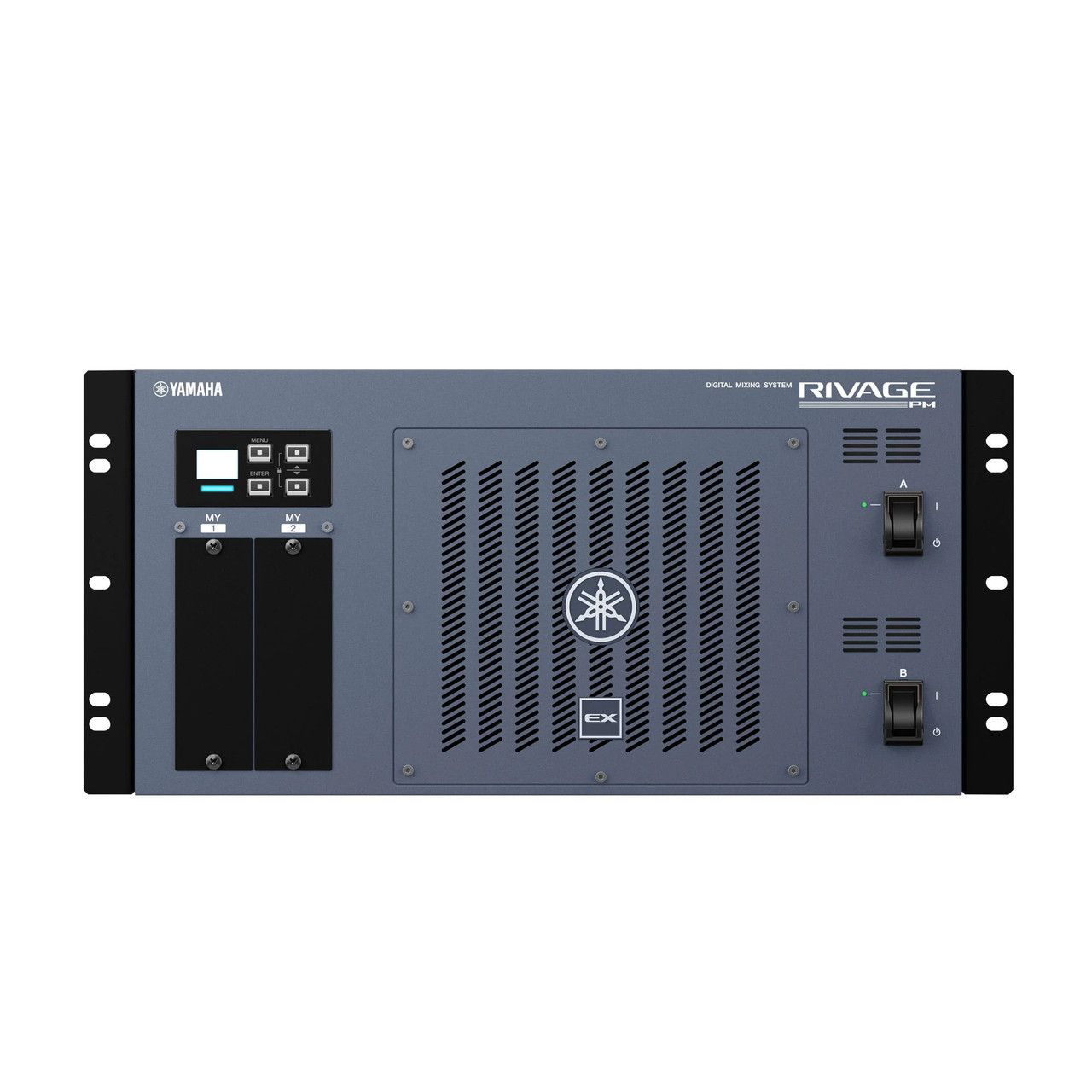

The DSP-RX-EX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system.

Compatible Control Surfaces:

• CS-R10
• CS-R10-S
• CS-R5
• CS-R3

Key Features:

• Superior capability of processing digital audio signals:
  • 288 input channels
  • 72 MIX channels
  • 36 MATRIX channels
  • 2 STEREO channels

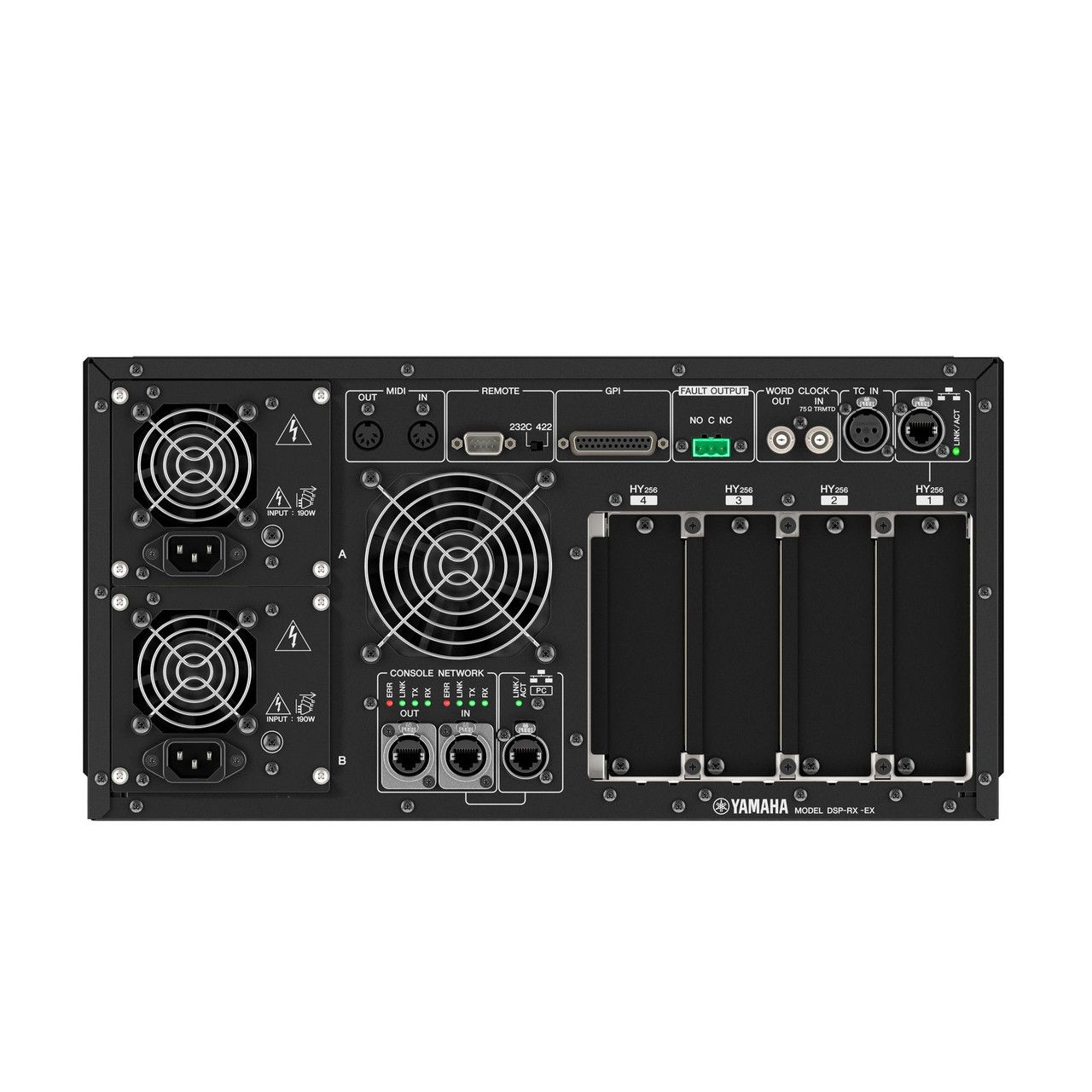

• Four HY card slots, capable of transmitting/receiving up to 256 ins/outs of digital audio/control signals
• Two Mini-YGDAI slots supporting various audio formats
• Dual redundant power supply built-in

• Power consumption: 190W
• Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
• Net weight: 20 kg (44.1 lbs)
