NovaStar - H20 Master

NovaStar - H20 Master

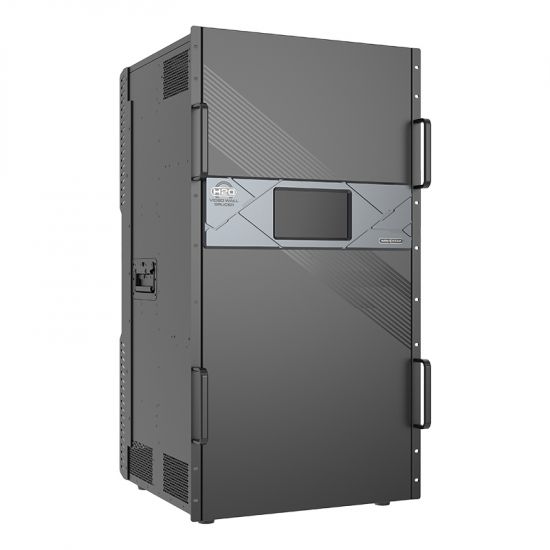

The H20 is part of NovaStar's latest generation of video wall splicers, which are characterized by excellent image quality and have been specially developed for fine-pitch LED displays. The H20 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration and hot-swapping of input and output cards. Thanks to its outstanding features and stable performance, the H20 can be used in a wide range of applications.

Features

• Online monitoring for all input & output cards

• "Hot-Swap" function for all in- & output cards

• IP input card H_2xRJ45 supports up to 100 IP cameras incl. input mosaic

• Automatic decryption of HDCP protected sources

• multi-screen management

• Web control

• Max. Number of input cards: 40
• Max. Number of output cards: 20
• Max. Number of input channels: 160
• Max. Loading Capacity: 460,000,000 pixels
• Max. Number of layers: 160
• Supply voltage: AC 100-240V, 50/60HZ (The device is delivered with three power supplies. The installation of a backup power supply is optionally possible).
• Power consumption: 1800 watts
• Dimensions: 482.6 x 905.2 x 533.0mm (WxDxH)
• Weight: 61,8kg
