NovaStar - H_2xCVBS+2xVGA input card

NovaStar - H_2xCVBS+2xVGA input card

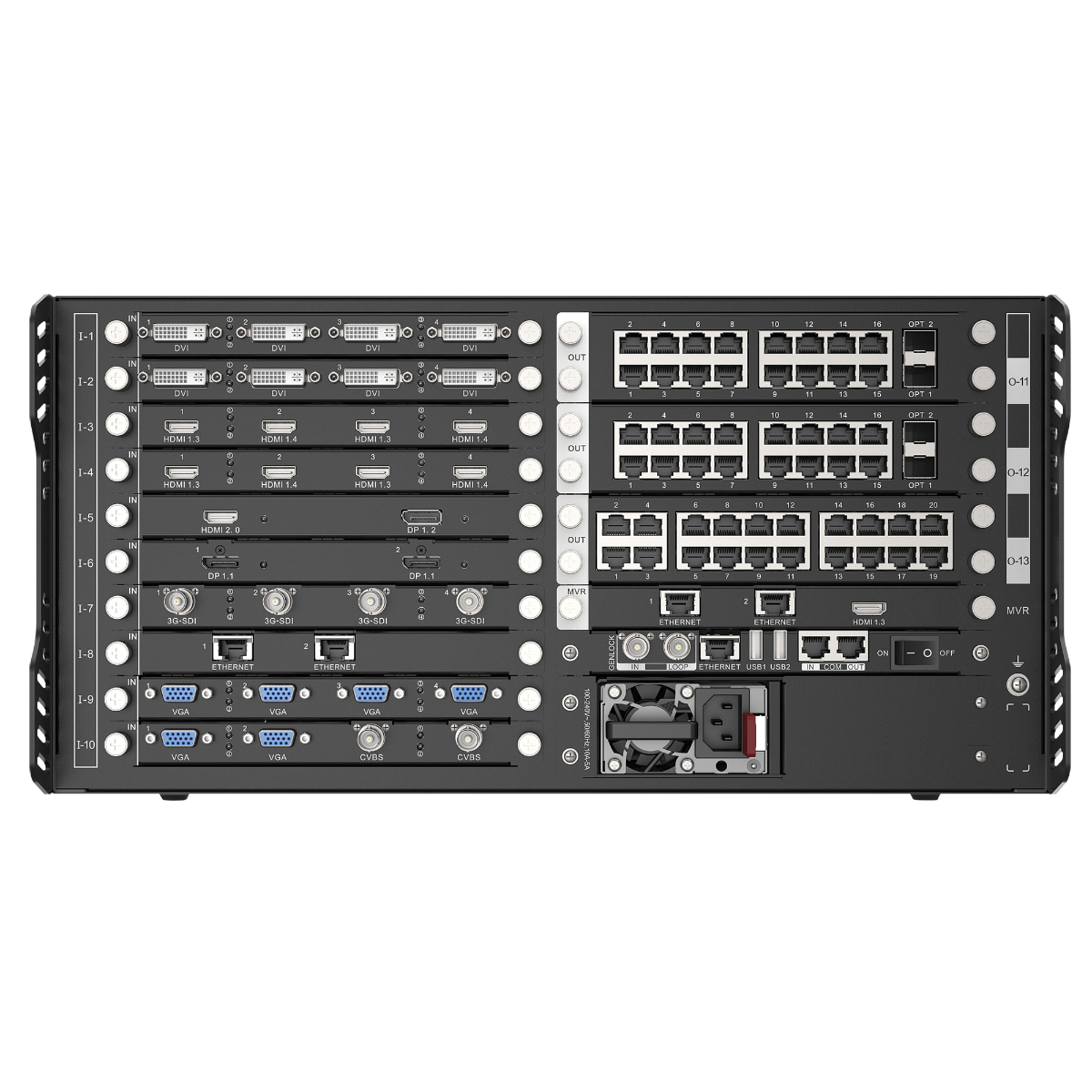

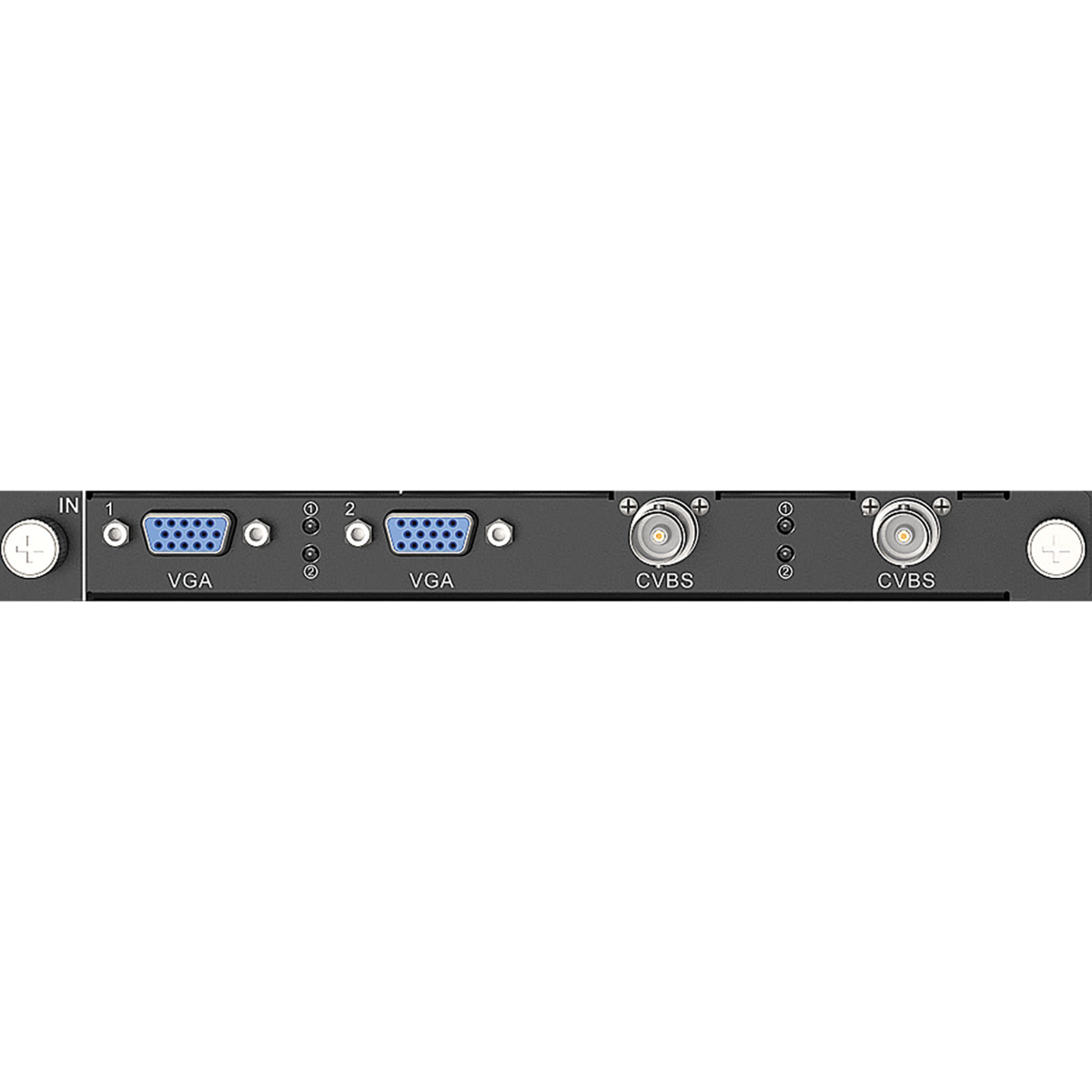

The H Series 2x CVBS / 2x VGA Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It accepts two VGA sources and two PAL or NTSC (composite) video sources. Each VGA input supports resolutions of up to 1920x1080 @60 Hz. Four status LEDs indicate if the input signal is valid.

Features

• Supports VGA and CBVS (composite video)

• Max. resolution VGA 1920x1080 @60 Hz

• CVBS supports 480i and 576i

• Four status LEDs

Inputs

• VGA (In): 2
• CVBS (In): 2
• Input Slots: 1

Control and Programming

• Maximum Input Resolution: 1920 x 1080

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
