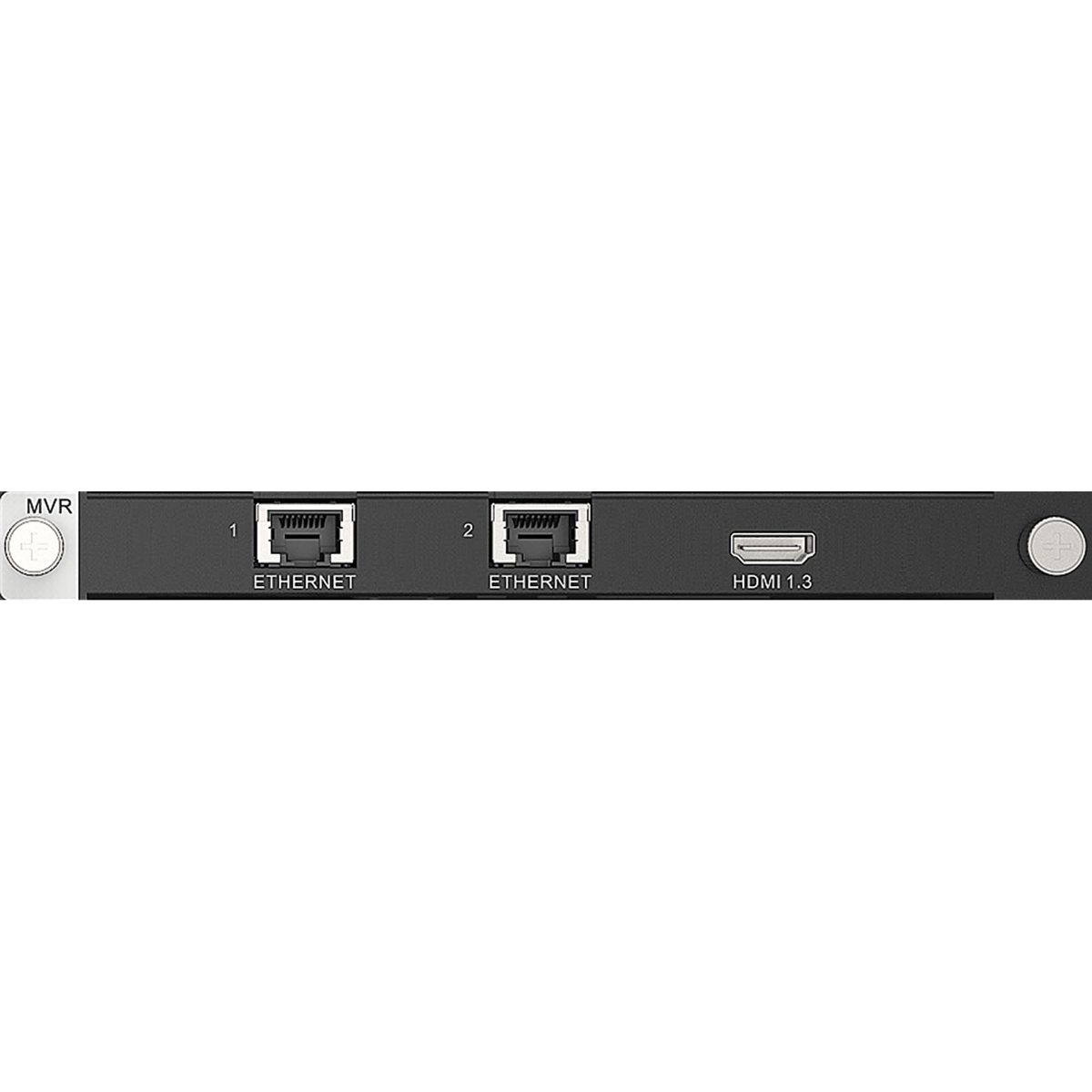

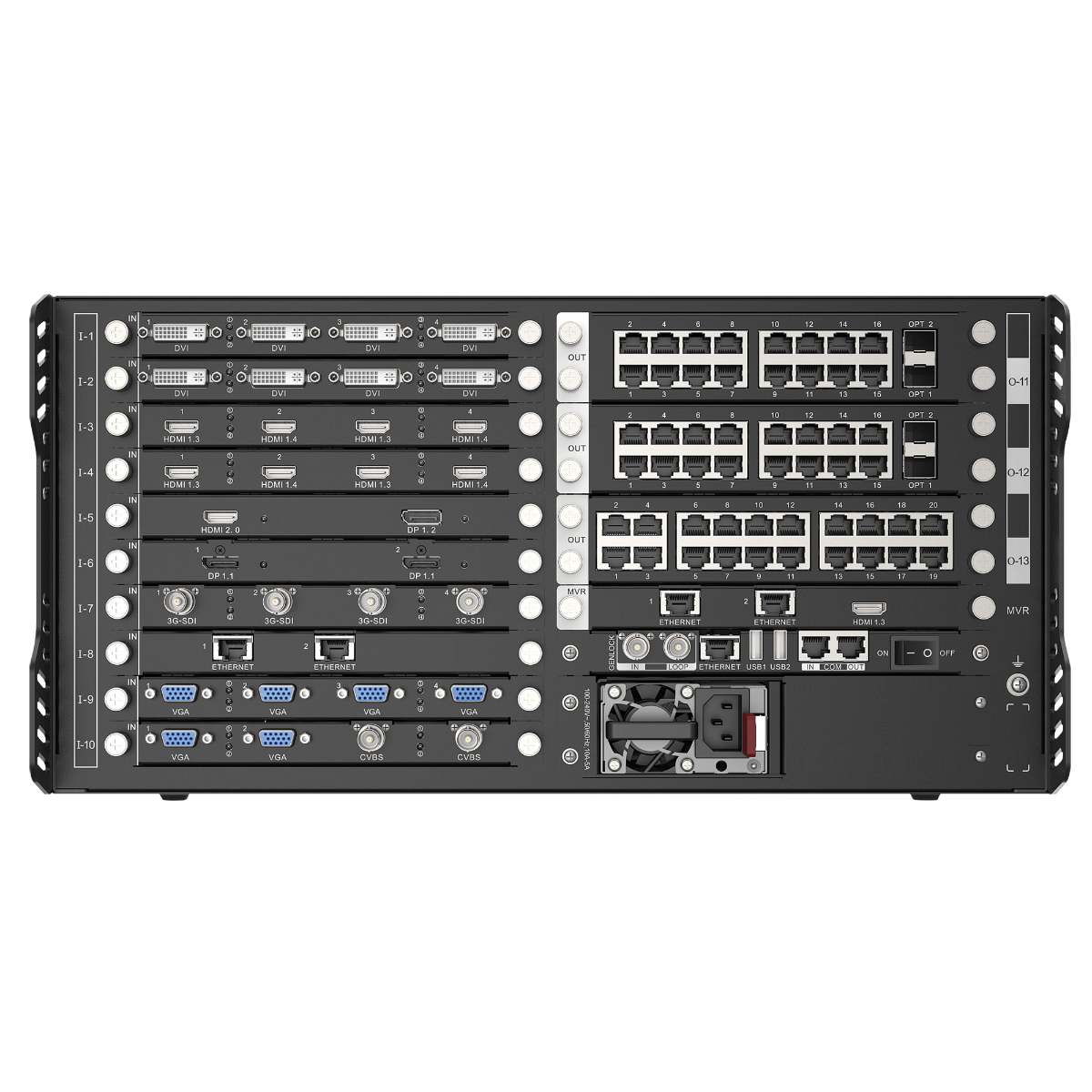

The H Series 2x RJ45 plus 1x HDMI 1.3 Preview Card is an output card for the H Series H2/H5/H9/H15 Video Wall Splicers. It has two RJ45 Gigabit Ethernet outputs that connect to your network and one HDMI 1.3 output that connects to a monitor. The card allows you to monitor the input and output signals of the system via your network or directly on a monitor.

Features

• Allows monitoring of all input and output signals

• Connects directly to a monitor

• Connects directly to your network and allows remote monitoring

Outputs

• Main Outputs: 2
• HDMI 1.3 (MVR): 1
• Ethernet Speed (LED Screen): 1 Gbit/s
• Output Slots: 1

Electrical Specifications and Connections

• Data Connector Out: RJ45

Mechanical Specifications

• Weight: 0.8 kg
• IP Rating: IP20 (indoor use only)
• Colour: Black
