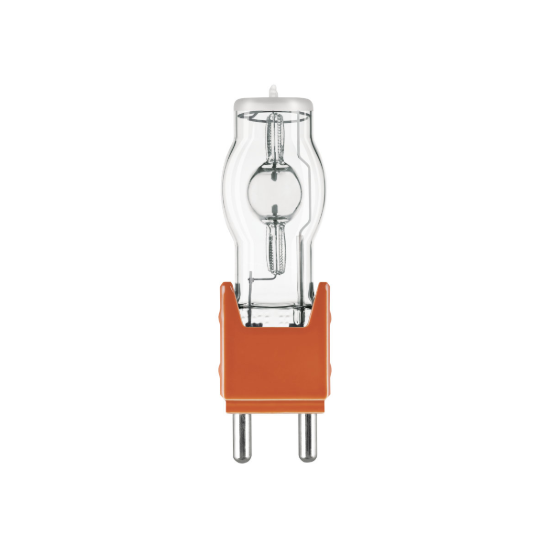

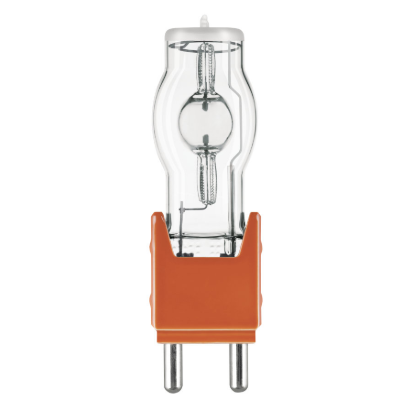

Osram - HMI Digital 2500W/SE

Osram - HMI Digital 2500W/SE

Product family features

• High CRI of >90
• UV-Stop (UVS)
• Color temperature of 6,000 K (daylight)
• Extremely bright light of up to 100 lumens/watt
• Hot restart capability
• Product family benefits
• Suited for both analog and digital film production
• Robust stems, resulting in less breakage during transport
• Round moly-foil construction that evenly distributes heat and current extends for lamp longevity (6,000-18,000 W)
• Splash-proof carrying case is re-usable and allows lamps to be transported safely (6,000-18,000 W)

Areas of application

• Studio
• Stage
• TV

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Electrical data

• Nominal wattage: 2500.00 W
• Nominal voltage: 118 V
• Nominal current: 24.5 A

Photometrical data

• Nominal luminous flux: 220 lm
• Color temperature: 6300 K
• Color rendering index Ra: 90

Dimensions & weight

• Diameter: 60.9 mm
• Length: 225.0 mm

Additional product data

• Base (standard designation): G38
