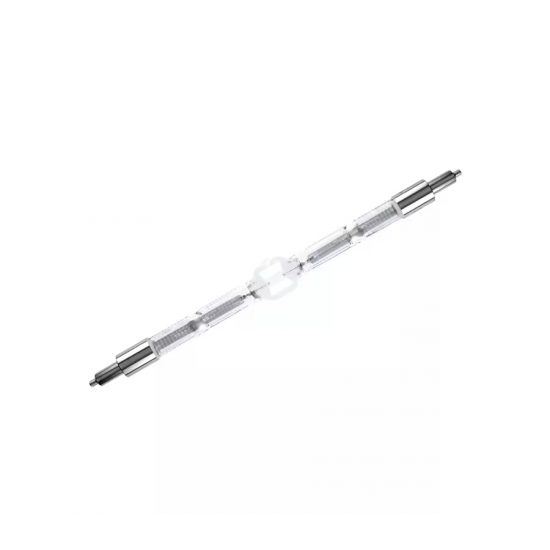

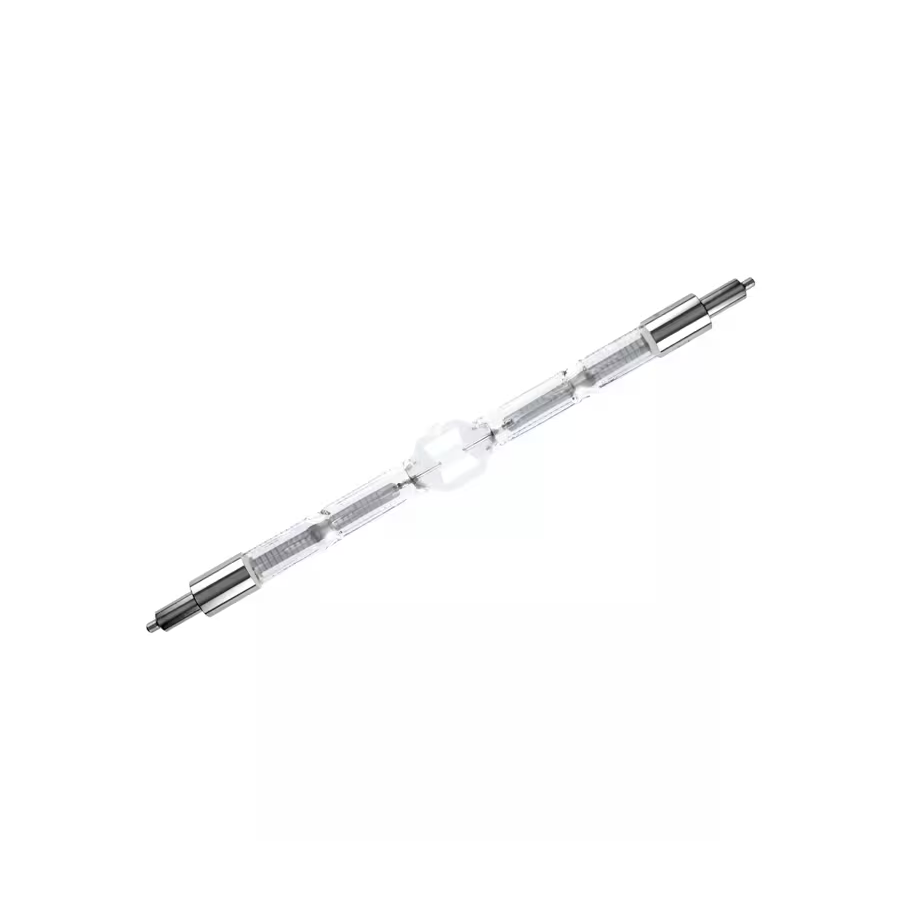

Osram | HMI 2500W/DXS VS1

Osram | HMI 2500W/DXS VS1

Features

• High intensity light providing true color performance with CRI up to 90
• Color temperature approximately 6000 K - simulates daylight
• Robust design provides durability during transport
• High energy efficiency providing up to 100 lumens/watt
• Capable of hot restrike ignition
• Compression sealed base provides enhanced durability
• High energy efficiency providing up to 100 lm/W
• Broad spectrum suitable for solar simulation applications

• Product number (Americas): 54265
• Product name (Americas): HMI 2500W/DXS 1/CS 1/SKU
• Family brand: HMI
• Global order reference: HMI 2500 W/DXS

Electrical Data

• Nominal wattage: 2500 W
• Nominal voltage: 115 V
• Ignition voltage (cold/hot): 20/45 kVp
• Nominal current: 25.6 A
• Type of current: AC

Photometric Data

• Nominal luminous flux: 240000 lm
• Luminous efficacy: 96 lm/W
• Color temperature: 6000 K
• Color rendering index Ra: 90

Physical Attributes & Dimensions

• Electrode gap (cold): 14.0 mm
• Lamp base: SFa21
• Diameter: 31.5 mm
• Diameter (in): 1.260 in
• Length: 355.0 mm
• Length with base excl. base pins/connection: 290.00 mm
• Product weight: 196.00 g

Operating Conditions

• Burning position: Other
• Cooling: Convection
• Maximum permitted ambient temperature at base: 450 °C

Lifetime Data

• Nominal lifetime: 500 hr
