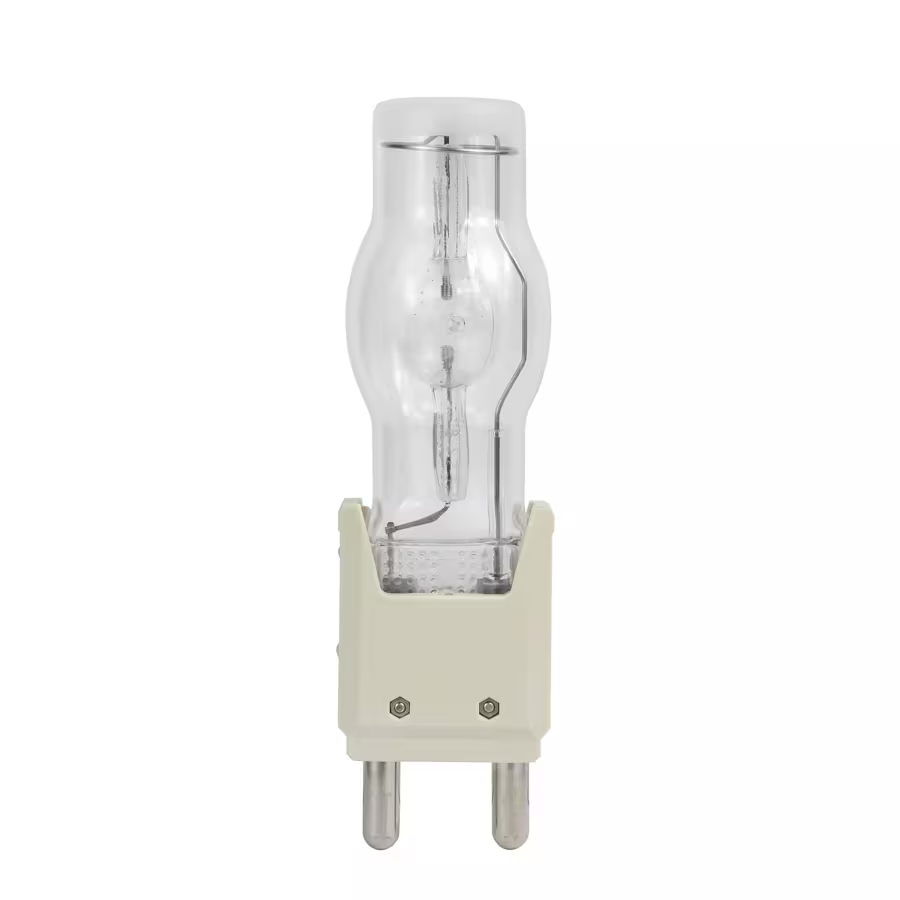

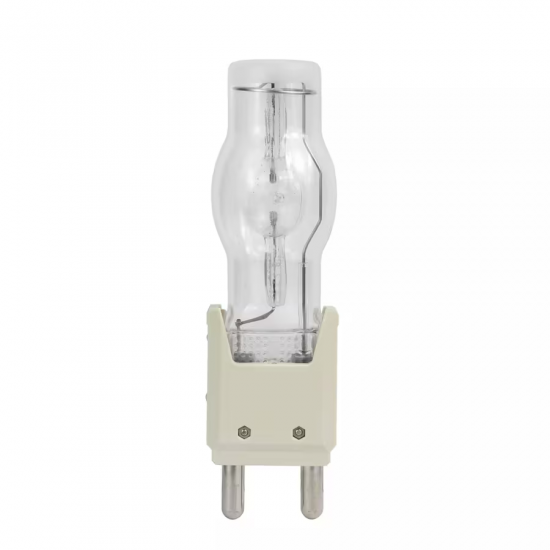

Osram | HMI 2500W/SE XS G38 1X1

Osram | HMI 2500W/SE XS G38 1X1

Features

• High intensity light providing true color performance with CRI up to 90
• Color temperature approximately 6000 K - simulates daylight
• Robust design provides durability during transport
• High energy efficiency providing up to 100 lumens/watt
• Capable of hot restrike ignition
• Broad spectrum suitable for solar simulation applications
• High energy efficiency providing up to 100 lm/W

• Product number (Americas): 54070
• Product name (Americas): HMI 2500W/SE/XS 1/CS 1/SKU
• Lamp type: SINGLE END
• Global order reference: HMI 2500 W/SE XS

Electrical Data

• Nominal wattage: 2500 W
• Nominal voltage: 115 V
• Nominal current: 25.6 A
• Type of current: AC

Photometric Data

• Nominal luminous flux: 240000 lm
• Luminous efficacy: 96 lm/W
• Color temperature: 6000 K
• Color rendering index Ra: 90
• Light center length (LCL): 127.0 mm (5.000 in)

Physical Attributes & Dimensions

• Lamp base: G38
• Diameter: 60.0 mm (2.362 in)
• Length: 225.0 mm (8.858 in)
• Product weight: 343.30 g

Operating Conditions

• Burning position: Any

Lifetime Data

• Nominal lifetime: 500 hr
