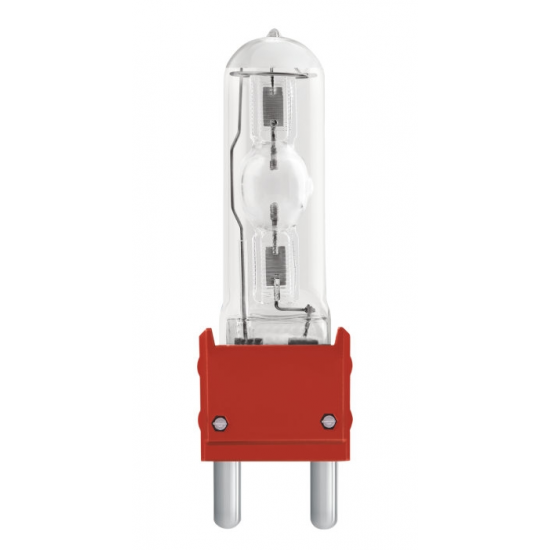

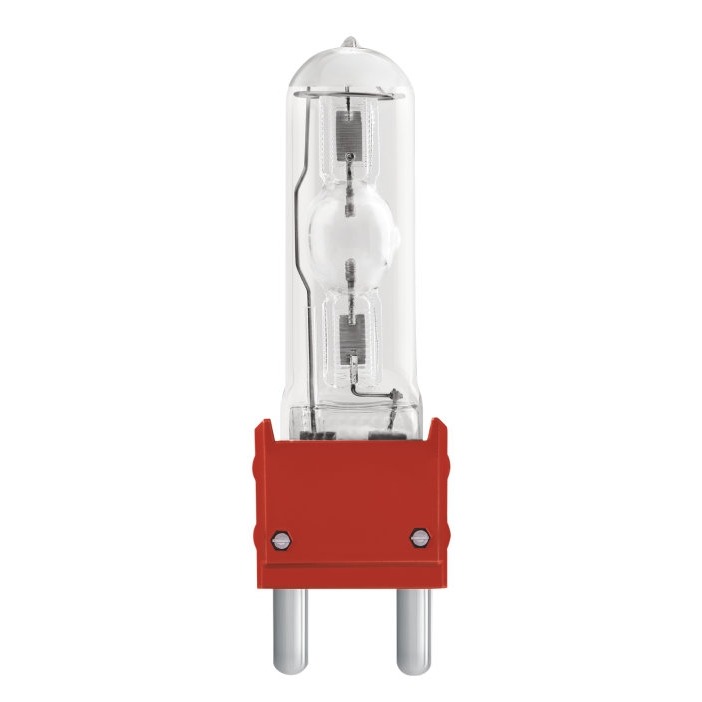

Osram - HMI Digital 4000W/SE
Product features and benefits
- High intensity light providing true color performance with a CRI>90
- Longer life with heat dissipating round moly-foil design on lamps ≥ 6000W
- Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal
- Capable of hot restrike ignition
- High color stability with average changes in color temperature during lamp life only 1°K/hr
- Dimmable down to 40% with stable color using many electronic ballasts
- High energy efficiency providing up to 100 LPW
- HMI EVENT types offer enhanced brightness and color control as well as UV-stop technology
Areas of application
- Studio, TV and film
- Professional Photography
- Solar Simulation
Electrical data
- Nominal Wattage: 4000 W
- Nominal Voltage: 200 V
- Current (A): 2.9 A
- Type of Current: AC
Light technical data
- Luminous Flux: 380000 lm
- Luminous Efficacy (lm/W): 95 lm/W
- Light Center Length - LCL (mm): 142 mm
- Color Temperature: 6000 K
- Color Rendering Index: 90
- Average Rated Life: 500 h
Physical attributes
- Base: GX38
- Bulb Shape: GST75
- Maximum Overall Length (mm): 250 mm
- Length l (mm): 250 mm
- Length l max. (mm): 250 mm
- Diameter d (in): 2.953 in
- Diameter d (mm): 75.90 mm
- Distance a (mm): 142 mm
- Electrode Gap - cold (mm): 20 mm
Additional product data
- Operating Position: Any
- Cooling: CONVECTION
- Hot Restart: Yes
- Class: C (GAS)
- Lamp Type: SINGLE END
| Brand | Osram |
|---|
