NovaStar - MX6000 Pro Mainframe

NovaStar - MX6000 Pro Mainframe

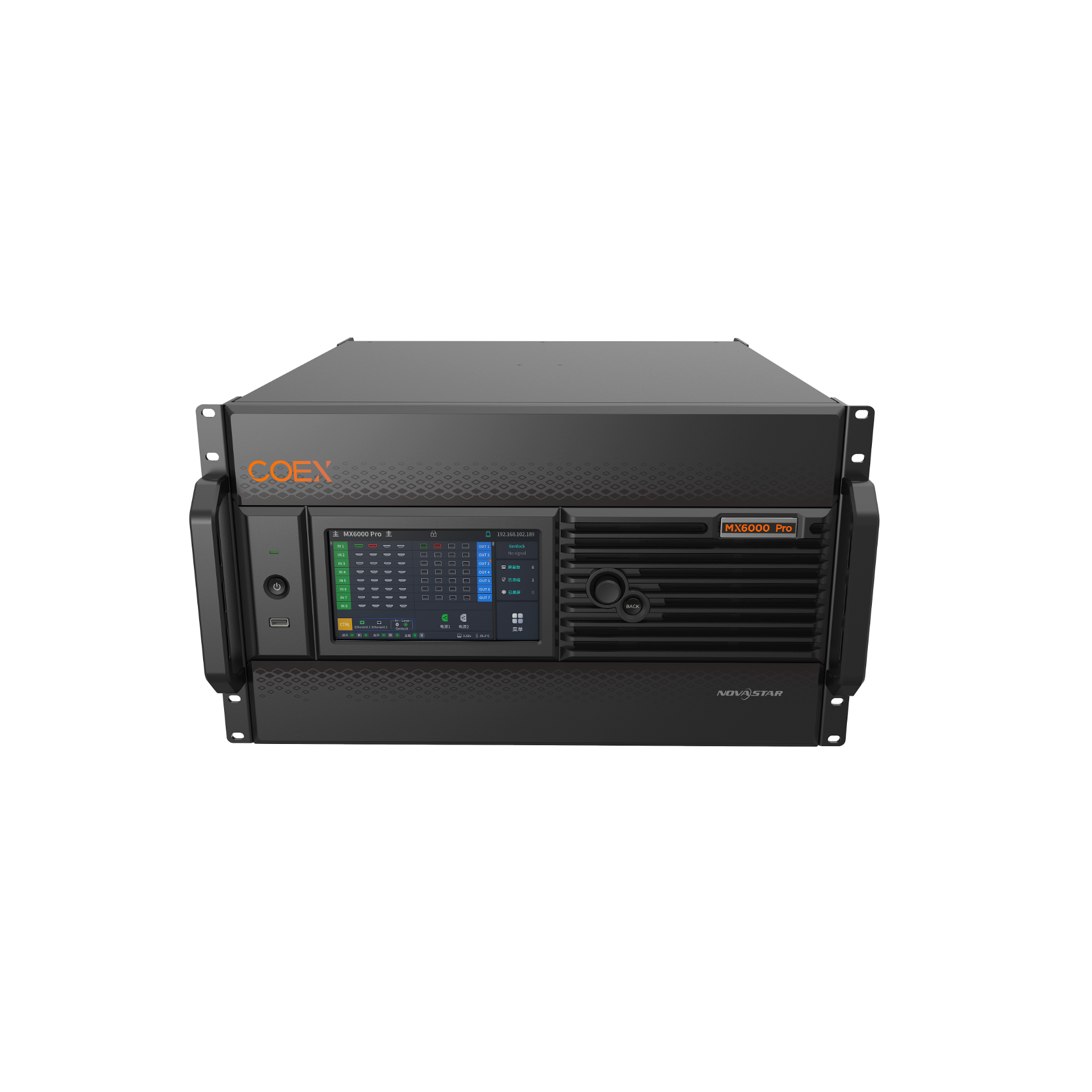

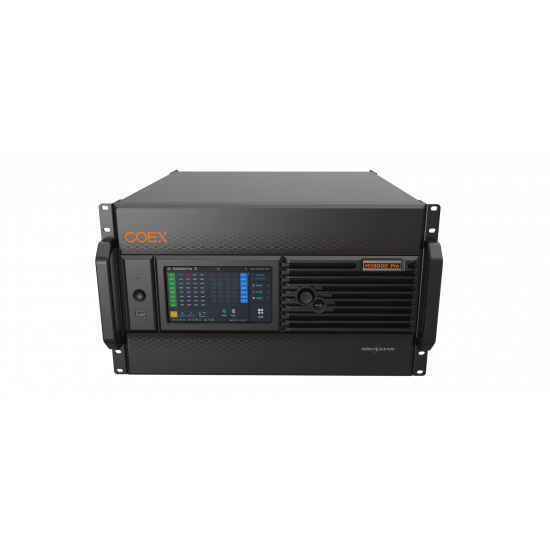

The MX6000 Pro is a large professional 8K LED display controller from Xi'an NovaStar Tech Co., Ltd. (hereinafter
referred to as NovaStar), designed as part of the COEX control system series. Its remarkable features include 12-bit
color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing
precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based modular design is
specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable
and easy to maintain. With a compact 6U size, it supports up to 32x 4K or 8x 8K video inputs, with a maximum load
capacity of 141 million pixels, making it ideal for large-screen configurations.

The MX6000 Pro offers a wide range of options with up to six different input cards supporting 8K, 4K, and VoIP. For
output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements. Additionally, it
supports seamless backup and automatic switching between devices and cards. In case of any malfunction, it
promptly switches over while issuing automatic alerts, ensuring stable output on-site. To further enhance the user
experience, it is complemented by the advanced control software, VMP, enabling users to have better control and
management capabilities.

The MX6000 Pro offers many advantages such as highly integrated design, premium image quality, powerful
performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP
studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application
scenarios.

Features:

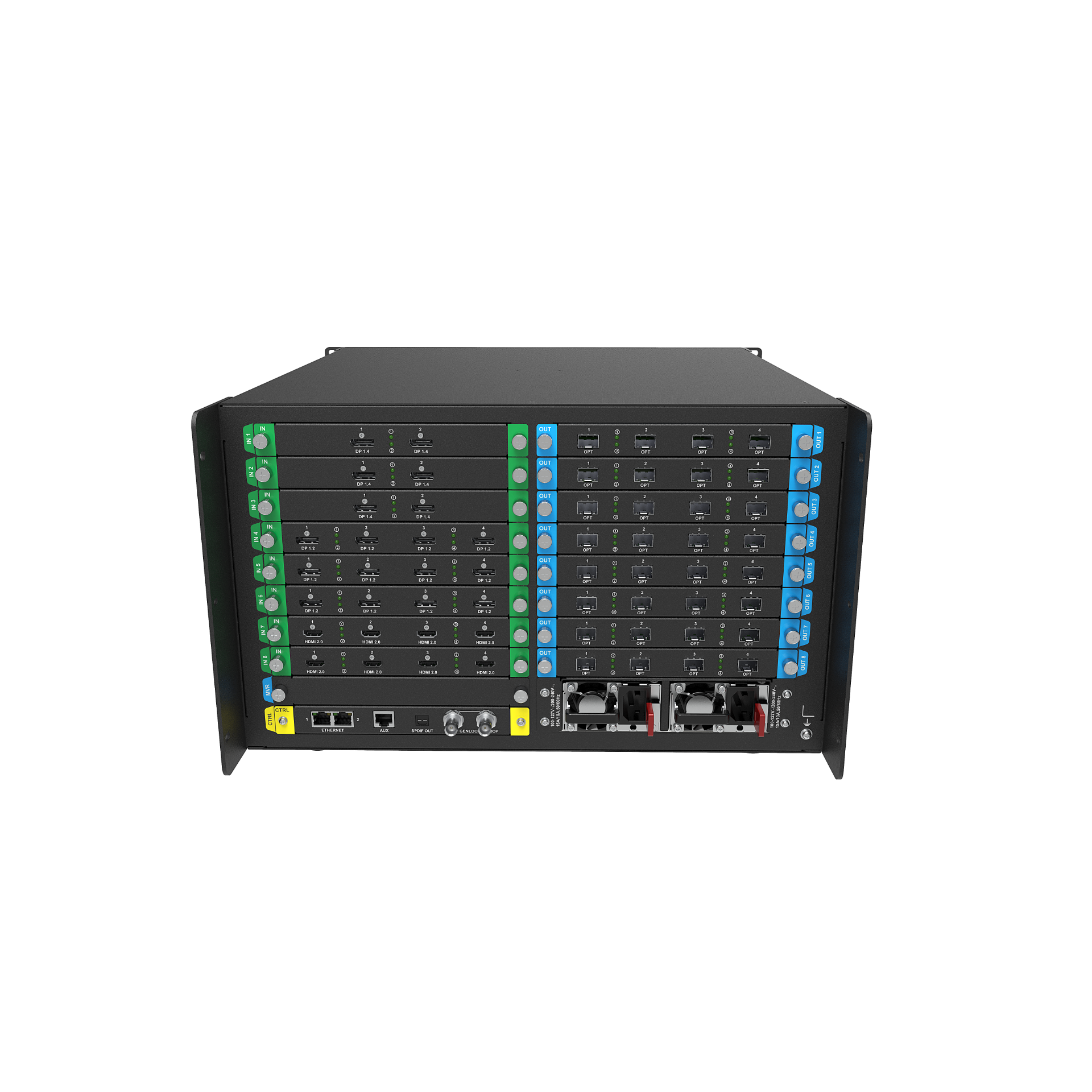

• 8x input card slots and 8x output card slots
• Supports real-time previewing and monitoring of the video source input and LED screen display status
• Supports frame rates of up to 360 Hz (max frame rate is decided by the screen's hardware configuration)

Electrical Specifications

• Power supply: 100-127V~/200-240V~,15A/10A,50/60Hz
• Power Consumption: 625 W

Operating Environment

• Temperature: –10°C to +45°C
• Humidity 0% RH to 80% RH, non-condensing

Storage Environment

• Temperature: –10°C to +60°C
• Humidity: 0% RH to 90% RH, non-condensing

Physical Specifications

• Dimensions: 482.6 mm x282.9 mm x538.8 mm (Height includes foot pads)
• Net weight: 31 kg (without cards)

Packing Information

• Packing box: 725.0mm × 635.0mm × 410.0mm, kraft paper box
• Accessories

  • 1x Power cord, 1x Ethernet cable

  • 1x Quick Start Guide, 1x Customer Letter, 1x Safety Manual,

  • 1x Certificate of Approval

IP Rating

• IP20 (please prevent the product from water intrusion and do not wet or wash the product)

Noise Level (typical at 25°C/77°F)

• 53 dB (A)
