NovaStar - MX2000 Pro Mainframe

NovaStar - MX2000 Pro Mainframe

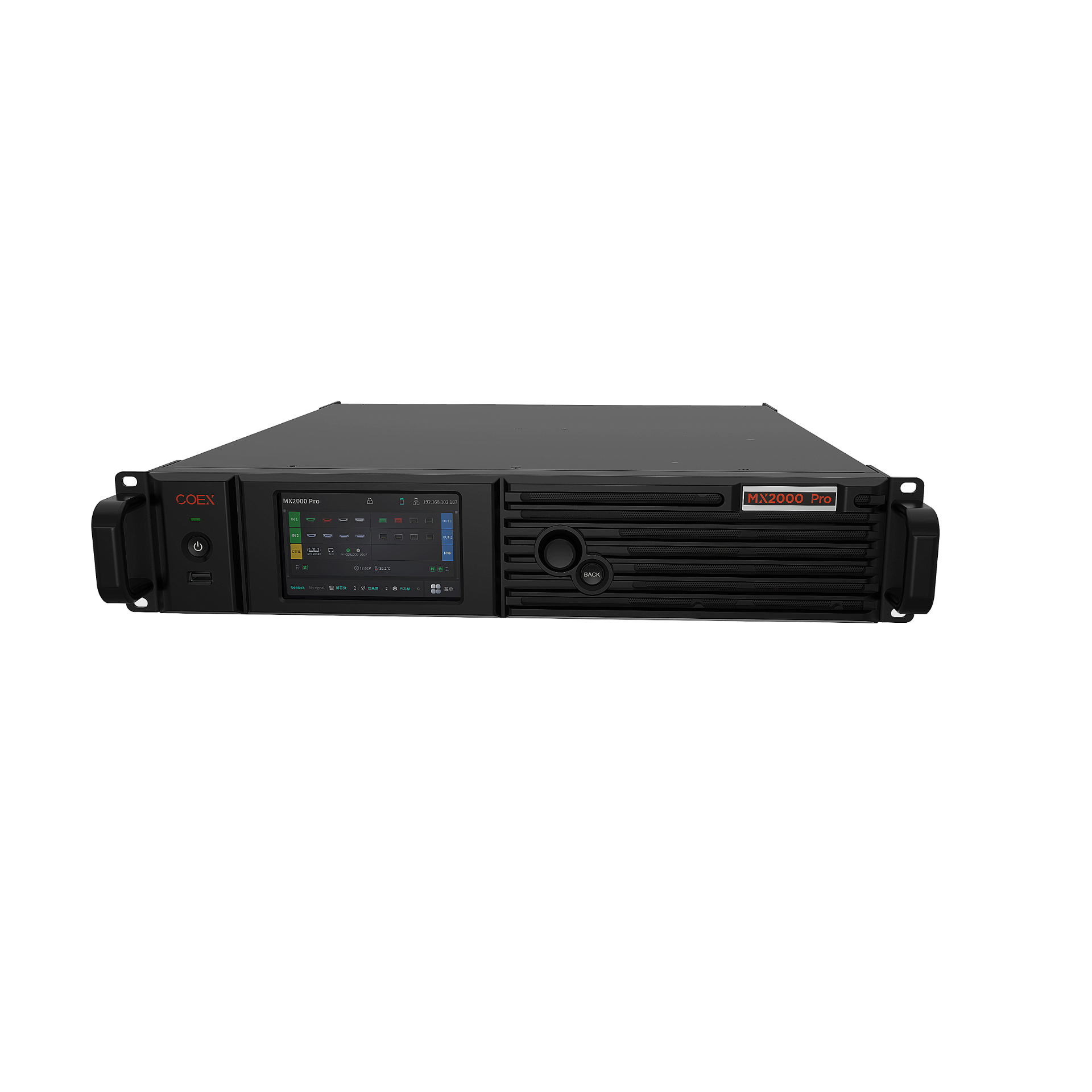

The MX2000 Pro is a large professional 8K LED display controller from Xi'an NovaStar Tech Co.,Ltd. (hereinafter referred to as NovaStar), designed as part of the COEX control system series. Itsremarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling,0-frame latency, and HDR supportability, providing precise brightness control, true-to-life colorfidelity, and an excellent image quality. Its card-based modular design is specifically tailored forfuture LED displays, allowing for flexible input and output card configurations that are stable andeasy to maintain. With a compact 2U size, it supports up to 8x 4K or 4x 8K video inputs, with amaximum load capacity of 35.38 million pixels, making it ideal for large-screen configurations.

The MX2000 Pro supports up to 5 types of 8K/4K input cards. Additionally, it supports seamlessbackup and automatic switching between devices and cards. In case of any malfunction, itpromptly switches over while issuing automatic alerts, ensuring stable output on-site. It can alsowork with the brand-new software VMP (Vision Management Platform) to provide a betteroperation and control experience.

The MX2000 Pro offers many advantages such as highly integrated design, premium imagequality, powerful performance, tremendous load capacity, and easy control. It is widely used inrental services for large events, xR/VP studios, large fixed installation applications, TV production,e-sports events, exhibition halls, and other application scenarios.

Features:

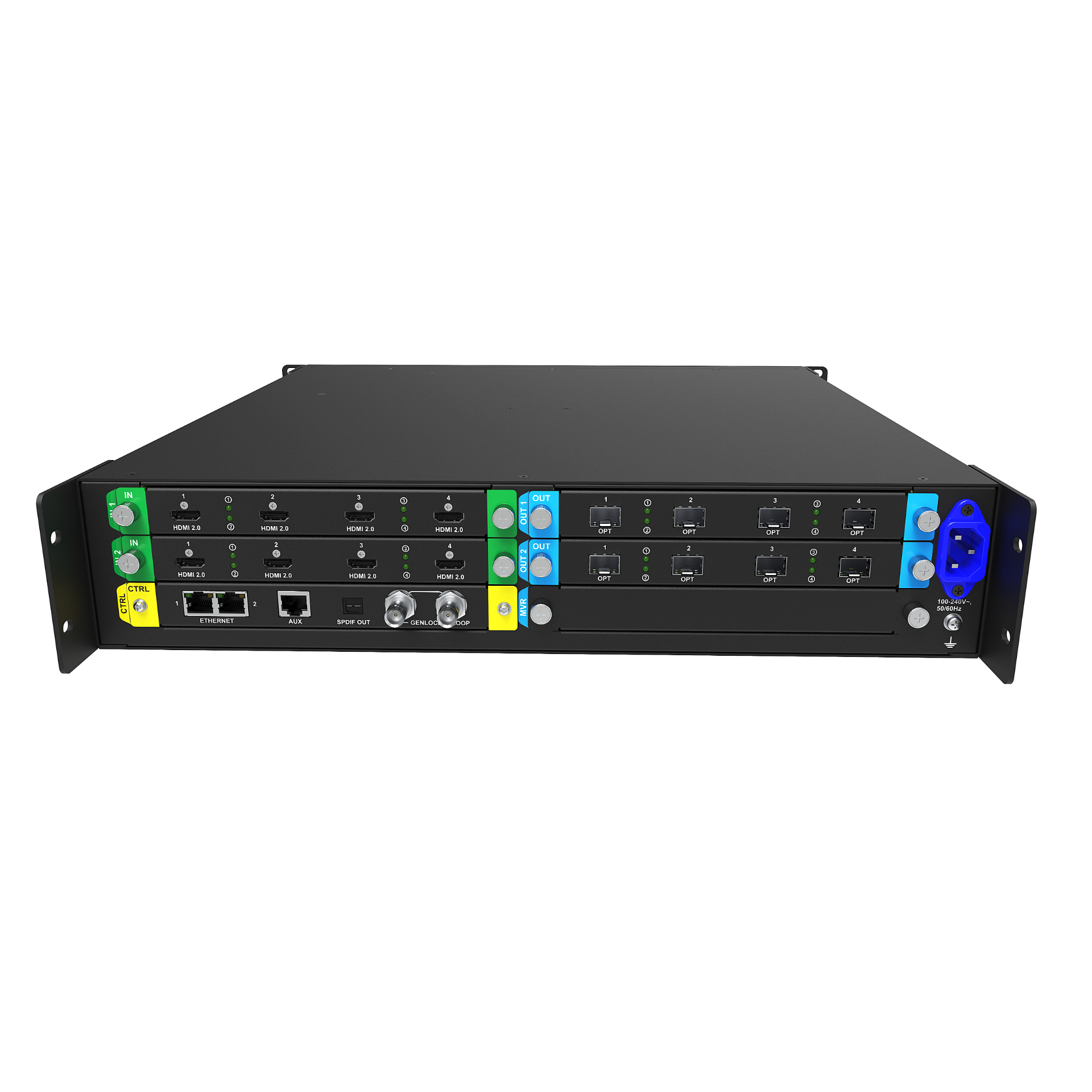

• 2x input card slots and 2x output card slots
• Supports real-time previewing and monitoring of the video source input and LED screen display status
• Supports frame rates of up to 360 Hz (max frame rate is decided by the screen's hardware configuration)

Electrical Specifications

• Power supply: 100-127V~/200-240V~,15A/10A,50/60Hz
• Power Consumption: 260 W

Operating Environment

• Temperature: 0°C to +45°C
• Humidity 0% RH to 80% RH, non-condensing

Storage Environment

• Temperature: -10°C to +60°
• Humidity: 0% RH to 95% RH, non-condensing

Physical Specifications

• Dimensions:482.6 mm × 94.6 mm × 529.7 mm (foot pad included)
• Standard weight (1x control card, 1x input card, 1x output
  card)
  • Net weight: 12.0 kg
  • Total weight: 12.5 kg
• Fully installed weight (1x control card, 2x input cards, 2x
  output cards)
  • Net weight: 13.0 kg
  • Total weight: 13.5 kg
• Packing box: 660.0 mm × 570.0 mm × 210.0 mm, kraft paper box
• Accessories: 1x Power cord, 1x Ethernet cable, 1x Quick Start Guide, 1x Customer Letter, 1x Safety Manual, 1x Certificate of Approval

Packing Information

• Packing box: 725.0mm × 635.0mm × 410.0mm, kraft paper box
• Accessories

  • 1x Power cord, 1x Ethernet cable
  • 1x Quick Start Guide, 1x Customer Letter, 1x Safety Manual,
  • 1x Certificate of Approval

IP Rating

• IP20 (please prevent the product from water intrusion and do not wet or
  wash the product)

Noise Level (typical at 25°C/77°F)

• 53 dB (A)
