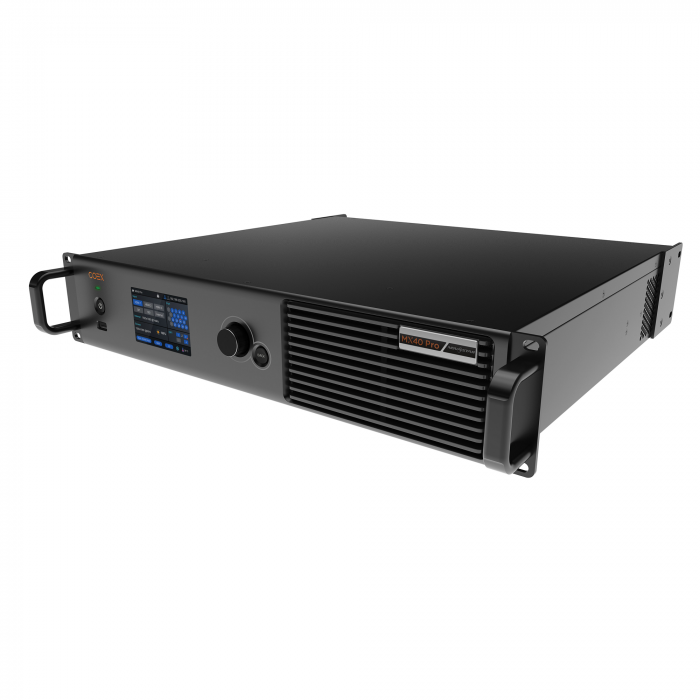

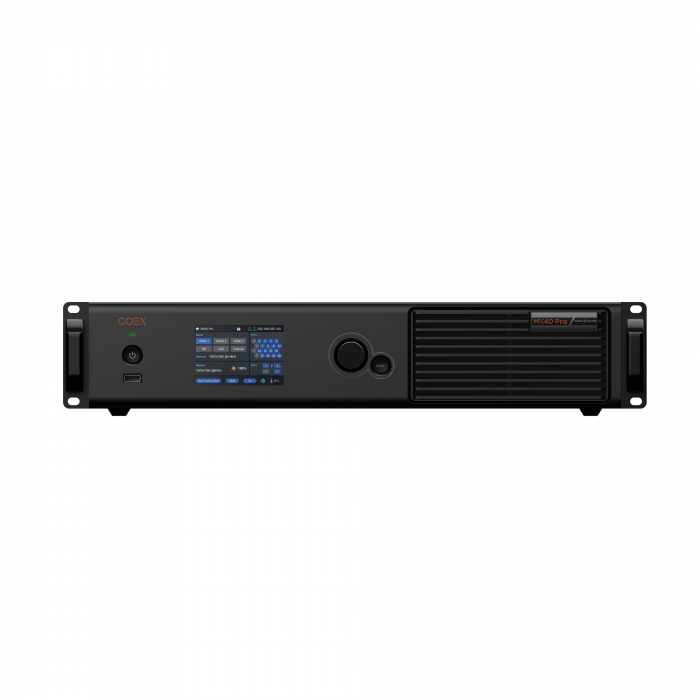

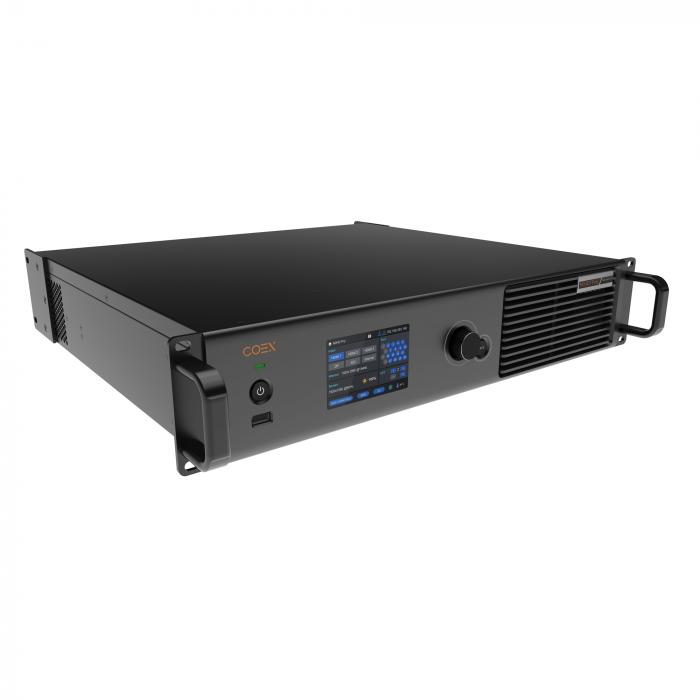

NovaStar - MX40 Pro
The MX40 Pro is NovaStar's latest flagship 4K LED controller from the COEX series. The device has numerous video inputs and a total of 20 LED outputs.
In conjunction with NovaStar's new VMP software (Vision Management Platform), the user is offered simple operation with extensive functions.
Features
Inputs:
- 3x HDMI 2.0 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x DP 1.2 (max. 4096×2160@60Hz or 8192×1080@60Hz)
- 1x 12G-SDI (max. 4096×2160@60Hz), supports ST-2082, ST-2081, ST-424 & ST-292

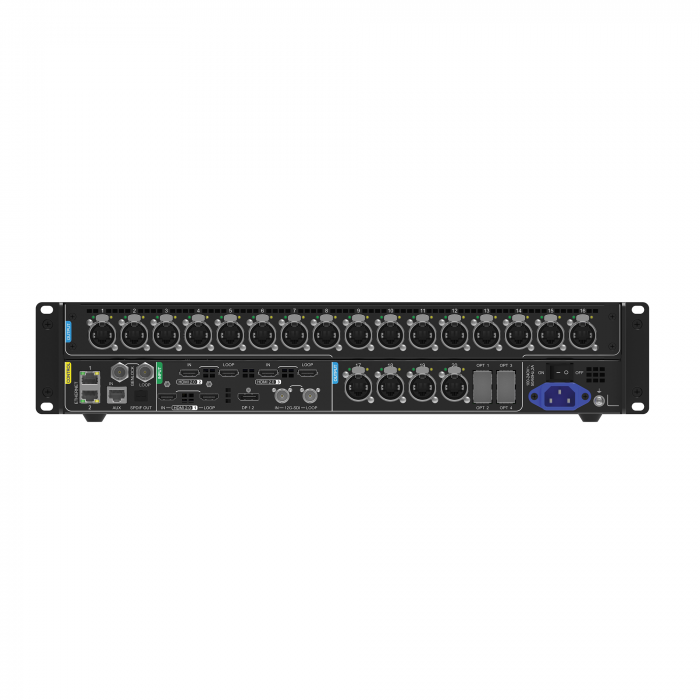

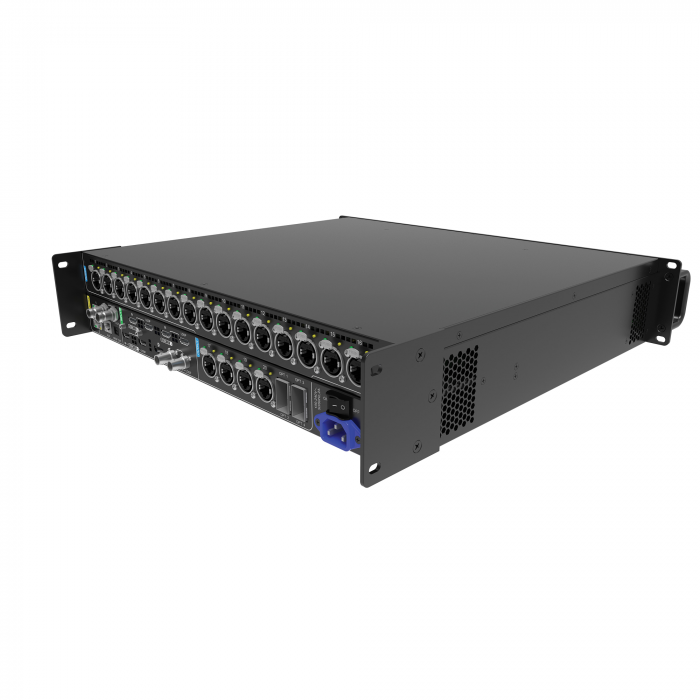

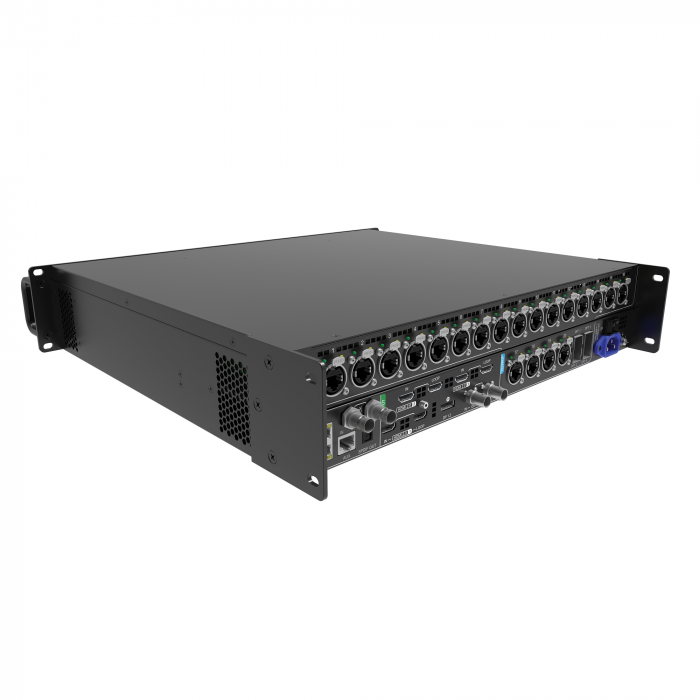

Outputs:
- 20x LED-Out (RJ45):
- 8Bit@60Hz: 650,000 pixels
- 10Bit@60Hz: 480.00 Pixel (Only in combination with A10s Pro Receiving card)
- 10/12bit@60Hz: 325,000 pixels
- 3x HDMI 2.0 Loop
- 1x 12G-SDI Loop
- 4x OPT-Out (10G)
Further features:
- Genlock
- Color Processing: Color Replacement, Color Correction, 3D LUTs, Color Curves
- Dynamic Booster
- Grayscale calibration
- Brightness & Chroma Calibration
- HDR10
- low latency
- 3D capable
- integrated network switch for cascading multiple devices
General specifications:
- Supply voltage: AC 100-240V, 50/60HZ
- Dimensions: 482.6 x 467.0 x 94.2mm (WxDxH)
- Power consumption: 70Watt
- Weight: 7.5kg
Optical
- SFP Slot Type: 10G
- SFP Slot Quantity: 4
Software Specifications
Extra Features
- Scaling Function: Yes
- GenLock: In & Out
Control and Programming
- Display: TFT
- Control System: Novastar
- Maximum Loading Capacity: 13 Mpx
- Maximum Input Resolution: 4096 x 2160, 8192 x 1080
- Control Options: Ethernet
- Greyscale Processing: 22 bit
Electrical Specifications and Connections
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 70 W
- Power Connector In: IEC
- Data Connector In: RJ45, USB
- Data Connector Out: etherCON, RJ45
Mechanical Specifications
- Width (Including Handles): 483 mm
- Width (Without Handles): 440 mm
- Height (Including Handles): 94 mm
- Height (Without Handles): 88 mm
- Depth (Including Handles): 467 mm
- Depth (Without Handles): 437 mm
- Weight: 7.5 kg
- Rack Units: 2 U
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Black
Product Properties
Thermal Specifications
- Maximum Ambient Temperature: 60 °C
- Minimum Ambient Temperature: -20 °C
- Operating Humidity: 0-95 %rH
