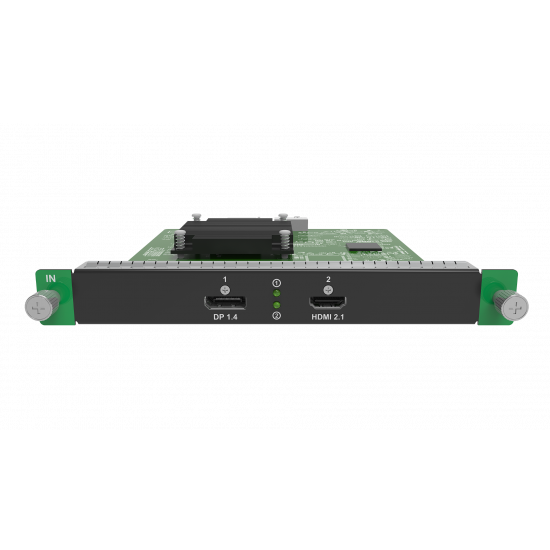

NovaStar | MX_1xDP1.4+1xHDMI2.1 input card
NovaStar | MX_1xDP1.4+1xHDMI2.1 input card

NovaStar | MX_1xDP1.4+1xHDMI2.1 input card

Price on Request
Delivery:
Ca. 2 weeks*
Art. code
NS-65.0070
  • DP1.4
    • Qty: 1
    • Resolution Max resolution: 7680×4320@30Hz (Forced)
    • Min resolution: 800×600@60Hz
    • Max width/height (Forced)
      • Max width: 8192 pixels (8192×4320@25Hz)
      • Max height: 8192 pixels (4320×8192@25Hz)
    • Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
    • HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
    • EDID management Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
    • HDCP HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3.
    • Interlaced signal inputs Not supported.
    • Cables Recommend using the UGREEN DP 1.4 cable. Cables up to 5 meters are supported.
  • HDMI 2.1
    • Qty: 1
    • Resolution Max resolution: 8192×4320@30Hz (Forced)
    • Min resolution: 800×600@60Hz
    • Max width/height (Forced)
      • Max width: 8192 pixels (8192×4320@30Hz)
      • Max. height: 8192 pixels (4320×8192@30Hz)
    • Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 71.93 / 72 / 75 / 100 / 119.88 / 120 / 143.86 / 144 / 240 Hz
    • HDR Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards. Support HLG.
    • EDID management Support standard resolutions, up to 3840×2160@60Hz. Support custom input resolutions.
    • HDCP HDCP 2.3 compliant, backwards compatible with HDCP 2.2/HDCP 1.4/HDCP 1.3.
    • Interlaced signal inputs Not supported.
    • Cables Recommend using the UGREEN HDMI 2.1 cable. Cables up to 5 meters are supported.
More Information
Brand NovaStar
