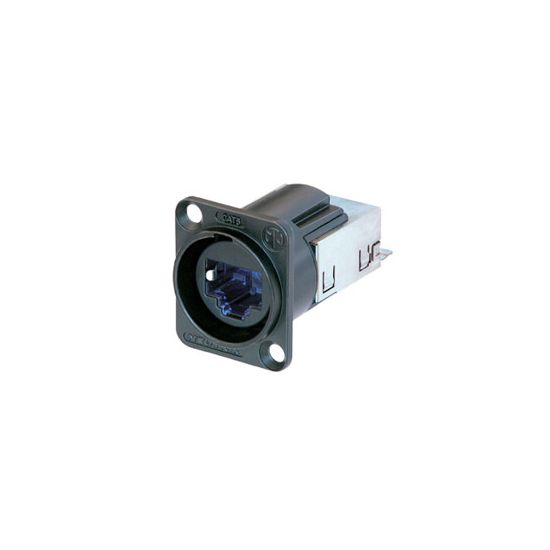

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors.
Not compatible with the etherCON cable connector carriers NE8MC*, NE8MX* and the CAT6A cable connectors NE8MX6*.

Features

• CAT6 compliant - data rate up to 10 GBit/s
• CAT6 performance - fast data transmission and high bandwidth applications
• IP65 - Dust and waterproof in mated condition
• Shielded system - high noise immunity and EMI protection
• Push Pull mating - secure and proven locking system
• Ground lead jumper on panel connector with selectable grounding option
• Gas-tight IDC termination without tool
• CAT6 / Class EA according to TIA/EIA 568C and ISO/IEC 11801
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt

• Product: NE8FDY-C6-B
• Gender: female

Electrical

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequencyrange: 1 - 250 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT6A acc. to TIA/EIA 568C channel specifications
• CLASS EA acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Mechanical

• Insertion force: ≤ 40 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 3 mm, 0.12''
• Wiresize: solid: 0.205 - 0.324 mm² (AWG 24 – AWG 22)
• Wiresize: stranded: 0.141 – 0.355 mm² (AWG 26/7 – AWG 22/7)
• Locking device: Push-Pull
• Chassis shape: D

Material

• Contact plating: 0.7 µm Au over 1.2 µm Ni plating
• Contacts: Bronze (CuSn8)
• Insert: Polycarbonate
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black KTL
• Strain relief: Stainless steel

Environmental

• Flammability: UL 94 HB
• Protection class: IP 65
• Temperature range: -10 °C to +60 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• IEC 60603-7-3 Ed.2.0 (2010-04)
• IEC 60512-99-002 Ed.2.0 (2022-01)
• IEC 60512-9-3 (2011-06)
