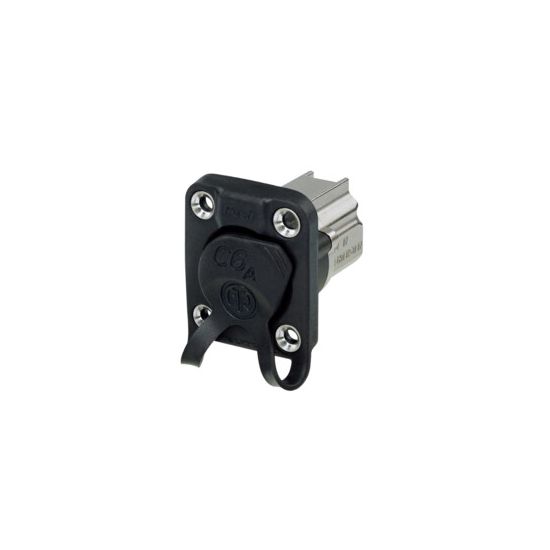

Neutrik | NE8FDX-Y6-W - EtherCON CAT6A IDC chassis conn IP65

Neutrik | NE8FDX-Y6-W

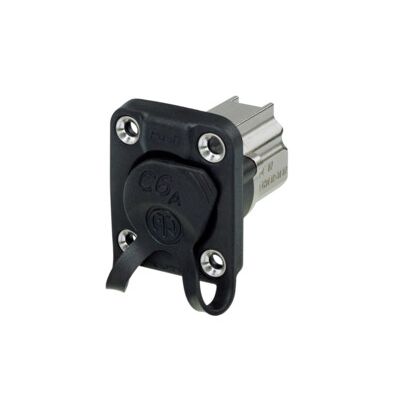

D-shape CAT6A panel connector, shielded, IDC termination with rubber sealing, IP65 when mated, black housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features

• Ruggedized connector withCAT6e / Class EA according to TIA/EIA 568C and ISO/IEC 11801
• PoE type 3 class 6 (60W) acc. IEEE 802.3bt
• Rugged latch lock system million fold proven
• IP65 ingress protection in mated condition and unmated when sealing cap is closed
• Intermateable with the existing etherCON CAT5 range
• Shielded system - high noise immunity and EMI protection

• Product: NE8FDX-Y6-W
• Gender: Female

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT6A acc. to TIA/EIA 568C channel specifications
• Transmission performance: CLASS EA acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 3 class 6 (60W) acc. IEEE 802.3bt

• Lifetime: > 1000 mating cycles
• Wiresize (solid): AWG 26/1 - AWG 22/1
• Wiresize (stranded): AWG 26/7 - AWG 22/7
• Locking device: Latch lock
• Mounting direction: Front mounting
• Insulation diameter: 0.85 - 1.6 mm

• Contact plating: Au
• Gasket: Rubber (EPDM)
• Shell: Zinc diecast (ZnAl4Cu1)

• Flammability: UL 94 V-0
• Railway standard: EN 45545 R26
• Protection class: IP 65
• Temperature range: -40 °C to +70 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• Standard compliance: IEC 60603-7-3 Ed.2.0 (2010-04)
• Standard compliance: IEC 60512-99-002 Ed.2.0 (2022-01)
• Standard compliance: IEC 60512-9-3 (2011-06)
• Standard compliance: EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
